Description

Application Scenarios

Consider a high-rise office building,where hundreds of people rely on elevators daily.The smooth,precise,and safe operation of these elevators is paramount,directly impacting occupant convenience,building efficiency,and safety.At the heart of many of these advanced elevator systems are robust DC drives like the Magnetek DSD-412,which provide the nuanced control over the DC motor’s speed,acceleration,deceleration,and torque.If a critical internal control board,such as the Magnetek 46S03594-0010 Rev 3 DSD-412,malfunctions,the elevator could experience jerky movements,inaccurate leveling,or complete operational failure,leading to passenger inconvenience,safety concerns,and costly service disruptions.This board directly addresses the need for precise and reliable control within these sophisticated drive systems.Its proper functioning ensures”bumpless”transfers between motoring and regenerating,smooth floor landings,and optimal ride quality,directly contributing to the safety and efficiency of vertical transportation systems by providing the intricate control logic necessary for flawless elevator operation.

Parameter

Main Parameters

Value/Description

Product Model

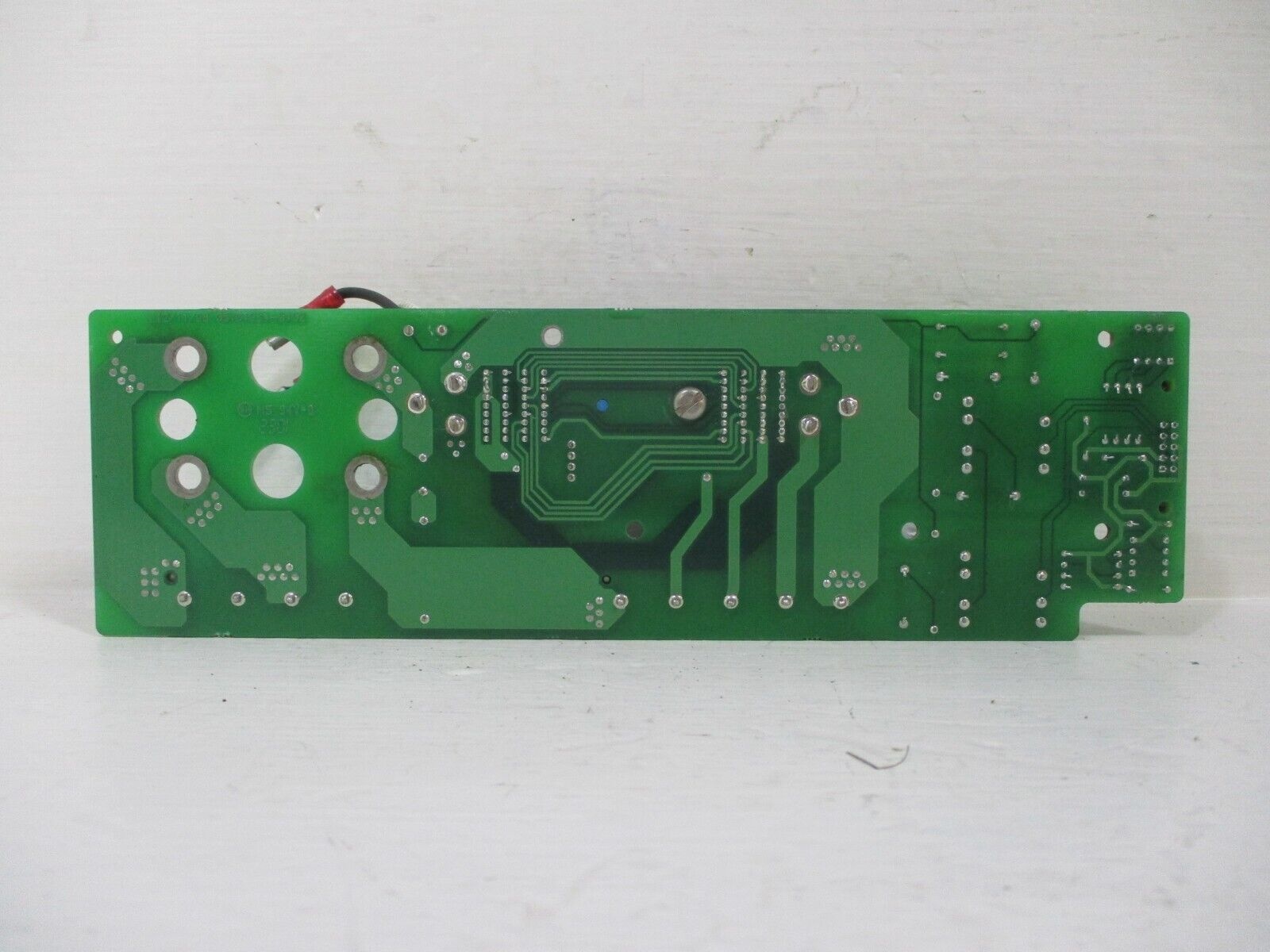

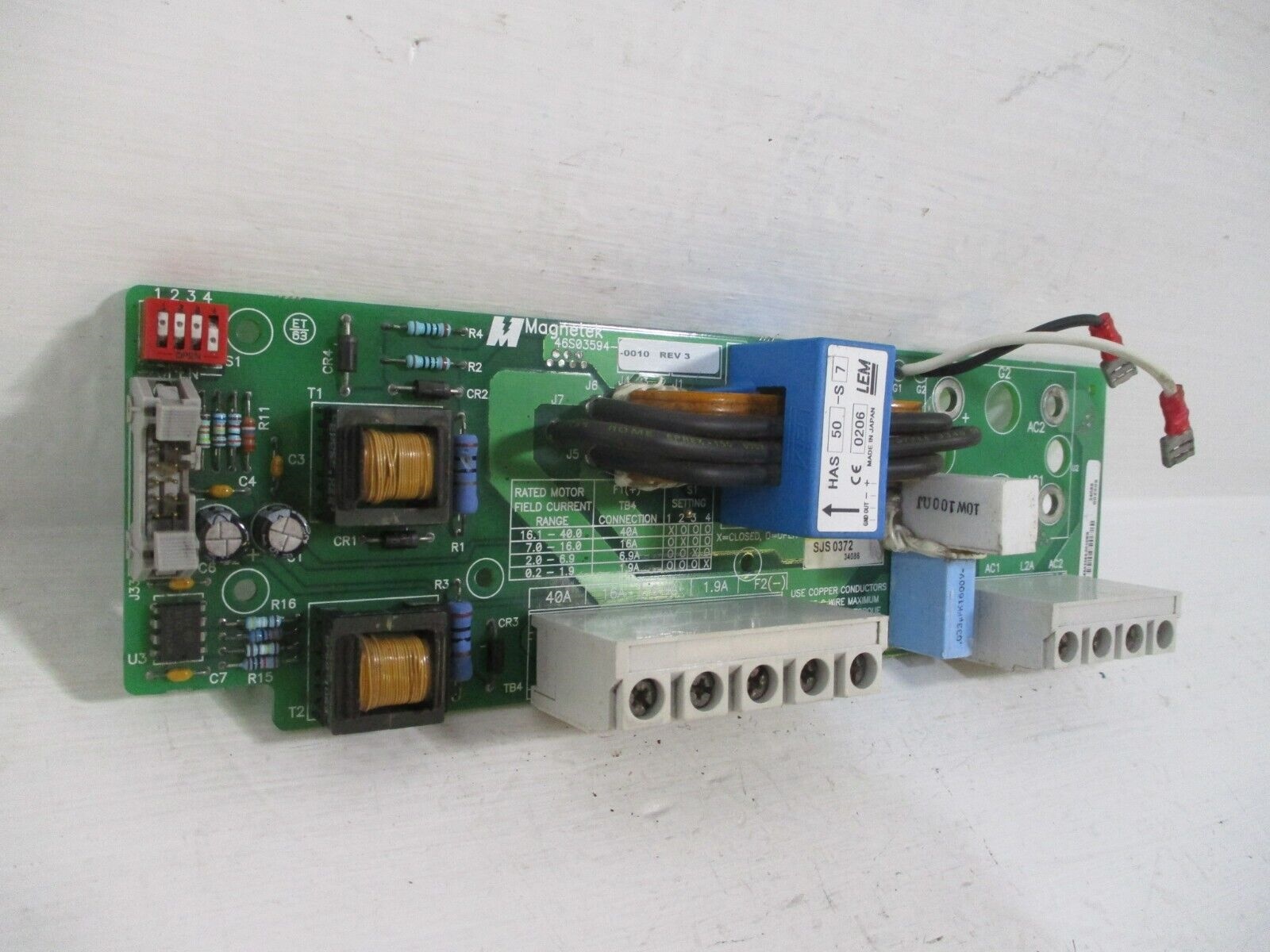

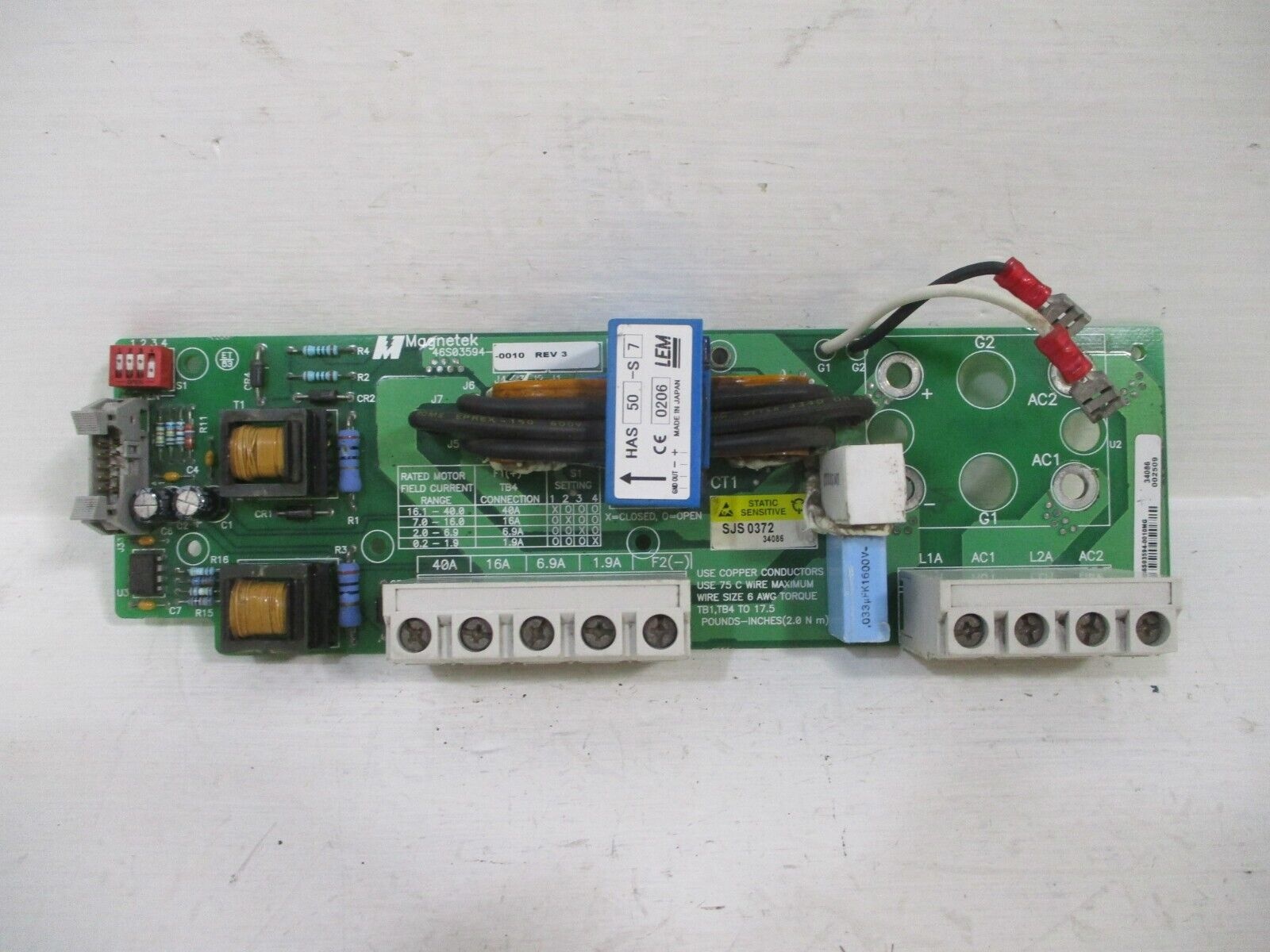

46S03594-0010 Rev 3 DSD-412

Manufacturer

Magnetek(a Columbus McKinnon company)

Product Category

DC Drive Control Board/Field Control PCB

Compatibility

Specifically designed for Magnetek DSD-412 DC Elevator Drives

Board Type

Logic Control Board(likely related to motor field control)

Revision

Rev 3(Indicates specific design iteration for improved performance or compatibility)

Interface

Typically connects via backplane or ribbon cables to other drive modules

Installation Method

Plugs into designated slot within the DSD-412 drive chassis

Function

Processes control signals,manages motor field current,contributes to speed/torque regulation

Operational Environment

Designed for industrial control panel environments(controlled temperature/humidity)

Diagnostics

May feature onboard LEDs for status indication or basic diagnostics

Export to Sheets

Technical Principles and Innovative Values

The Magnetek 46S03594-0010 Rev 3 DSD-412 board represents a sophisticated blend of digital and analog control,crucial for the precise operation of high-performance DC drives.Its core technical principles and innovations for its era include:

Digital Control Precision:As part of the DSD-412(Digital Static Drive)series,this board leverages digital signal processing to achieve superior control accuracy over traditional analog DC drives.This means greater precision in motor speed regulation,improved torque response,and consistent performance across varying loads and environmental conditions.The digital nature minimizes drift and requires fewer manual adjustments compared to older systems.

Integrated Field Control Logic:The”Field Control”aspect of this board suggests it plays a direct role in managing the DC motor’s field current.By precisely regulating the motor’s field,the Magnetek 46S03594-0010 Rev 3 DSD-412 helps to optimize motor performance across its entire speed range,especially important for field weakening operations at higher speeds.This intelligent control contributes to energy efficiency and dynamic response.

Enhanced Drive Stability and Smoothness:In elevator applications,ride quality is paramount.This board contributes to the DSD-412’s ability to provide”bumpless”torque transfer between motoring and regenerating modes,even with balanced loads.This is achieved through advanced control algorithms implemented by the board,ensuring ultra-smooth acceleration,deceleration,and landing accuracy,significantly enhancing passenger comfort and safety.

Robust Industrial Design:Despite its intricate electronic components,the Magnetek 46S03594-0010 Rev 3 DSD-412 is built to withstand the demanding conditions of industrial environments,including temperature variations,electrical noise,and vibrations typical of machine rooms.The revision status(Rev 3)indicates continuous improvement,suggesting refinements for enhanced stability,reliability,and possibly compatibility with evolving system requirements.

Simplified Commissioning via Digital Settings:Unlike older analog drives that required numerous potentiometers and manual tuning,the digital nature enabled by boards like the Magnetek 46S03594-0010 Rev 3 DSD-412 allows for faster and more precise setup through software parameters.This significantly reduces commissioning time and ensures immediate motor/drive compatibility,which is vital for modernization projects where rapid deployment is crucial.

Application Cases and Industry Value

Case 1:High-Speed Elevator Modernization in a Commercial Tower

A prominent commercial high-rise building faced increasing maintenance issues and ride quality complaints with its aging analog DC elevator drives.Modernizing to new AC systems was cost-prohibitive and time-consuming.The solution involved upgrading the existing DC motors with Magnetek DSD-412 drives,specifically utilizing replacement or upgraded Magnetek 46S03594-0010 Rev 3 DSD-412 boards for the control logic.This”digital retrofit”significantly improved elevator ride quality,eliminated jerky movements,and achieved precise floor leveling,meeting modern comfort and safety standards without a complete overhaul.The digital control of the Magnetek 46S03594-0010 Rev 3 DSD-412 also allowed for more efficient power regeneration during deceleration,leading to measurable energy savings and extending the overall lifespan of the existing DC motors,providing a cost-effective and high-performance modernization solution.

Case 2:Industrial Gantry Crane Precise Positioning

In a heavy manufacturing facility,a large gantry crane used a DC drive system to precisely position multi-ton components for assembly.Over time,the drive’s responsiveness degraded,leading to overshoot and difficulty in fine positioning,increasing assembly time and risk of damage.Diagnostics revealed issues within the drive’s control section.By replacing the faulty board with a Magnetek 46S03594-0010 Rev 3 DSD-412,the crane’s drive system regained its original precision.The enhanced digital control provided by the Magnetek 46S03594-0010 Rev 3 DSD-412 restored the exact speed and torque control needed for intricate maneuvers.This resulted in reduced assembly time by 10%,minimized product damage,and significantly improved operator confidence and safety during critical lifting operations,extending the functional life of a high-value asset.

Installation,Maintenance,and Full-Cycle Support

Installation preparation:Installing the Magnetek 46S03594-0010 Rev 3 DSD-412 board requires meticulous care and adherence to safety protocols.Always ensure that the main power to the entire drive system is completely disconnected,locked out,and tagged out before beginning any work.Handle the circuit board with appropriate electrostatic discharge(ESD)precautions,such as wearing an anti-static wrist strap and working on a grounded,static-dissipative mat,as static electricity can severely damage sensitive electronic components.Carefully verify the correct slot within the DSD-412 chassis for insertion,ensuring all connectors are clean and undamaged.Cross-reference the board’s revision number(Rev 3)with your drive’s documentation to confirm compatibility and avoid potential operational issues.Following the specific instructions in the DSD-412 service manual for board replacement is crucial for successful integration and safe startup.

Maintenance suggestions:The Magnetek 46S03594-0010 Rev 3 DSD-412 is designed for robust operation,so direct maintenance on the board itself is typically limited to visual inspections.Periodically check for any visible signs of damage,burn marks,bulging capacitors,or loose connections.Ensure that the cooling airflow within the drive cabinet is unobstructed and that fans are operating effectively,as excessive heat can degrade electronic components over time.Keep the drive environment clean and free of dust or moisture buildup.Should any operational anomalies arise,consult the DSD-412 drive’s diagnostic error codes and troubleshooting guide,as often faults on this board will trigger specific alarms in the drive’s system.Given its critical role,professional diagnosis and replacement by qualified technicians are highly recommended for any suspected malfunction.

Product Assurance

At Shenzhen Changxin,we pride ourselves on being your trusted partner in industrial automation.When you choose the Magnetek 46S03594-0010 Rev 3 DSD-412 from us,you’re investing in guaranteed original manufacturer quality.We adhere to the highest standards of product verification,ensuring every unit leaving our facility meets stringent performance specifications,especially crucial for specialized circuit boards like this.Our commitment extends beyond the sale,encompassing comprehensive quality assurance and an unwavering dedication to customer satisfaction.We stand by the reliability and durability of the Magnetek 46S03594-0010 Rev 3 DSD-412 in even the most demanding industrial environments.

Our promise at Shenzhen Changxin is to provide a complete lifecycle of support for your industrial control needs.From expert guidance during product selection—particularly vital for ensuring correct revision compatibility—and detailed technical assistance for installation and commissioning,to proactive troubleshooting and efficient spare parts replacement,our seasoned engineers are at your service.We understand that minimized downtime is critical for your operations,and a functional control board like the Magnetek 46S03594-0010 Rev 3 DSD-412 is at the core of that reliability.By partnering with us,you gain access to a robust supply chain and specialized knowledge,ensuring your Magnetek 46S03594-0010 Rev 3 DSD-412 delivers consistent,high-performance results throughout its operational life.Our global service capabilities ensure seamless support,making us the reliable choice for your automation requirements,anywhere in the world.
