Description
Technical Specifications

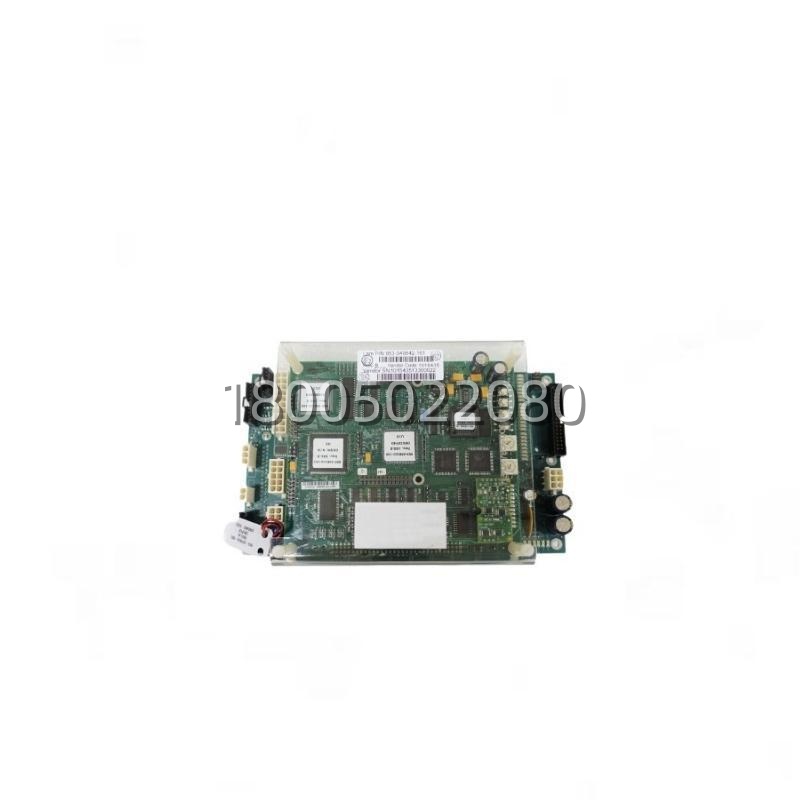

Product Model | 853-049542-161Manufacturer | Lam Research CorporationProduct Type | 24-Channel Temperature Control Assembly (ASSY TEMP CONT PCBA)Compatible Platform | Lam Research TCP 9400, TCP 9600, Exelan Series Etch SystemsNumber of Channels | 24 independent temperature control / acquisition channelsSensor Compatibility | 2-wire / 3-wire / 4-wire RTD, PT100 (100 Ω @ 0 °C nominal)Control Algorithm | Digital PID closed-loop with auto-tuning; supports heating and cooling loop controlTemperature Control Accuracy | ±0.1 °C to ±0.5 °C (process-dependent, with calibrated sensor)Acquisition Resolution | 0.01 °C equivalent (16-bit A/D conversion typical)Supply Voltage | +12 VDC (derived from chamber controller backplane)Typical Power Consumption | < 10 W (logic only; heater power switched externally)Communication Interface | Lam proprietary internal parallel/serial bus to main process controllerOperating Ambient | 0 °C to +60 °C (chamber electronics compartment rating)Physical Form Factor | Multilayer FR4 PCB with gold-finger or header connectors, ESD-protected coatingApproximate Weight | 0.85–1.0 kg
Main Features and Advantages
Multi-zone closed-loop thermal control: The Lam Research 853-049542-161 provides twenty-four fully independent PID control loops, enabling fine-grained thermal profiling across multiple zones of an electrostatic chuck or chamber liner. This multi-point control capability is fundamental to maintaining uniform wafer temperature across the entire 300 mm substrate, directly impacting critical dimension (CD) uniformity in deep sub-micron etch processes.Process-grade measurement precision: With support for 3-wire and 4-wire RTD compensation and 16-bit resolution analog front ends, the Lam Research 853-049542-161 achieves acquisition accuracy suitable for sub-±0.5 °C process stability. Low-drift reference circuitry ensures that temperature setpoints remain stable over extended production runs, reducing the need for frequent recalibration.Integrated heating and cooling loop support: The PID engine on the Lam Research 853-049542-161 can drive both heating power stages (via SSR or proportional voltage outputs to heater banks) and cooling control elements (via dry contact or analog signals to chiller/coolant valve actuators). This bidirectional thermal servo capability allows the chamber to track complex temperature ramps specified in advanced etch recipes.Seamless host system integration: As an OEM-designed chamber sub-board, the Lam Research 853-049542-161 communicates natively with the Lam process controller over the established equipment bus. No external gateway or protocol converter is required—temperature readings, fault status, and setpoint updates are handled transparently within the tool’s software architecture, preserving full diagnostic visibility from the etch system HMI.Industrial-grade semiconductor fab construction: The PCB is built to Lam Research’s internal qualification standards for cleanroom-rated electronic assemblies, with conformal coating options on production versions, gold-plated edge contacts for corrosion resistance, and EMI suppression components to withstand the RF noise generated by the TCP inductive coil and bias RF generators in the etch chamber.Legacy system life-cycle support: For fabs operating mature Lam platforms beyond the OEM’s active support window, the availability of tested Lam Research 853-049542-161 replacements is critical to avoiding full-chamber or full-tool retirement. Cross-compatible revisions (-170/-171/-173/-174) offer flexibility when exact revision matching is constrained by supply, provided the board ID and firmware are verified against the tool configuration.
Application Field
The Lam Research 853-049542-161 is deployed exclusively inside Lam Research plasma etch cluster tools—most notably the TCP 9400, TCP 9600, and certain Exelan platform variants—where it serves as the temperature regulation brain for the process module’s thermal management subsystem. In a typical dielectric or polysilicon etch application, the electrostatic chuck beneath the silicon wafer is divided into concentric or sector-based heating zones, each monitored by an RTD sensor cabled back to the Lam Research 853-049542-161. The assembly continuously compares sensor feedback against the recipe-defined setpoint and adjusts heater duty cycles or cooling flow to hold the wafer at the target temperature (commonly 20 °C to 80 °C for standard oxide/nitride etch, and up to 150 °C–250 °C for certain advanced polymer strip or selective etch processes).Precise temperature control via the Lam Research 853-049542-161 directly influences etch rate, selectivity, and feature profile. Even a ±1 °C deviation across the wafer can cause measurable CD variation, especially at 130 nm nodes and below. By maintaining tight zone-to-zone thermal balance, the Lam Research 853-049542-161 helps fabs sustain high yield and reduce within-wafer non-uniformity. The module also monitors for sensor open-circuit, overtemperature, and control-loop saturation conditions, reporting faults to the main controller so that the tool can safely transition to idle or abort the process if thermal control is compromised.Outside the ESC, the Lam Research 853-049542-161 may also manage chamber wall or showerhead temperature zones in tools equipped with dual-thermal-loop configurations. For maintenance and engineering teams responsible for sustaining Lam etch fleets in high-volume manufacturing (HVM) fabs, keeping a verified spare Lam Research 853-049542-161 on the shelf is a standard practice to minimize mean-time-to-repair (MTTR) during unplanned temperature-control faults.
Related Products
853-049542-170 — Later revision of the same 24-channel temperature control assembly; functionally similar to the 853-049542-161 but may differ in firmware version or minor component updates. Verify board ID compatibility before substitution.853-049542-171 — Alternate revision 24-CH temp controller PCB for Lam TCP etch chambers; often interchangeable with the 853-049542-161 after confirming jumper/config EEPROM match.853-049542-173 — Another variant in the 853-049542-x6x family; used in specific Exelan or 9600 chamber configurations alongside the 853-049542-161.853-049542-174 — Highest-numbered known revision of this temp control assy; may supersede the 853-049542-161 in later-production tools but requires firmware validation.853-013707-001 — Lam Research chamber I/O interface board often paired with the temperature control assembly in TCP 9400 systems; handles digital/analog I/O distribution for the same process module.710-036828-001 — Lam process controller CPU/module that communicates with the 853-049542-161 via the internal chamber bus in TCP-series etch tools.650-018666-001 — Electrostatic chuck (ESC) RTD temperature sensor harness/connector set used to link the wafer chuck RTDs to the 853-049542-161 input headers.
Installation and Maintenance
Pre-installation preparation: Prior to installing the Lam Research 853-049542-161, ensure the etch chamber electronics drawer or controller chassis is fully de-energized and the system has been placed in a safe lockout/tagout state per fab ESD and safety protocols. Visually inspect the Lam Research 853-049542-161 PCB for any signs of transport damage, bent pins, or oxidized connector contacts; clean gently with approved isopropyl alcohol if needed. Verify that the board revision and EEPROM/ID PROM match the expected value for the specific chamber type (compare with the removed unit or consult the tool’s parts compatibility list). Disconnect all RTD and heater interface cables from the old assembly before unbolting it, then seat the Lam Research 853-049542-161 firmly into its mounting locations or card guides, reconnect all sensor and power cables observing correct pin orientation, and confirm that the gold-finger or header engagement is fully seated.Maintenance recommendations: The Lam Research 853-049542-161 contains no user-serviceable components and should never be probed while the chamber HV/RF systems are active. Routine preventive maintenance includes verifying that RTD sensor resistances read within expected ranges (≈100 Ω at 0 °C for PT100) during PM windows, checking that cable harnesses to the ESC show no insulation degradation from prolonged thermal cycling, and ensuring the controller drawer cooling fans are operational so the Lam Research 853-049542-161 operates within its specified ambient range. If the etch system logs repeated “Temp Zone Fault,” “Open RTD,” or “Temp Ctrl Saturated” alarms tracing to a specific channel, first verify the sensor and wiring before suspecting the Lam Research 853-049542-161 itself; if sensor loops are confirmed good, swap the Lam Research 853-049542-161 with a known-good spare to isolate the fault. Store unused spares in anti-static shielding bags in a low-humidity environment.
Product Guarantee
Every Lam Research 853-049542-161 Temperature Control Assembly we supply is subjected to comprehensive functional testing on a simulated load bank or certified Lam-compatible test fixture, including verification of all 24 channel PID loops, RTD readback accuracy, and bus communication handshake with the host emulator. Units are graded as new old stock (NOS) or professionally refurbished with cleaned connectors and replaced electrolytic components where applicable. Each Lam Research 853-049542-161 is backed by a warranty covering defects in materials and workmanship under normal semiconductor fab use. Our technical support team assists with cross-revision compatibility checks, board ID verification against your specific Lam tool configuration, and basic commissioning guidance to ensure proper integration. We stand behind the quality and functionality of every Lam Research 853-049542-161 we deliver, helping extend the productive life of your Lam Research etch fleet and minimize costly unscheduled downtime.
