Description

Application Scenarios

In a 300 mm wafer fab running a Lam Research 2300 Kiyo® dielectric etch cluster tool, the load-lock chamber must transition between atmosphere (for wafer hand-off from the EFEM) and high vacuum (for process entry) in strict sequence—roughing pump → turbo pump → gate valve open to process module—without ever exposing the ultra-high-vacuum process chamber to atmosphere. A failed VIOP board manifests as a “Gate Valve Open Failed,” “Load Lock Pump Down Timeout,” or “VIOP Communication Loss” interlock that halts the entire chamber. The 810-099175-103 resolves this by restoring the optical isolation and drive capability between the 24 VDC valve coils and the sensitive 5 V logic bus. With galvanic isolation on each I/O channel, the 810-099175-103 prevents inductive kickback from valve solenoids from corrupting the chamber controller, a common root cause of intermittent communication drops and spurious fault trips that plague unprotected I/O designs. For fab maintenance teams, swapping in a verified 810-099175-103 gets the tool back online within minutes—no re-coding, no parameter changes, just a direct board exchange.

Parameter

Main Parameters	Value/Description

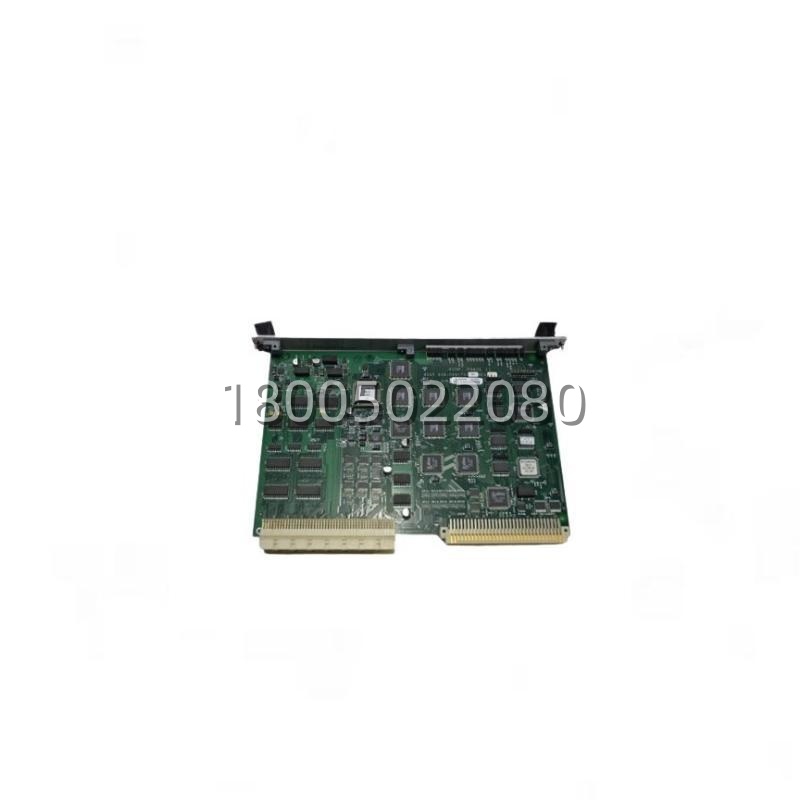

Product Model	810-099175-103
Manufacturer	Lam Research Corporation (USA)
Product Category	VIOP (Versatile I/O Processor) Board / Valve & Auxiliary I/O Interface PCB
Compatible Platforms	Lam Research 2300 Kiyo®, Versys®, Exelan®, Rainbow, 9400 series — VTM or chamber controller racks referencing P/N 810-099175-103
Function	Receives digital commands from tool controller; drives vacuum valve solenoids / actuators; conditions valve-position & limit-switch feedback; optically isolates field-side from logic-side
Logic / Backplane Power	+5 VDC (backplane logic) and +24 VDC (field I/O power) supplied via edge-connector from tool chassis power distribution
Valve Drive Outputs	Typically 4–8 isolated solid-state or relay-driven outputs; rated for 24 VDC valve coil loads (commonly up to 1–2 A per channel)
Input Channels	4–8 optically isolated digital inputs for valve-open/closed feedback, pressure switch, interlock status
Communication / Bus	Proprietary Lam internal backplane bus (parallel address/data or serialized VIOP protocol); no external fieldbus required
Indicators	On-board LEDs for +5 V / +24 V power OK, communication activity, individual output channel status, fault/diagnostic flag
Mounting	Plug-in PCB with gold-finger edge connector and guide-rail / card-cage retention; secured by captive screw to backplane
Operating Environment	Designed for cleanroom-adjacent tool chassis: 0–55 °C, 10–90 % RH non-condensing; EMI-shielded enclosure
Board Construction	Multilayer FR-4 with gold-plated contacts, conformal coating on selected revisions for humidity/moisture resistance

Technical Principles and Innovative Values

Optical isolation per I/O channel: The 810-099175-103 uses high-speed optocouplers on every input and output line, creating >1500 V galvanic isolation between the sensitive chamber-controller backplane and the noisy valve-coil field side. This prevents inductive voltage spikes from solenoid de-energization from propagating back to the main CPU—one of the most common causes of unexplained tool controller resets or communication timeouts in legacy-unprotected designs.
Integrated self-diagnostic & watchdog: The on-board microcontroller continuously monitors output driver state against commanded state and checks backplane communication heartbeats. If a valve fails to reach its commanded position within the expected window, or if the board loses link with the controller, the 810-099175-103 latches a fault LED and reports the condition upstream, allowing technicians to distinguish a bad valve (mechanical) from a bad board (electrical) without guesswork.
Sequence-safe fail-safe defaults: Upon power loss or communication timeout, all valve drive outputs on the 810-099175-103 default to a safe de-energized state consistent with Lam tool interlock philosophy—typically closing isolation gates and venting/blocking as required—ensuring vacuum integrity and wafer safety even during unexpected cabinet power events.
Direct plug compatibility with Lam tool firmware: The 810-099175-103 contains board-ID PROM / EEPROM that is read by the tool’s startup diagnostic routine to confirm the correct LRU type and revision before enabling chamber operations. Using a properly programmed OEM or verified-equivalent 810-099175-103 guarantees the tool boots without “Wrong Hardware” or “VIOP ID Mismatch” errors that would block process start.
Noise-immune signal conditioning: Input debounce filters and Schmitt-trigger buffering on feedback lines reject contact bounce from mechanical limit switches and electrical noise from adjacent high-power RF generator cabling, yielding clean, stable valve-position reporting to the chamber sequencer—critical for reliable pump-down timing and interlock satisfaction.
