Description
Technical Specifications
| Parameter Name | Parameter Value |
|---|---|
| Product Model | 00-112-314 |
| Manufacturer | KUKA Roboter GmbH |

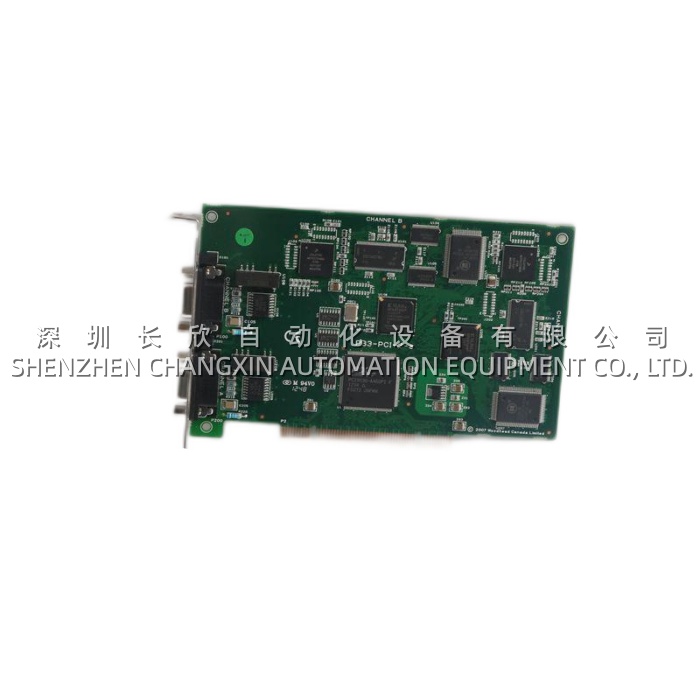

| Product Type | KCP2 Teach Pendant Cable / ARC-Sense PCI Tracking Board |
| Compatible System | KUKA KRC2 Controller (KRC2 ed05) |
| Compatible Devices | KCP2 Teach Pendant, ARC-Sense Welding Systems |
| Rated Voltage | 300 V |
| Conductor Material | Tinned Copper Stranded Wire (24 AWG) |
| Shield Construction | Double Shielding: Aluminum Foil + Tinned Copper Braid |
| Outer Jacket Material | PUR (Polyurethane), Orange |
| Operating Temperature | -20°C to +80°C |
| Minimum Bending Radius | Dynamic: 7.5 x Cable Diameter, Static: 4 x Cable Diameter |
| Oil Resistance | Excellent (ISO 1817 Compliant) |
| Flammability Rating | UL VW-1 / CSA FT1 |
Main Features and Advantages
Superior Signal Integrity in Harsh Environments: The KUKA 00-112-314 is engineered with a robust double-shielded design that combines an inner aluminum foil wrap with an outer dense tinned copper braid, providing exceptional immunity against electromagnetic interference (EMI) from servo drives, welding transformers, and variable frequency drives . This shielding ensures that the KUKA 00-112-314 transmits clean, error-free control signals between the KCP2 teach pendant and the KRC2 controller, preventing the frustrating intermittent faults and unexpected robot stops that often plague unshielded cables . In demanding automotive welding applications, the KUKA 00-112-314 maintains stable communication even when routed through oil-saturated drag chains or bundled with high-voltage power cables .
Unmatched Mechanical Durability and Flexibility: The KUKA 00-112-314 is constructed with a high-grade PUR outer jacket that delivers superior resistance to oil, coolant, abrasion, and hydrolysis . Unlike standard PVC cables that harden and crack after extended exposure to industrial fluids, the KUKA 00-112-314 remains flexible across a wide temperature range, supporting a dynamic bending radius of just 7.5 times the cable diameter . This flexibility is crucial for robot applications where the KUKA 00-112-314 undergoes millions of flex cycles during normal operation, significantly extending service life and reducing costly unplanned downtime .
Original Equipment Manufacturer Compatibility and Easy Installation: As a genuine KUKA component, the KUKA 00-112-314 features factory-original connector housings with keyed, anti-mating designs that ensure foolproof installation . The KUKA 00-112-314 connector pinouts are precisely matched to the KRC2’s XG19 interface, eliminating the need for wiring modifications or adapter cables . Maintenance personnel can replace the KUKA 00-112-314 quickly, as the cable is plug-and-play with no configuration changes required. In its ARC-Sense PCI card configuration, the KUKA 00-112-314 interfaces directly with the KRC2 backplane bus, processing weld seam tracking data with the low latency required for high-quality automated welding . However, users should note that the KUKA 00-112-314 is not compatible with newer KRC4 or KRC5 controllers, as the physical connector interface differs between generations .
