Interface Incremental Encoders to ACS Drives with the ABB YT204001-JT Board

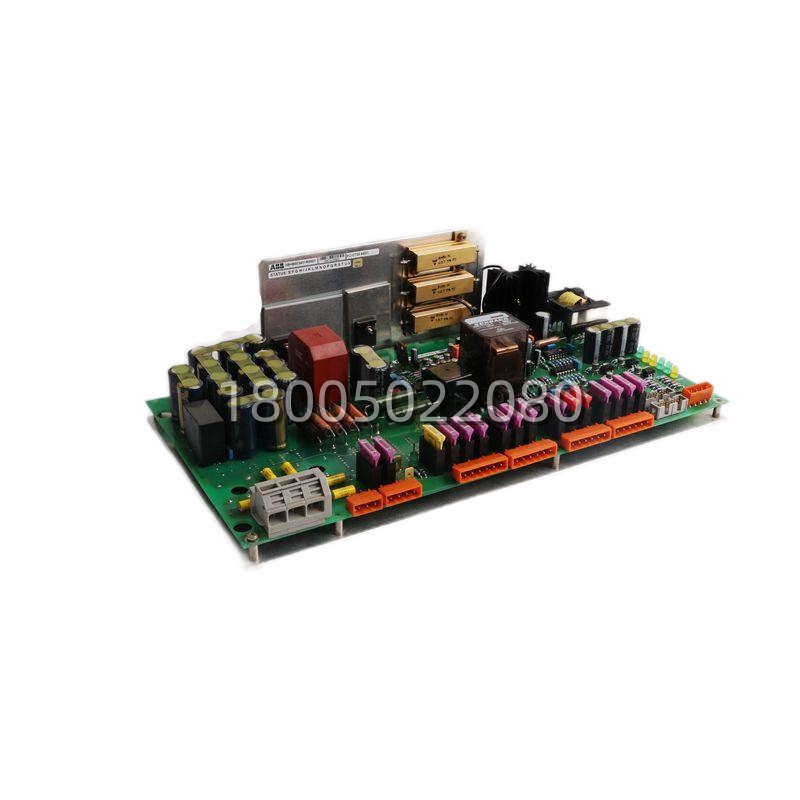

The ABB YT204001-JT (YXU169F) is a precision speed and position feedback interface board manufactured by ABB for its ACS600 and ACS800 series variable speed drives. This critical component acts as the sensory link between a motor-mounted encoder and the drive’s main control unit, converting encoder pulse trains into high-resolution digital data for closed-loop speed and torque regulation.

Category: FUJI

Contact Us WhatsApp / Wechat：+8618150087953
Phone：+86 18150087953
Email：sales@cxplcmro.com

Description

Application Scenarios:

In a paper mill’s high-speed coating section, precise synchronization between multiple motor-driven rollers is non-negotiable. A slight deviation in speed can cause web tension issues, leading to tears or product defects. The failure of a generic feedback card in one ACS800 drive caused erratic speed readings, disrupting the entire section. Replacing it with the genuine ABB YT204001-JT (YXU169F) board restored flawless, high-fidelity encoder signal processing. The drive immediately regained perfect synchronization, eliminating tension-related breaks and reducing material waste by an estimated 18%. The system’s reliability returned, demonstrating how this specialized board is not just a spare part but the cornerstone of precision motion control.

Technical Principles and Innovative Values:

Innovation Point 1: Advanced Signal Conditioning & Noise Immunity. The ABB YT204001-JT (YXU169F) board employs sophisticated differential line receivers and heavy filtering. This design actively rejects common-mode noise and electromagnetic interference (EMI) prevalent in industrial environments, ensuring that the delicate encoder signals are interpreted accurately over long cable runs, a common weakness in generic interface cards.

Innovation Point 2: High-Frequency Processing for Demanding Dynamics. With a maximum input frequency capability of 300 kHz, this board can handle signals from high-resolution encoders on very fast motors. This enables extremely precise speed measurement with minimal lag, which is critical for applications requiring rapid torque response and tight speed control loops, such as in centrifuges or test benches.

Innovation Point 3: Seamless Integration & Diagnostic Transparency. The board is not just a passive receiver; it is firmware-integrated with the ACS drive’s DNA Diagnostics and Maintenance (DDM) system. This allows faults or degradations in the feedback circuit to be logged and reported directly through the drive’s human interface module (HIM), turning a potential hours-long troubleshooting session into a minutes-long pinpoint diagnosis.
