Description

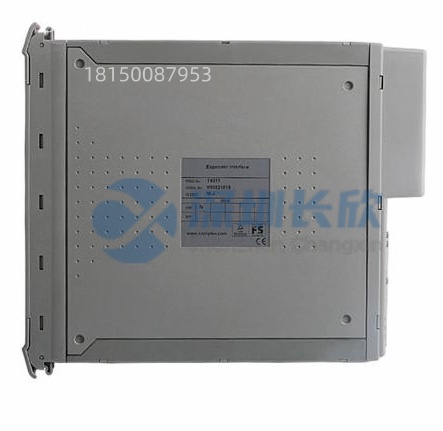

The ICS Triplex T8311 is a 16-channel digital output (DO) module designed for the Triconex® Triple-Modular Redundant (TMR) safety instrumented system (SIS), now part of Schneider Electric’s industrial automation portfolio. Engineered for SIL 3 applications per IEC 61508/61511. the T8311 delivers fail-safe, high-integrity control signals to field devices such as solenoid valves, motor starters, and alarm relays in critical processes.

Each output channel uses three independent voting circuits (one per TMR leg) to ensure that a single or even dual hardware fault cannot cause an unsafe state. The module supports both 24 V DC and 120 V AC loads (depending on terminal base configuration) and includes real-time diagnostics, LED status indicators, and built-in loop test capability—allowing proof testing without process interruption.

Commonly deployed in emergency shutdown (ESD), fire & gas (F&G), and burner management systems (BMS), the T8311 is a cornerstone of functional safety in oil refineries, LNG terminals, chemical plants, and power generation facilities.

Application Scenarios

At a North Sea offshore platform, a legacy ESD system using non-redundant outputs failed during a hydrocarbon leak due to a single relay weld—preventing isolation valves from closing. After upgrading to Triconex with ICS Triplex T8311 modules, the platform achieved full SIL 3 compliance. During a subsequent pressure surge in a separator vessel, the TMR system detected a spurious signal in one voting leg, voted it out, and still triggered all isolation valves within 100 ms. The event was contained with zero escalation. Maintenance later confirmed a failed transistor in Leg B—but thanks to TMR architecture, safety integrity remained uncompromised. The T8311 didn’t just respond to danger—it neutralized uncertainty.

Technical Principles and Innovative Values

Innovation Point 1: True TMR at the Output Level

Unlike conventional redundant systems, the T8311 implements three physically separate output drivers per channel. Only if two or more agree does the field device activate—ensuring faults are masked, not just detected.

Innovation Point 2: Online Proof Testing (Built-In Self Test)

The module can inject test signals to verify field loop continuity (e.g., solenoid coil health) without tripping the process—dramatically reducing downtime during safety validation.

Innovation Point 3: Fault Masking Without Common Cause

Independent power, logic, and output paths minimize common-cause failures. Even under EMI, surge, or temperature stress, voting integrity is maintained.

Innovation Point 4: Seamless Integration with Triconex Tools

Fully supported by TriStation 1131 for configuration, diagnostics, and firmware management—enabling full lifecycle safety compliance reporting.

Application Cases and Industry Value

A petrochemical plant in Texas upgraded its reactor dump system to Triconex with T8311 modules after a near-miss incident caused by a stuck-open vent valve. The new system included automatic weekly loop tests via the T8311’s diagnostic feature. Eight months later, a test flagged rising coil resistance in Valve #7—indicating imminent failure. The valve was replaced during a routine window, preventing a potential runaway reaction. Regulatory auditors cited the plant’s use of TMR output diagnostics as a best practice. The T8311 turned compliance into proactive risk elimination.
