Description

Application Scenarios

In a large chemical processing plant, dozens of Honeywell 900G32-0001 modules are deployed within the HC900 system to monitor the status of motors, valves, and safety interlocks across multiple production units. When a critical cooling pump fails and its feedback contact opens, the 900G32-0001 detects the state change within milliseconds and transmits the signal to the controller, which triggers an alarm and initiates a backup pump startup sequence. The module’s group isolation design prevents electrical noise from a nearby variable frequency drive from corrupting other input channels, ensuring reliable interlock logic execution .

At a water treatment facility, multiple 900G32-0001 cards monitor tank level switches and flow meter pulse signals. The module’s wide input voltage range (10–32 VDC) accommodates signals from various field sensors regardless of minor voltage variations . Plant operators rely on the Honeywell 900G32-0001‘s diagnostic LED indicators for quick visual confirmation of each channel’s status, significantly reducing the time required for point-to-point verification during scheduled maintenance .

Parameter

Main Parameters	Value/Description

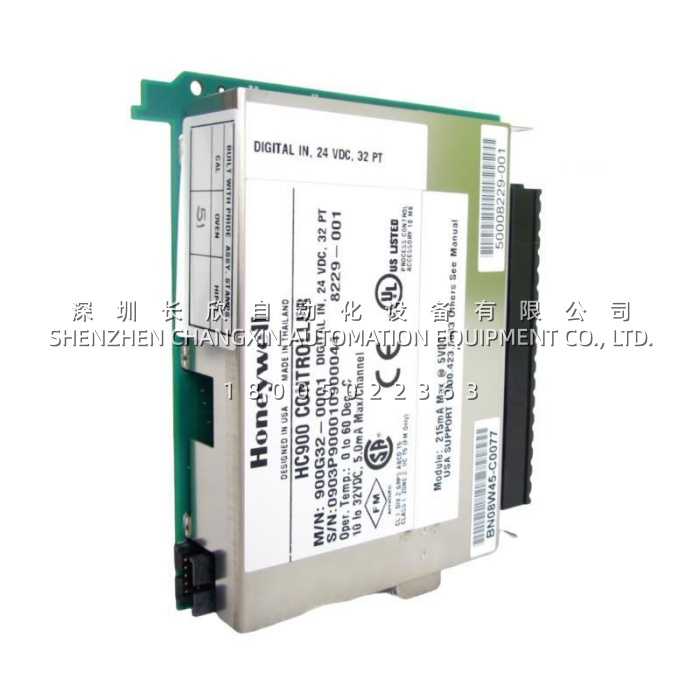

Product Model	900G32-0001
Manufacturer	Honeywell
Product Category	Digital Input Module
System Compatibility	Honeywell HC900 / ControlEdge HC900
Input Channels	32 (sinking type, organized in two groups of 16)
Input Voltage Range	10–32 VDC (24 VDC nominal)
Input Current	3.5 mA @ 24 VDC (nominal); 1.7 mA @ 12 VDC
ON Voltage Level	Minimum 9.5 VDC
OFF Voltage Level	Maximum 3.5 VDC
Input Impedance	6.9 kΩ (nominal)
Response Time	5 ms max (ON→OFF and OFF→ON)
Isolation	Two groups of 16 inputs (galvanically isolated)
Operating Temperature	-40°C to +70°C
Storage Temperature	-55°C to +85°C
Humidity Range	0–95% RH (non-condensing)
Dimensions	137mm H x 35.6mm W (rack-mount module)
Weight	175g – 408g (varies by configuration)
Mounting Type	Plug-in HC900 rack module (hot-swap compatible)

Technical Principles and Innovative Values

Innovation Point 1: High-Density Input Architecture. The Honeywell 900G32-0001 provides 32 discrete input channels in a single compact module, significantly reducing the number of modules and rack slots required for large-scale signal acquisition. This high-density design minimizes system footprint and lowers overall hardware costs while maintaining full diagnostic and isolation capabilities .

Innovation Point 2: Channel Group Isolation for Enhanced Reliability. The 900G32-0001 organizes its 32 channels into two electrically isolated groups of 16 inputs . This design prevents a short circuit or electrical fault on one channel group from propagating to the other group or the system backplane . The galvanic isolation between input groups and the system provides up to 30 VDC isolation, effectively protecting the controller from field wiring issues and electrical noise common in industrial environments .

Innovation Point 3: Wide Input Voltage Compatibility. The 900G32-0001 accepts a broad input voltage range of 10–32 VDC , making it compatible with a wide variety of field devices, including older 12V logic systems and modern 24V DC sensors. This flexibility simplifies system integration and accommodates minor voltage variations from power supplies or long cable runs without requiring additional signal conditioning modules.

Innovation Point 4: Integrated Diagnostics and Maintainability. The Honeywell 900G32-0001 features individual LED status indicators for each of its 32 channels, allowing operators and maintenance technicians to quickly verify the ON/OFF state of every connected field device at a glance . This visual diagnostic capability eliminates the need for external meters during routine checks and significantly accelerates troubleshooting. The module also supports hot-swap replacement, enabling faulty units to be replaced without powering down the entire HC900 system .
