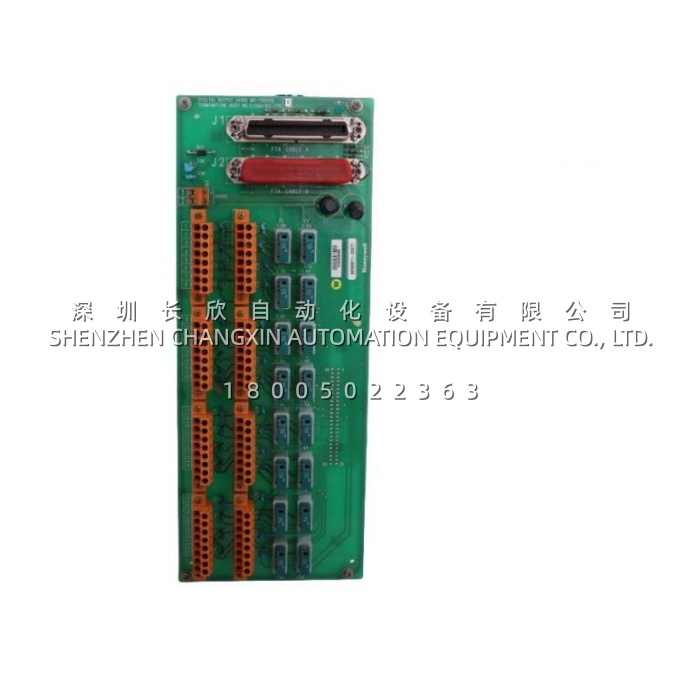

Description

Application Scenarios

In a large-scale pharmaceutical manufacturing facility, batch processing operations depend on reliable feedback from hundreds of limit switches and pushbuttons to sequence reactor vessel operations. The facility integrated the Honeywell 900G01‑0001 into their ControlEdge HC900 system to monitor critical field contacts across multiple production lines . The module’s hardware debounce and filtering circuitry effectively eliminated false triggers caused by contact bounce and electromagnetic interference from nearby variable-frequency drives, ensuring accurate valve position feedback and interlock logic execution . The Honeywell 900G01‑0001 addressed the key pain point of nuisance alarms and process interruptions, enabling continuous, high-quality batch production.

In a water and wastewater treatment plant, the Honeywell 900G01‑0001 monitors pump status, tank level switches, and flow meter pulse inputs across a distributed SCADA network . The module’s hot-swap capability allows maintenance personnel to replace a faulty input card without powering down the entire treatment train, maintaining critical pumping operations during repairs . The self-powered input design eliminates the need for external power supplies at each field device, simplifying wiring and reducing installation costs for large-scale monitoring applications .

Parameters

Main Parameters	Value/Description
Product Model	900G01‑0001
Manufacturer	Honeywell
Product Category	Digital Contact Input Module
Input Channels	16 independent dry contact inputs
Input Type	Dry contact / discrete contact closure
Logic High (ON)	10 VDC to 30 VDC
Logic Low (OFF)	0 VDC to 3 VDC
Input Impedance	10 kΩ typical per channel
Switching Current	2.6 mA nominal; 3.1 mA max per channel
Max Contact Resistance	1000 Ω
Response Time OFF→ON	4 ms maximum
Response Time ON→OFF	6 ms maximum
Backplane Loading	130 mA @ 5VDC max; 40 mA @ 24VDC max
Isolation Type	Galvanic isolation (field-to-logic)
Operating Temperature	0°C to 60°C
Dimensions (H×W×D)	137 × 35.6 × 151.7 mm
Weight	0.354 kg
Mounting	HC900 I/O rack or 35mm DIN rail

Technical Principles and Innovative Values

The Honeywell 900G01‑0001 operates on a robust architecture centered on signal integrity and system protection. Each input channel continuously monitors the resistance state of an external contact, detecting the transition from open to closed (or vice versa) and transmitting the resulting logic state to the HC900 controller via the rack backplane . The module’s self-powered design provides the necessary sensing voltage internally, eliminating the need for external power sources for dry contact detection .

Innovation Point 1: Integrated Hardware Debounce and Noise Filtering. The Honeywell 900G01‑0001 incorporates advanced debounce logic and hardware filtering directly at the input stage . This eliminates false state transitions caused by mechanical contact bounce during switch actuation and suppresses electromagnetic interference from nearby high-voltage equipment. The result is clean, reliable digital signals without requiring additional software filtering in the controller program.

Innovation Point 2: Galvanic Isolation for System Protection. The Honeywell 900G01‑0001 provides galvanic isolation between the field wiring (input side) and the module’s microcontroller/backplane circuitry . This barrier prevents electrical surges, ground loops, and high-voltage transients from propagating to the sensitive HC900 controller electronics, safeguarding the entire control system investment .

Innovation Point 3: Hot-Swap Capability and High-Density Design. The Honeywell 900G01‑0001 supports module replacement while the rack remains powered, enabling maintenance without process interruption . Its compact 35.6mm-wide form factor allows high-density mounting in the HC900 I/O rack, maximizing valuable cabinet space for large-scale automation projects with hundreds of discrete field points .
