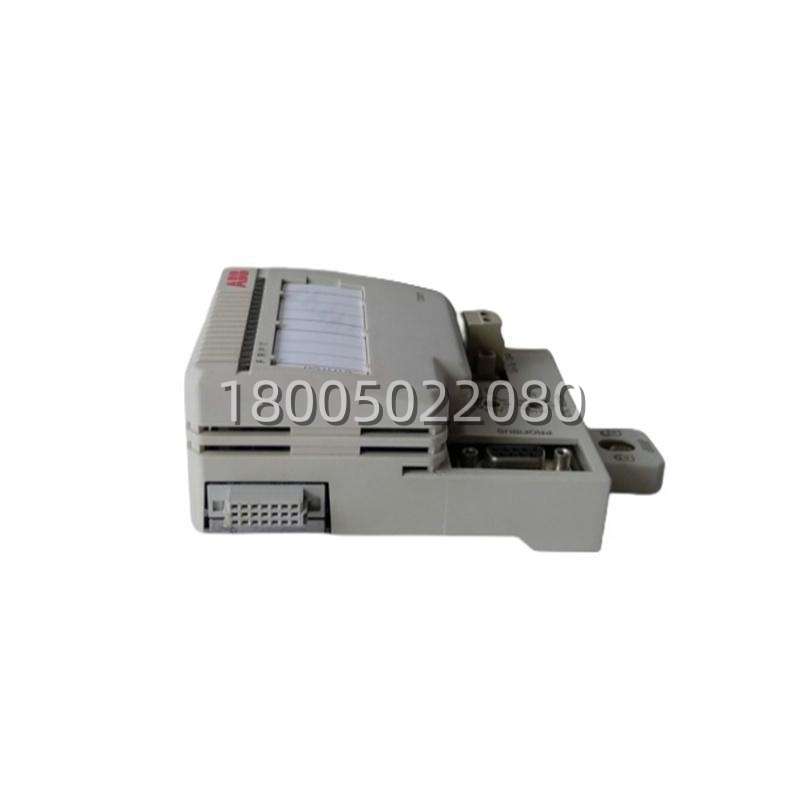

High-Density Analog Interface: ABB YPG109E 3ASD273001B3 I/O Module

Consider a large chemical reactor in a specialty chemical plant where precise temperature control is paramount to product quality and safety. Dozens of resistance temperature detectors (RTDs) are embedded throughout the reactor vessel and jacket. Running individual signal conditioners for each sensor is expensive and creates a wiring nightmare. Here, the ABB YPG109E 3ASD273001B3​ analog input board provides an elegant solution. Installed in a control cabinet, this single module can interface with 16 RTD sensors simultaneously. It provides the necessary excitation current, measures the millivolt signal with high resolution, performs linearization for the specific RTD type (e.g., Pt100), and transmits the precise temperature values to the controller. This dense, accurate, and integrated signal acquisition is critical for implementing advanced temperature control algorithms, ensuring a safe, consistent, and efficient reaction process. The YPG109E 3ASD273001B3​ thus solves the key challenges of signal integrity, wiring complexity, and cost per point for high-channel-count analog monitoring applications.
