Description

Product Overview

The FOXBORO DM400YL FBM10 REV.0G 120VAC NSMP is a high-performance Fieldbus Module designed for integration within FOXBORO’s I/A Series Distributed Control System(DCS).As part of the FBM10 family,the DM400YL offers unparalleled flexibility and reliability in industrial automation environments.With its capability to interface with a wide range of field devices such as sensors,actuators,and valves,this module is ideal for industries requiring precise control and monitoring of process variables.

This 120VAC powered fieldbus module supports digital communication protocols such as HART and Modbus,ensuring high-speed data exchange between the control system and field devices.The FOXBORO DM400YL FBM10 REV.0G module is optimized for real-time process control and can easily be integrated into existing FOXBORO I/A systems,offering improved operational performance and faster response times.

Key features such as diagnostic capabilities,high reliability,and ease of installation make the DM400YL FBM10 a preferred choice for applications in process control,chemical plants,oil and gas,and power generation.It offers an efficient solution to manage complex processes with minimal downtime,making it an essential part of any high-performance industrial automation setup.

Technical Specifications

Parameter Name Parameter Value

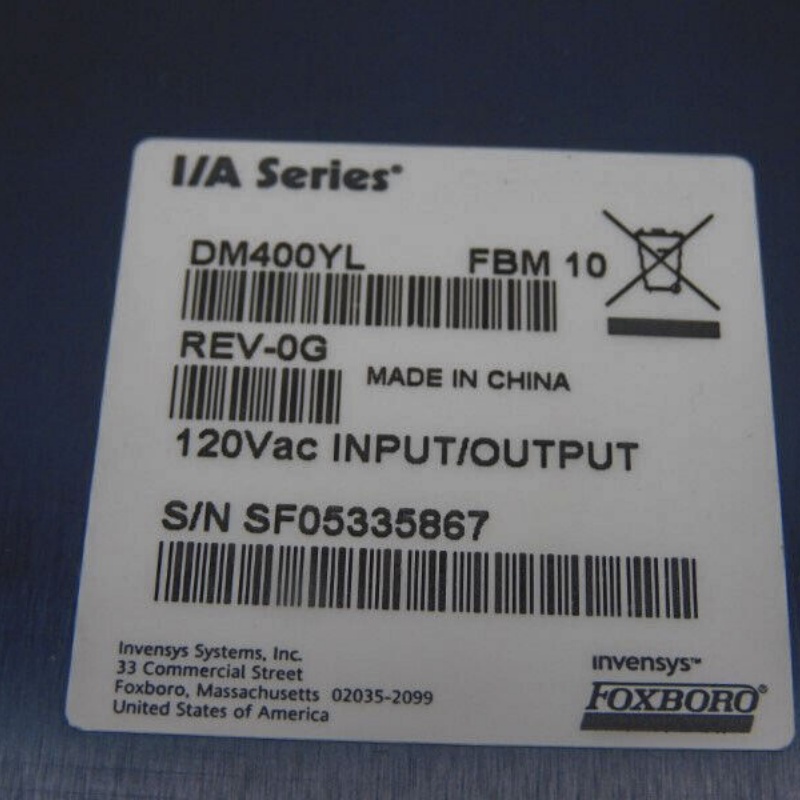

Product Model DM400YL FBM10 REV.0G

Manufacturer FOXBORO

Product Type Fieldbus Module

Power Supply 120VAC

Communication Protocol HART,Modbus

Input/Output Channels 8 digital I/O

Operating Temperature-20°C to+60°C

Protection Class IP20

Dimensions 230mm x 150mm x 60mm

Weight 0.6 kg

Mounting DIN Rail

Diagnostics Integrated diagnostic features

Operating Voltage 120V AC

Main Features and Advantages

High-Speed Communication:The FOXBORO DM400YL FBM10 REV.0G utilizes robust digital communication protocols like HART and Modbus for real-time data exchange between the field devices and the central control system.This ensures fast response times and accurate process control across various applications.

Flexible Integration:As part of the FBM10 series,the DM400YL seamlessly integrates with FOXBORO I/A Systems,providing a scalable and customizable solution for both small and large industrial setups.Its compatibility with various devices and controllers makes it a versatile choice for complex automation tasks.

Diagnostic Capabilities:The FOXBORO DM400YL comes equipped with advanced diagnostic features,allowing operators to easily monitor the health and performance of connected devices.This reduces unplanned downtime,improves system reliability,and helps in proactive maintenance scheduling.

Compact and Durable Design:Designed to be installed on DIN rails,the DM400YL has a compact form factor(230mm x 150mm x 60mm),making it suitable for installations where space is limited.The module is also built to withstand harsh industrial environments,with an IP20 protection class ensuring durability in industrial settings.

Wide Temperature Range:The DM400YL FBM10 module is capable of operating in a broad temperature range,from-20°C to+60°C,making it ideal for use in both cold and hot environments.This ensures consistent performance even in challenging industrial conditions.

120VAC Power Supply:Powered by 120VAC,the FOXBORO DM400YL simplifies power requirements,making it easier to integrate into existing electrical setups without needing special power converters.

Cost-Effective and Efficient:With its ease of installation and low maintenance requirements,the DM400YL FBM10 offers a cost-effective solution for controlling and monitoring field devices.This module ensures high uptime,efficiency,and reduced operational costs over time.

Application Field

The FOXBORO DM400YL FBM10 REV.0G is widely used in industries where real-time control and monitoring of field devices are critical.Some of the primary applications include:

Process Control:The DM400YL FBM10 is ideal for use in chemical processing plants,oil and gas refineries,and other process industries where precise control over variables such as pressure,temperature,and flow is essential.It provides a seamless interface to control valves,pumps,and other equipment.

Power Generation:In power plants,the FOXBORO DM400YL can be used for monitoring and controlling various field devices in the plant’s control systems,including sensors for temperature,pressure,and flow in critical areas such as turbines,generators,and boilers.

Water Treatment:The DM400YL FBM10 helps in managing water treatment plants by controlling the flow of water through filters,pumps,and valves,ensuring a consistent supply of clean water.Its diagnostic features also ensure continuous system operation and prevent potential breakdowns.

Automated Manufacturing:In industries such as automotive and electronics manufacturing,the FOXBORO DM400YL is used to control machinery and robotics,ensuring smooth and precise automated operations across production lines.

HVAC Systems:The FOXBORO DM400YL FBM10 is suitable for use in controlling HVAC systems,regulating temperature,humidity,and air quality in large buildings,factories,or commercial spaces.It ensures efficient operation and energy savings.

Building Management Systems:The module is also used in building automation systems for controlling lighting,HVAC,and security systems.The FOXBORO DM400YL helps maintain a comfortable environment while optimizing energy use.

With its wide range of applications and high level of integration,the FOXBORO DM400YL FBM10 is a key player in modern industrial automation systems.

Related Products

FOXBORO DM400YL FBM20:A more advanced version of the DM400YL,with additional communication protocols and expanded functionality for larger and more complex systems.

FOXBORO FBM10:A foundational model within the FBM10 series that offers basic fieldbus connectivity and signal processing.

FOXBORO DM200FB:A digital fieldbus module designed for applications requiring more I/O channels for monitoring and controlling larger systems.

FOXBORO FBM201:This model provides enhanced diagnostic capabilities and additional output control,making it ideal for applications requiring more complex field device management.

FOXBORO I/A Series DCS:A comprehensive Distributed Control System that can be integrated with the DM400YL FBM10 module to offer a complete automation solution for industrial processes.

Installation and Maintenance

Pre-installation preparation:

Before installing the FOXBORO DM400YL FBM10 REV.0G,ensure the system’s power supply is configured for 120VAC and check for proper connection to communication lines,especially if using protocols like HART or Modbus.The module is designed for DIN rail mounting,so ensure adequate space for installation in control panels or automation cabinets.

Maintenance recommendations:

The FOXBORO DM400YL requires minimal maintenance,but regular inspection of the communication lines,diagnostic LEDs,and field device connections is recommended.Periodic cleaning of the module’s outer surface with a soft cloth will ensure that it remains free of dust and debris.For efficient long-term operation,ensure that the module’s temperature does not exceed 60°C to avoid overheating.

Product Guarantee

The FOXBORO DM400YL FBM10 REV.0G is backed by FOXBORO’s robust warranty and commitment to product quality.This module is designed to withstand the rigors of industrial environments,and FOXBORO offers full technical support,troubleshooting assistance,and warranty services to ensure the product’s reliable performance throughout its lifecycle.Whether for installation,maintenance,or operation,FOXBORO ensures your system runs efficiently with the highest uptime.
