DC Drive Control Board for DCS 600/800 Systems

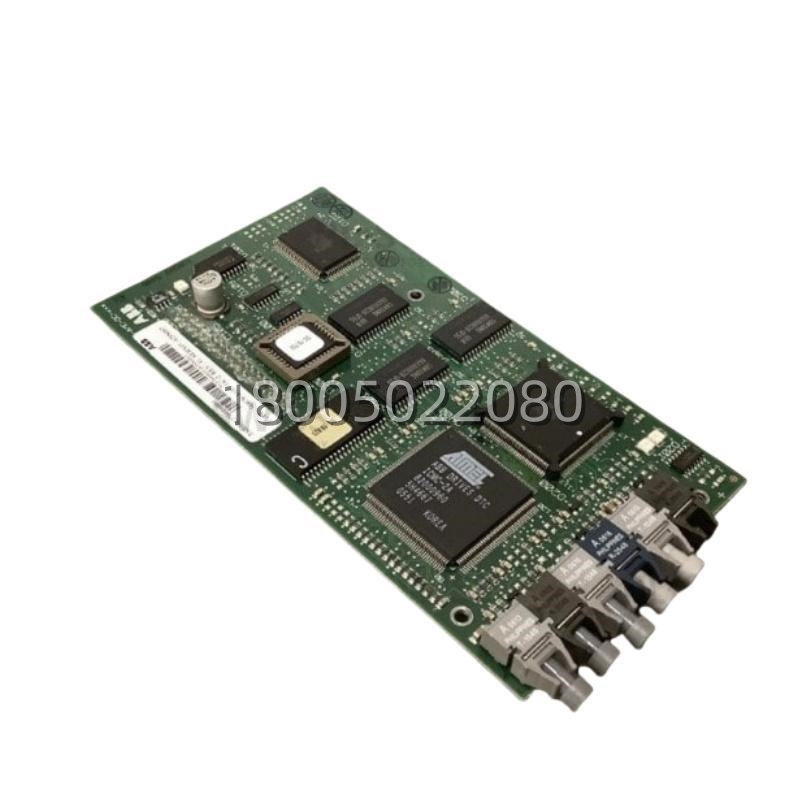

The ABB SDCS-AMC-DC-2 COAT 3ADT220090R0040 is a high-performance digital control board designed as the core intelligence unit for ABB’s DCS 600 and DCS 800 series DC drive systems. This module, identified by the full part number 3ADT220090R0040 and the common designation SDCS-AMC-DC-2 COAT, serves as the central processing unit that executes advanced motion control algorithms for speed and torque regulation in industrial DC motor applications. The “COAT” suffix indicates the presence of a protective conformal coating, which provides enhanced resistance against moisture, dust, and corrosive atmospheres, making it suitable for harsh industrial environments such as pulp and paper mills or metal processing plants. The board features a high-speed digital signal processor (DSP) that delivers precise control with a loop update time as fast as 250 microseconds, ensuring stable motor performance even under dynamic load changes. It integrates key functionalities including analog and digital I/O handling, fiber-optic communication for noise-immune data exchange via the DDCS network, and comprehensive fault diagnostics. As a critical component within the SDCS (System Device Control System) architecture, the ABB SDCS-AMC-DC-2 COAT 3ADT220090R0040 is essential for maintaining the reliability and longevity of legacy DC drive systems across heavy industries.

Category: FUJI

Contact Us WhatsApp / Wechat：+8618150087953
Phone：+86 18150087953
Email：sales@cxplcmro.com

Description

Technical Specifications

Parameter Name	Parameter Value
Product Model	SDCS-AMC-DC-2 COAT 3ADT220090R0040
Manufacturer	ABB
Product Type	DC Drive Control Board (Asynchronous Motor Controller)
Compatible Drive Series	DCS 600, DCS 800
Input Voltage	24 VDC (±15%)
Power Consumption	Approx. 25 W (typical)
Processor	High-Speed Digital Signal Processor (DSP)
Control Loop Update Time	250 µs
Control Resolution	24-bit
Speed Control Accuracy	±0.01% of setpoint
Torque Control Accuracy	±0.5% of rated torque
Analog Inputs	±10 V, 4-20 mA (configurable)
Digital Inputs	24 V DC (sinking/sourcing)
Communication Interface	Fiber Optic (DDCS ports V12-V15), RS-485
Operating Temperature Range	-40 °C to +70 °C
Storage Temperature Range	-50 °C to +85 °C
Relative Humidity	5% to 100% (condensing allowed)
Dimensions (Approx.)	230 mm x 160 mm x 25 mm
Weight	Approx. 0.42 kg

Main Features and Advantages

The ABB SDCS-AMC-DC-2 COAT 3ADT220090R0040 is engineered for precision and resilience in demanding drive applications. Its core strength lies in the high-speed DSP architecture, which enables extremely fast control loop execution (250 µs) and 24-bit resolution for precise regulation of motor speed and torque. This ensures smooth operation of DC motors under varying loads, minimizing speed drift and mechanical stress. The board supports advanced control features such as IR compensation, adaptive current limiting, and field weakening, allowing for optimized motor performance across a wide speed range.A key differentiator is its robust construction and environmental protection. The conformal coating (COAT) provides a critical barrier against conductive dust, humidity, and chemical vapors, significantly reducing the risk of board failure in harsh mill environments. For diagnostics and connectivity, the board is equipped with multiple fiber-optic ports (DDCS) that enable noise-immune communication for peer-to-peer drive linking, PC tool connectivity (DriveWindow), and integration with fieldbus adapters. Comprehensive LED status indicators and a built-in fault logging system allow maintenance personnel to quickly identify issues related to power supply, communication loss, or motor faults, thereby reducing mean time to repair (MTTR).
