Critical Drive Axis Control: ABB DSQC 230 (YB560103-BN) Circuit Board

Description

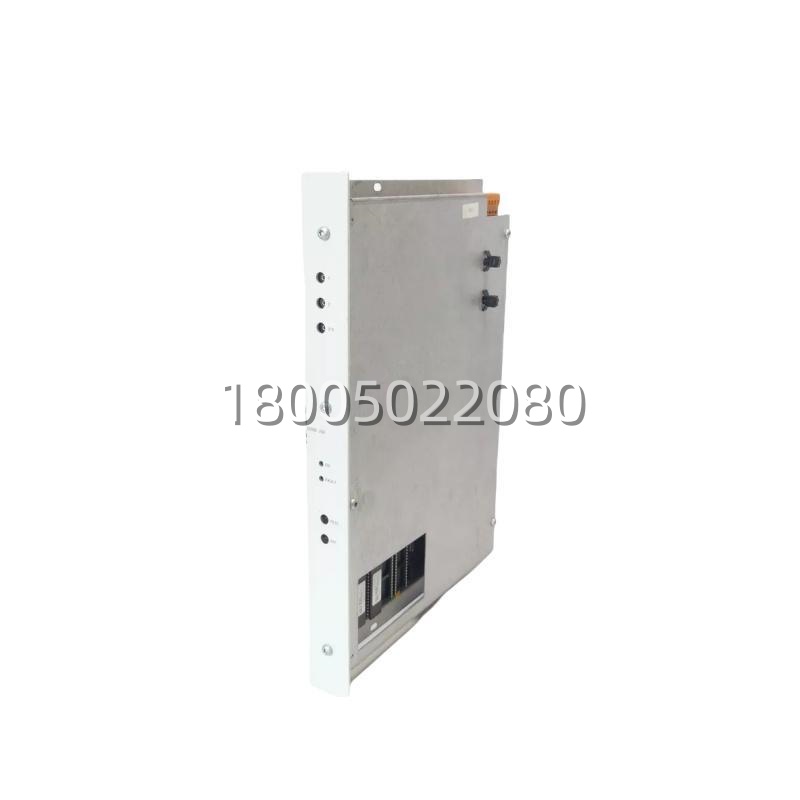

The ABB YB560103-BN DSQC 230 is a mission-critical motion control circuit board manufactured by ABB Robotics, a global leader in industrial automation. This board serves as a single-axis drive module or Axis Computer within the ABB IRC5 robotic controller system. It functions as the intelligent interface between the main computer and the motor drive, executing precise motion control algorithms to ensure accurate, dynamic, and reliable movement of a single robot axis.

Category: FUJI

Contact Us WhatsApp / Wechat：+8618150087953
Phone：+86 18150087953
Email：sales@cxplcmro.com

Description

Application Scenarios

Imagine a high-speed automotive assembly line where a 6-axis ABB robot performs precise spot welding on a vehicle chassis every 60 seconds. A sudden fault on Axis 3 causes the entire robot to halt, displaying a critical drive system error. Production stops instantly, costing thousands per minute. The maintenance technician diagnoses a failure in the axis control module within the IRC5 drive module rack. Replacing the faulty unit with a genuine ABB YB560103-BN DSQC 230 board, followed by system calibration, restores precise servo control to the axis. This scenario highlights the board’s indispensable role: as a dedicated axis computer, it directly addresses the pain point of catastrophic robotic downtime by providing a direct, OEM-compatible replacement that returns the sophisticated motion control system to its original performance specifications, ensuring continuous, high-precision manufacturing.
