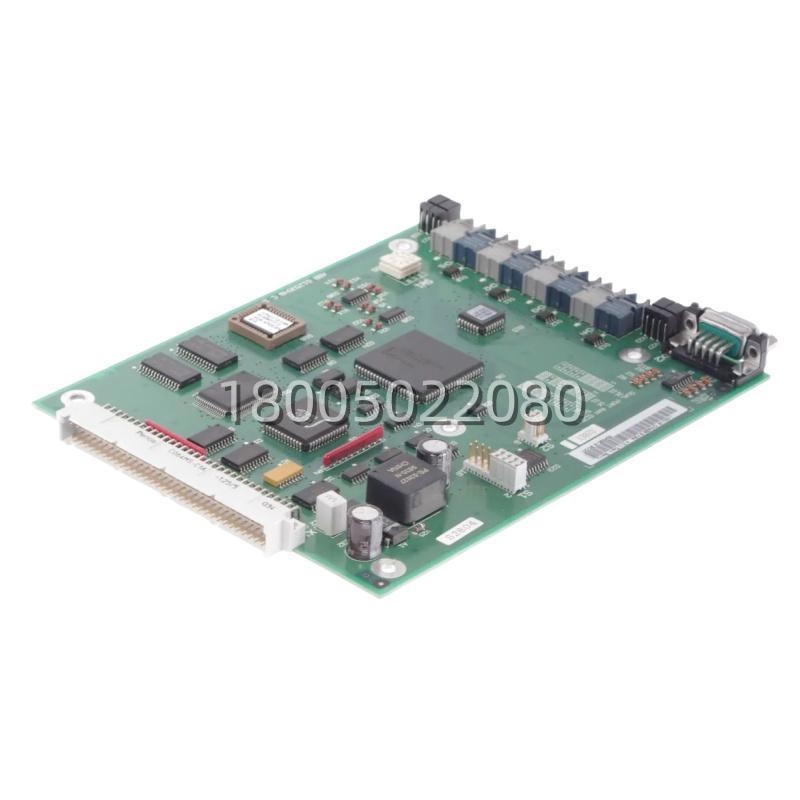

Connect AC 800M to PROFINET Networks with ABB YPQ112 61253432 Interface

In a modern automotive assembly plant’s new paint shop, hundreds of sensors, actuators, and servo drives on robotic painters and conveyor carriers require millisecond-synchronized control. The central control system uses AC 800M controllers, but the legacy fieldbus network lacked the bandwidth and determinism. Engineers deployed a PROFINET IO network as the backbone. They installed the ABB YPQ112 61253432​ PROFINET boards in the main controller racks. Each board, acting as an IO Controller, manages a segment of the network, connecting via industrial Ethernet switches to dozens of PROFINET IO Devices, including remote I/O blocks for sensors and servo drives with built-in PROFINET interfaces. The YPQ112 61253432​ ensures deterministic, real-time data exchange with a cycle time of less than 10ms, enabling perfect synchronization between robots and moving conveyors. This setup facilitated the implementation of advanced “flying” paint applications, increased data transparency for predictive maintenance, and reduced wiring complexity by 40% compared to the previous system.
