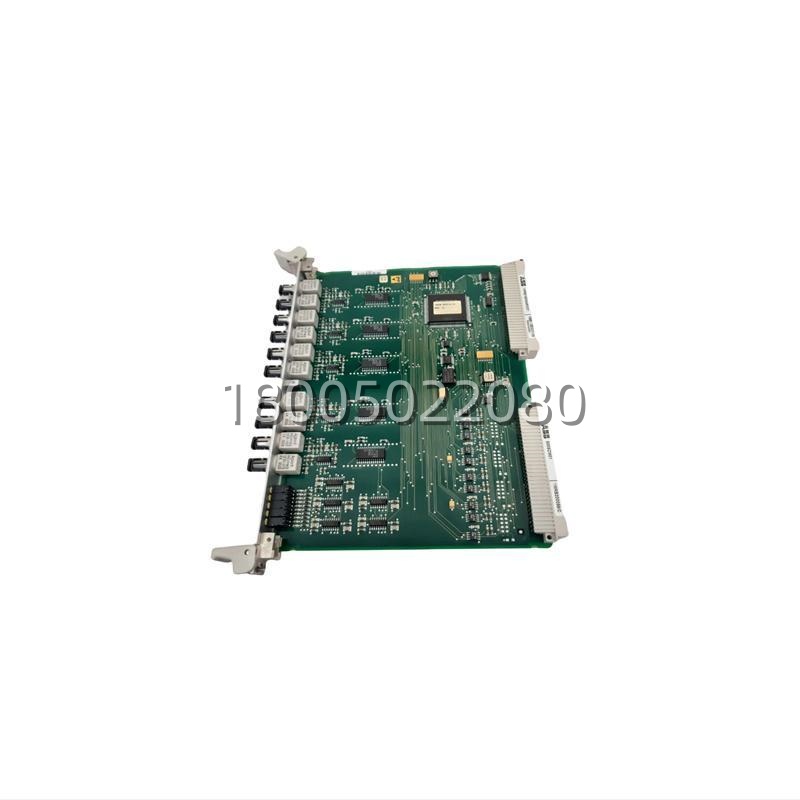

Build Scalable Automation Nodes with ABB 1MRB150082R0103 500CU-BIO01 Expansion Module

Description
The 1MRB150082R0103​ (500CU-BIO01) is a binary I/O expansion module manufactured by ABB, designed as a core building block within the ABB 500CU distributed I/O architecture, compatible with AC500 and S500 automation ecosystems. Classified as a combined digital input/output slice, it provides 8 digital inputs and 8 digital outputs (16 channels total) in a single compact housing, acting as the direct interface between field devices—sensors, pushbuttons, solenoid valves, indicator lamps—and the higher-level controller. Its rail-mount design and protocol flexibility make it a go-to choice for both new machine builds and brownfield I/O upgrades.
Application Scenarios
In a high-speed bottling hall where a legacy relay panel had become a troubleshooting nightmare—loose wires, undocumented modifications, and no diagnostic visibility—the engineering team replaced the panel’s discrete components with a 500CU rack centered on the 1MRB150082R0103. Each 1MRB150082R0103​ handled eight proximity sensors on the conveyor starwheel (inputs) and eight pilot valves for the filler heads (outputs), all wired to the 500CU control unit feeding an AC500 CPU upstairs. Within two weeks of commissioning, the plant logged a 35% reduction in minor stoppages attributed to I/O faults. The maintenance lead put it simply: “Before, a flickering sensor meant climbing into the panel with a multimeter. Now the 1MRB150082R0103​ tells the SCADA exactly which channel dropped—and half the time, it’s a broken sensor, not the module.” For lines where every second of downtime costs cases, that diagnostic clarity pays for itself fast.
Category:
Contact Us WhatsApp / Wechat：+8618150087953
Phone：+86 18150087953
Email：sales@cxplcmro.com

Description

Parameter

Main Parameters Value/Description
Product Model 1MRB150082R0103​ (500CU-BIO01)
Manufacturer ABB
Product Category Binary I/O Expansion Module
Channel Configuration 8 Digital Inputs + 8 Digital Outputs (16 total)
Operating Voltage 12–24 V DC (nominal 24 V DC)
Input Current Max. 5 mA per channel (typical)
Output Rating 2 A @ 24 V DC per channel
Communication Protocol Profinet + Modbus RTU
Operating Temperature -25 °C to +60 °C
Protection Rating IP20 (cabinet-mounted)
Dimensions (W×H×D) 100 × 96 × 96 mm (approx.)
Weight Approx. 0.4 kg





Technical Principles and Innovative Values

  • Innovation Point 1: Integrated 8DI/8DO in a Single Slice.​ The 1MRB150082R0103​ packs both sinking/sourcing inputs and robust 2 A outputs into one module, halving the rack footprint compared to running separate DI and DO slices for small machines. For a 16-point machine-local I/O cluster, that’s one module instead of two—saving DIN rail, terminal count, and wiring hours.
  • Innovation Point 2: Dual-Protocol Readiness.​ While many binary slices lock you into one bus, the 1MRB150082R0103​ supports both Profinet (for modern AC500 deployments) and Modbus RTU (for retrofits talking to older drives or third-party controllers). No gateway needed at the slice level—the 500CU head unit handles protocol translation.
  • Innovation Point 3: Per-Channel Diagnostic Visibility.​ Unlike “dumb” blocks that only tell you “output on/off,” the 1MRB150082R0103​ surfaces short-circuit detection on outputs and wire-break monitoring on inputs back to the controller. That means a burned-out solenoid shows up as a diagnostic bit, not a mystery why the cylinder won’t extend.
  • Innovation Point 4: Wide Voltage & Thermal Headroom.​ Rated 12–24 V DC input power and -25 °C to +60 °C operating range, the 1MRB150082R0103​ shrugs off voltage sag from long feeder runs and handles hot cabinet environments without derating—critical in Southeast Asian plants or unairconditioned workshops.

Application Cases and Industry ValueA grain-handling terminal on the Mississippi retrofitted three bucket-elevator control stations using ABB 1MRB150082R0103 500CU-BIO01​ modules as part of a site-wide migration from relay logic to AC500. Each elevator had eight belt-alignment switches (DI) and eight bin-level solenoid dumps (DO)—a perfect fit for the 8+8 channel split. The 500CU rack with the 1MRB150082R0103​ was mounted inside NEMA 12 enclosures near the elevator heads, communicating via Profinet over fiber back to the main PLC. After the first harvest season post-retrofit, the terminal reported zero I/O-related nuisance stops (down from 4–6 per season previously), and the electrician’s “first-check” routine changed from probing relays to reading the AC500 diagnostic buffer. The terminal superintendent noted the retrofit paid back in one season just from avoided spillage cleanup alone.Related Product Combination SolutionsBuild out a complete 500CU/AC500 node around the 1MRB150082R0103​ with these ABB companions:



  • 500CU-CU01:​ The 500CU control unit / head module—this is the “brain” that the 1MRB150082R0103​ plugs into; handles Profinet/Modbus communication back to the AC500 CPU.
  • PM591:​ AC500 series CPU (mid-range)—the natural host controller when scaling beyond a single 500CU rack.
  • 500CU-AIO01:​ Analog I/O sibling to the BIO01—pair with the 1MRB150082R0103​ when the machine also needs 4–20 mA temperature or pressure signals.
  • TB807:​ Terminal base for S500/500CU modules—the 1MRB150082R0103​ snaps onto this for front-access wiring.
  • CI581:​ Profinet interface module for AC500—used when the upstream controller needs a dedicated Profinet master port for the 500CU ring.
  • S500 eCo:​ Economy version of the S500 rack—the 1MRB150082R0103​ is often deployed here for cost-sensitive machine builders who still want ABB diagnostics.
  • SD834:​ 24 V DC power supply module for S500 racks—powers the 500CU head and all attached slices including the 1MRB150082R0103.
