Description

product overview

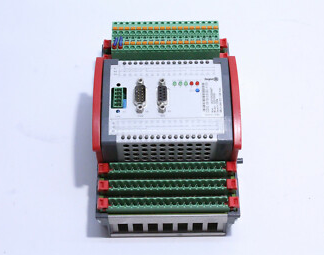

CDIO 16/16-0, 5-1131 is a high-performance digital input/output (I/O) controller module launched by the BERGHOF brand, designed specifically for equipment control and monitoring in the field of industrial automation. This module integrates digital signal processing, multi protocol communication, and intelligent diagnostic functions to support complex logic control and real-time data interaction. It is suitable for production lines, mechanical equipment, process control, and other scenarios, providing stable and reliable automation solutions.

technical specifications

Parameter specifications

Voltage 115 V

Current 2.0 A

Enter 800 points

Output points 800

Communication protocols such as EtherCAT, Modbus TCP, PROFINET, etc

Working temperature from ultra-low temperature to room temperature environment

The protection level is not clearly marked (please refer to specific scenarios)

Main features and advantages

High reliability and stability

Adopting industrial grade hardware components to adapt to harsh environments such as high temperature, vibration, and electromagnetic interference, ensuring long-term operation without faults.

Built in fault detection and recovery mechanisms, such as watchdog timer (WDT) and battery backup protection, prevent data loss.

Multi protocol compatibility

Native support for mainstream industrial protocols such as EtherCAT, Modbus TCP, PROFINET, etc., allowing seamless integration of devices from different brands and reducing system complexity.

Support multi master station communication without the need for additional hardware expansion, reducing hardware costs and debugging time.

Compact design

Compact in size, supporting modular installation, suitable for industrial equipment with limited space, easy to maintain and upgrade.

Intelligent diagnosis and programming

Provide real-time status monitoring and alarm functions to quickly locate equipment abnormalities.

Supports ladder diagram (LAD) and structured text (ST) programming, compatible with the CODESYS platform, and simplifies the development process.

application area

Automated production line: Control the logical actions and coordination of equipment such as robotic arms and conveyor belts.

Mechanical equipment: Monitor sensor signals (such as temperature and pressure) and trigger actuator responses.

Process control: Optimize parameter adjustment and data recording in industries such as chemical engineering and food processing.

Intelligent Manufacturing: Integrating industrial robots and CNC systems to improve production efficiency and accuracy.

Related products

CDIO 16/16-0,5

Simplified version of I/O module, similar in function to CDIO 16/16-0,5-1131, but with less protocol support, suitable for basic control scenarios.

CE3CPU-1131

The CPU module in the BERGHOF controller series can be used in conjunction with CDIO 16/16-0,5-1131 to form a complete automation control system.

CEDIO.16/16-0.5-1131

The software extension version provides richer programming functions and protocol adaptation, suitable for complex multi master station scenarios.

CDIO 16/16-0,5-SC-T2-1131

Special customized model, supporting ultra-low temperature environment and vacuum valve control, suitable for extreme industrial scenarios

产品概述

CDIO 16/16-0,5-1131是BERGHOF品牌推出的高性能数字输入/输出（I/O）控制器模块，专为工业自动化领域的设备控制与监测设计。该模块通过集成数字信号处理、多协议通信及智能诊断功能，支持复杂逻辑控制和实时数据交互，适用于生产线、机械设备、工艺流程控制等场景，提供稳定可靠的自动化解决方案。

技术规格

参数项规格

电压115 V

电流2.0 A

输入点数800

输出点数800

通信协议EtherCAT、Modbus TCP、PROFINET等

工作温度超低温至常温环境

防护等级未明确标注（需参考具体场景）

主要特点和优势

高可靠性与稳定性

采用工业级硬件组件，适应高温、振动、电磁干扰等恶劣环境，确保长期运行无故障。

内置故障检测与恢复机制，如看门狗定时器（WDT）和电池后备保护，防止数据丢失。

多协议兼容性

原生支持EtherCAT、Modbus TCP、PROFINET等主流工业协议，可无缝集成不同品牌设备，降低系统复杂性。

支持多主站通信，无需额外硬件扩展，减少硬件成本与调试时间。

紧凑型设计

体积小巧，支持模块化安装，适用于空间受限的工业设备，便于维护与升级。

智能诊断与编程

提供实时状态监控与报警功能，快速定位设备异常。

支持梯形图（LAD）和结构化文本（ST）编程，兼容CODESYS平台，简化开发流程。

应用领域

自动化生产线：控制机械臂、传送带等设备的逻辑动作与协调。

机械设备：监测传感器信号（如温度、压力）并触发执行器响应。

工艺流程控制：优化化工、食品加工等行业的参数调节与数据记录。

智能制造：集成工业机器人与CNC系统，提升生产效率与精度。

相关产品

CDIO 16/16-0,5

简化版I/O模块，功能与CDIO 16/16-0,5-1131类似，但协议支持较少，适用于基础控制场景。

CE3CPU-1131

BERGHOF控制器系列中的CPU模块，可与CDIO 16/16-0,5-1131搭配使用，构成完整的自动化控制系统。

CEDIO.16/16-0.5-1131

软件扩展版本，提供更丰富的编程功能与协议适配，适合复杂多主站场景。

CDIO 16/16-0,5-SC-T2-1131

特殊定制型号，支持超低温环境与真空阀控制，适用于极端工业场景
