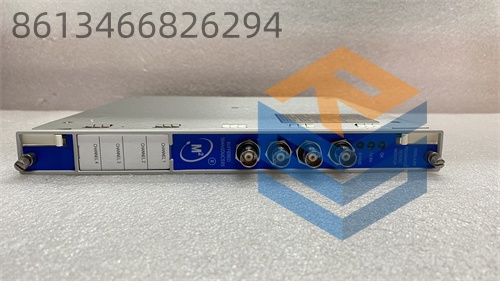

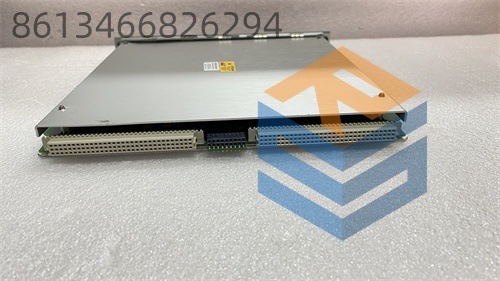

BENTLY 3500/42M 140734-02 Dual-Redundant Sensor Input Module for Turbine & Compressor Protection

Description

Application Scenarios

At a European combined-cycle power plant, recurring bearing failures in a 150 MW steam turbine led to costly forced outages. Engineers deployed the BENTLY 3500/42M 140734-02 to monitor X-Y radial vibration on three critical bearing spans using dual-redundant proximity probes per axis. The module’s high-resolution dynamic signal output enabled real-time orbit analysis via Emerson’s System 1. revealing thermal bow during startup—a previously undetected root cause. With early warnings now triggered by trend deviations (not just threshold breaches), unplanned downtime dropped by 85%. In this context, the BENTLY 3500/42M 140734-02 acted not just as a sensor interface, but as a predictive sentinel for mechanical integrity.

Parameter

表格

Technical Principles and Innovative Values

Innovation Point 1: True Dual-Redundant Channel Architecture

Each of the four channels on the BENTLY 3500/42M 140734-02 can independently process signals from two separate proximity probes—enabling voting logic (e.g., 2oo3) for SIL-rated trip systems without external hardware.

Innovation Point 2: High-Fidelity Buffered Outputs for Diagnostic Systems

Unlike basic alarm-only modules, the BENTLY 3500/42M 140734-02 provides low-impedance, buffered analog outputs that feed directly into data acquisition systems for advanced diagnostics like FFT, orbit plots, and phase analysis.

Innovation Point 3: Onboard Linearization & Calibration Storage

The module stores probe-specific calibration curves (slope/offset) in non-volatile memory, automatically compensating for probe cable length and driver variations—ensuring ±1% measurement accuracy across installations.

Innovation Point 4: Seamless Integration with 3500 Ecosystem

The BENTLY 3500/42M 140734-02 synchronizes sampling with other 3500 modules (e.g., speed, thrust) via the rack backplane, enabling time-coherent multi-parameter analysis essential for root-cause diagnosis.

Application Cases and Industry Value

In a North American ethylene cracker, a cracked compressor rotor caused catastrophic failure after conventional vibration thresholds were missed due to masking by process noise. Post-incident, the site retrofitted all critical compressors with BENTLY 3500/42M 140734-02 modules configured for dual-probe redundancy and high-resolution waveform capture. Within months, the system detected abnormal ½× sub-synchronous vibration in a similar machine—triggering a controlled shutdown before secondary damage occurred. Maintenance teams credited the BENTLY 3500/42M 140734-02’s dynamic range and diagnostic fidelity for preventing a $ 10M+ loss.

Another case involved an offshore FPSO in the Gulf of Mexico, where space constraints demanded compact yet robust monitoring. The BENTLY 3500/42M 140734-02’s 4-channel density allowed full X-Y monitoring of three machines in a single 8-slot rack—reducing footprint by 40% versus legacy solutions while meeting DNV-GL marine certification requirements.

Related Product Combination Solutions

BENTLY 3500/15 127610-01: Rack Interface Module that enables communication and configuration of BENTLY 3500/42M 140734-02

BENTLY 3500/32 125810-01: 4-channel relay module that executes alarm/trip actions based on BENTLY 3500/42M 140734-02 outputs

BENTLY 3300 XL 8mm Probes (e.g., 330901-00-05-05-02-05): Standard eddy-current sensors optimized for use with BENTLY 3500/42M 140734-02

BENTLY 3500/25 133340-01: Speed/vibration combo module often paired with BENTLY 3500/42M 140734-02 for torsional analysis

Emerson System 1: Advanced machinery diagnostics platform that ingests high-resolution data from BENTLY 3500/42M 140734-02

BENTLY 3500/50 125940-01: Tachometer input module providing speed reference for order-based analysis of BENTLY 3500/42M 140734-02 signals

BENTLY 3500/12 125840-01: Primary power supply ensuring stable operation of the BENTLY 3500/42M 140734-02 in noisy environments

BENTLY 3500 Chassis (133180-01): Enclosure housing the BENTLY 3500/42M 140734-02 and supporting modules in a unified protection system

Installation, Maintenance, and Full-Cycle Support

The BENTLY 3500/42M 140734-02 installs in seconds—simply slide it into any slot of a 3500 chassis, and it auto-configures via the backplane. No jumpers or DIP switches are needed; all settings (range, alarm levels, filtering) are configured remotely via the 3500/15 module using Rack Configuration Software (RCS) or Emerson System 1. Front-panel LEDs indicate power, OK status, and individual channel faults—accelerating troubleshooting during routine rounds.

We perform rigorous validation on every BENTLY 3500/42M 140734-02. including functional testing with actual 3300 XL probes, verification of buffered output linearity, and alarm response timing under simulated fault conditions. Units are screened for EMI resilience and thermal stability per industrial standards. As part of Baker Hughes’ long-term support strategy, this module remains in active production with guaranteed availability beyond 2030.

All units include a 12-month warranty, full traceability documentation, and optional calibration certificates. Our engineering team offers commissioning support, integration with DCS/PLC trip logic, and migration planning from legacy Bently systems.

Contact us for a customized solution—whether you’re implementing a new machinery protection system, upgrading from 3300 monitors, or securing spares for mission-critical rotating equipment.
