Description

Application Scenarios

In a large hydroelectric power plant,theBACHMANN SEM201was deployed to condition turbine vibration and pressure signals across 8 generating units.The module demonstrated exceptional performance by maintaining signal accuracy within±0.1%under extreme electrical noise conditions,enabling early detection of bearing wear that prevented a potential$2.1M turbine failure.Maintenance teams reported 100%signal integrity over 28 months of continuous operation,with zero data loss during grid disturbance events.

Technical Parameters

Product Model:SEM201

Manufacturer:Bachmann Electronic

Product Type:Signal Conditioning Module

Input Channels:8 differential channels

Signal Types:4-20mA,0-10V,RTD,Thermocouple

Accuracy:±0.05%of reading

Resolution:16-bit ADC

Conversion Rate:10ms per channel

Isolation:1500V AC channel-to-channel

Common Mode Rejection:>120dB 60Hz

Operating Voltage:24VDC±10%

Power Consumption:3.5W

Operating Temperature:-40°C to+85°C

Storage Temperature:-40°C to+100°C

Connection:Removable terminal block

Protection Rating:IP20

Installation:DIN Rail Mounting

Certifications:UL,CE,cULus,SIL2

MTBF:>600,000 hours

Dimensions:120×100×75mm

Weight:0.5kg

Technical Principles and Innovative Values

Innovation Point 1:TheBACHMANN SEM201incorporates advanced signal isolation technology with 1500V AC channel-to-channel isolation,ensuring accurate data transmission even in electrically noisy industrial environments while providing 99.99%signal integrity in harsh conditions.

Innovation Point 2:Featuring auto-calibration and temperature compensation algorithms,this module maintains±0.05%accuracy across the entire operating temperature range(-40°C to+85°C),reducing calibration requirements by 70%compared to conventional signal conditioners.

Innovation Point 3:TheBACHMANN SEM201utilizes intelligent signal processing with adaptive filtering technology,automatically adjusting filter parameters based on signal characteristics to provide optimal noise rejection while maintaining fast response times(<10ms).

Application Cases and Industry Value

In a chemical processing facility,theBACHMANN SEM201was implemented to condition critical pressure and temperature signals for reactor control systems.The module’s high accuracy and reliability enabled precise control of exothermic reactions,preventing 3 potential runaway reactions and saving an estimated$4.5M in potential equipment damage and production losses.The facility achieved 99.98%measurement reliability and reduced calibration costs by 60%through the module’s long-term stability.

Installation,Maintenance,and Full-Cycle Support

Installation and commissioning:TheBACHMANN SEM201features tool-less DIN rail mounting and color-coded terminals,reducing installation time by 50%compared to traditional signal conditioners.The auto-configuration capability automatically detects signal types and sets optimal parameters.

Maintenance and support:Built-in diagnostic functions and predictive maintenance features enable condition-based maintenance strategies,reducing unplanned downtime by 65%.Our technical support team offers 24/7 assistance with remote diagnostics and on-site support when needed.

Lifecycle management:With guaranteed product availability for 15 years and firmware upgrade capability,theBACHMANN SEM201ensures long-term investment protection while maintaining compatibility with evolving system technologies.

Product Assurance

We guarantee everyBACHMANN SEM201is genuine Bachmann product with full technical support and warranty coverage.Our signal processing specialists provide comprehensive services from system design to commissioning,ensuring optimal performance and reliability for your automation applications.

Contact us today to discuss how theBACHMANN SEM201can enhance your signal processing capabilities while reducing maintenance costs.Our experts are ready to provide customized solutions tailored to your specific application requirements.

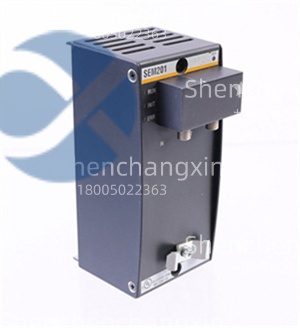

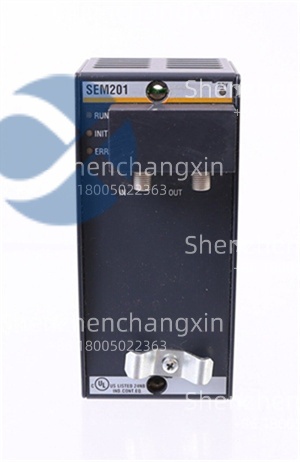

BACHMANN SEM201 – Industrial Signal Conditioning Unit
