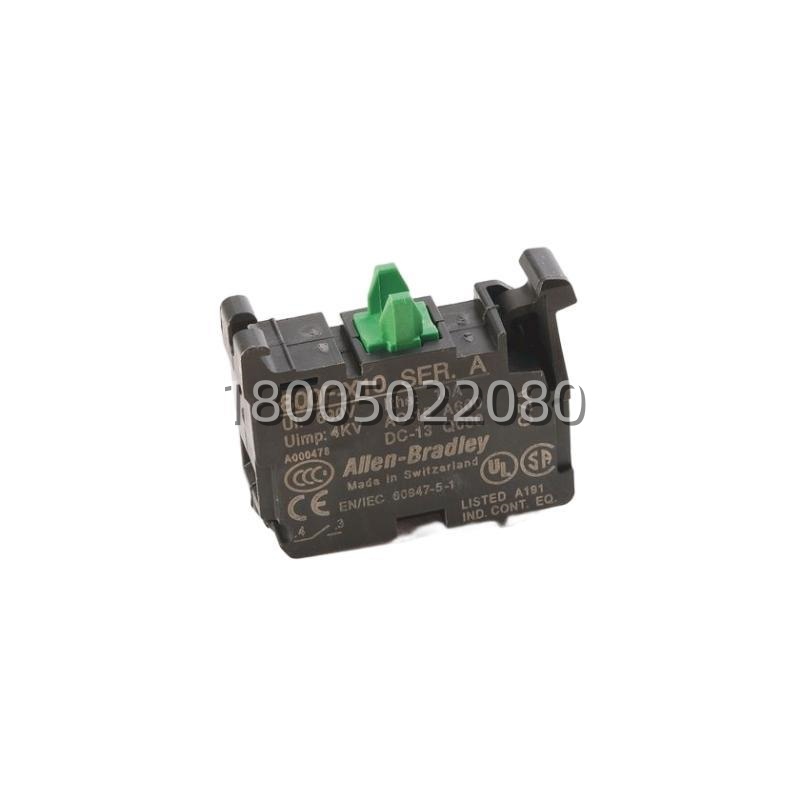

Allen-Bradley 800F-X10 Auxiliary Contact Block 1 Form A SPST

Product Overview

The Allen-Bradley 800F-X10 Contact Block is a fundamental building block of the Rockwell Automation 800F series control station ecosystem. As a modular auxiliary contact block, the 800F-X10 provides a single normally open (1NO) contact that installs seamlessly behind 22.5mm push buttons, selector switches, and other pilot devices. Manufactured by Rockwell Automation under the Allen-Bradley brand, the 800F-X10 enables engineers to expand the functionality of control panels without redesigning the entire operator interface, offering a flexible solution for industrial control applications.

The 800F-X10 Contact Block features a durable thermoplastic housing that delivers superior resistance to heat, impact, and corrosion, ensuring long service life in demanding industrial environments-4 -7. Its latch-mounted, front-facing installation design allows for quick assembly and secure attachment to the main operator device-5 -9. The Allen-Bradley 800F-X10 utilizes screw terminal connections for reliable and straightforward wiring, eliminating the need for specialized installation tools-4 -10. With a compact 22.5 mm footprint, the 800F-X10 fits efficiently into space-constrained panel designs while providing the robust performance expected from Allen-Bradley control components.

The 800F-X10 is part of the broader Bulletin 800F family, which uses state-of-the-art solid modeling techniques and finite element analysis to optimize durability and operational performance-9. As a non-latching, momentary-contact device, the Allen-Bradley 800F-X10 is ideally suited for applications requiring temporary activation of current flow, making it essential for electrical circuit design and control in connection with relays, PLC inputs, and circuit breakers-4 -10

Category: FUJI

Contact Us WhatsApp / Wechat：+8618150087953
Phone：+86 18150087953
Email：sales@cxplcmro.com

Description

Technical Specifications

Parameter Name	Parameter Value
Product Model	800F-X10
Manufacturer	Rockwell Automation / Allen-Bradley
Product Type	Contact Block / Auxiliary Contact Block
Series	800F
Contact Configuration	1 Normally Open (1NO / 1 Form A)
Mounting Type	Front Mount, Latch Mounted
Mounting Hole Size	22.5 mm
Termination Style	Screw Connection
Housing Material	Thermoplastic (Plastic)
Maximum Current Rating	10 A (at 230V AC-15) / 4-5A (Resistive Load)
Maximum Voltage Rating	600 V AC/DC
Contact Material	Silver Alloy with Coating
Mechanical Life	≥ 1 x 10⁶ Operations
Electrical Life	≥ 0.1 x 10⁶ Operations (Resistive Load)
Operating Temperature	-25°C to +70°C
Storage Temperature	-40°C to +85°C
Protection Rating	IP2X (Finger-Safe)
Agency Approvals	UL, CSA, CE, CCC, ATEX, IECEx, ISO 13850
Weight	0.009 kg (0.02-0.04 lbs)
RoHS Status	Compliant (Exempt)

Main Features and Advantages

Modular flexibility and expandability: The Allen-Bradley 800F-X10 enables true modular control panel design, allowing multiple contact blocks to be stacked behind a single operator device to achieve multiple contact configurations without changing the front panel layout-12. This modular approach significantly reduces inventory requirements and simplifies system modifications, as control logic can be expanded or altered by simply adding or replacing contact blocks.

Robust industrial construction: The 800F-X10 is constructed from high-durability thermoplastic material that withstands the rigors of industrial environments-4 -10. With an operating temperature range of -25°C to +70°C and IP2X finger-safe protection, the Allen-Bradley 800F-X10 maintains reliable performance in demanding conditions while ensuring operator safety. The silver alloy contact material provides excellent conductivity and corrosion resistance, ensuring consistent electrical performance over thousands of operations.

Flexible electrical ratings: The 800F-X10 supports a broad voltage range up to 600V AC/DC, making it suitable for diverse control applications from low-voltage PLC inputs to higher-voltage relay control circuits-5. The 10A current rating at AC-15 (230V) provides sufficient capacity for most auxiliary control applications, while the resistive load rating of 4-5A ensures reliable operation with various load types-6 -12.

Standards compliance and global acceptance: The Allen-Bradley 800F-X10 carries multiple international certifications including UL, CSA, CE, CCC, ATEX, and IECEx, demonstrating its suitability for installation in hazardous locations and compliance with global safety standards-7 -12. These certifications simplify system design and approval processes for export-oriented equipment manufacturers.
