Description
Application Scenarios
On a high-speed automotive press line, an improperly wired or low-quality general-purpose relay used in the emergency stop circuit can mask a welded contact fault and allow a dangerous auto-restart after a momentary power blip. By deploying the 700S-DCP1020Z24 with its positively guided (force-guided) safety contacts, the maintenance engineer ensures that if any NO safety contact welds, the associated NC auxiliary contact is mechanically prevented from closing—immediately detectable by the safety PLC or external monitoring device. This guarantees the E-stop loop remains in a safe, de-energized state until a qualified operator performs a deliberate manual reset. In real-world panel designs, the 700S-DCP1020Z24 bridges low-voltage 24 VDC safety-logic circuits and higher-voltage motor starter or contactor control legs, solving the common pain point of needing a robust, NEMA-rated, certified safety relay that can directly handle 600 V control voltage while meeting force-guided contact requirements per IEC 60947-5-1.
Parameter

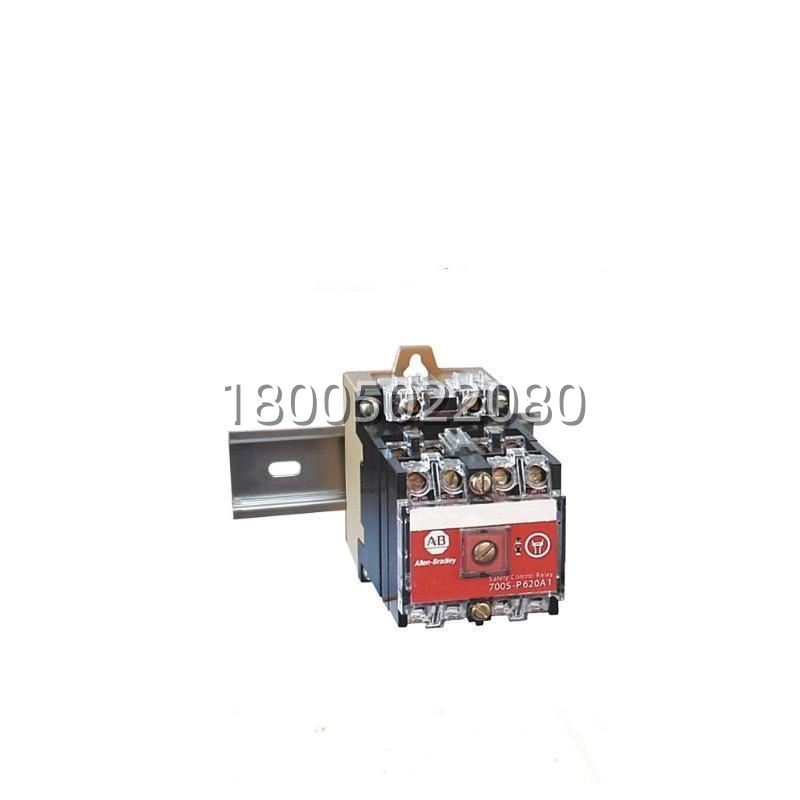

| Main Parameters | Value/Description |
|---|---|
| Product Model | 700S-DCP1020Z24 |
| Manufacturer | Allen-Bradley (Rockwell Automation) |
| Product Category | NEMA 600V Safety / Heavy-Duty Control Relay (Electromechanical) |
| Coil Voltage | 24 V DC — Standard low-voltage control coil for PLC-driven or safety-module-driven actuation |
| Contact Configuration | 12 Poles: 10 N.O. (Normally Open) + 2 N.C. (Normally Closed) — ample points for multi-channel safety loops and status feedback |
| Contact Rating (Thermal / Continuous) | 10 A @ 600 V AC / 250 V DC (resistive load) — NEMA-rated for direct control-circuit switching |
| Rated Insulation Voltage (Ui) | 600 V — Suitable for North American and international 480/600 V control systems |
| Contact Type | Force-Guided / Positively Driven Contacts — Prevents NO/NC closure conflict; required for safety-circuit monitoring |
| Mounting Method | Open-type, DIN rail mount or panel mount with adapter — 35 mm DIN rail compatible |
| Connection Type | Screw terminals — Accepts #18 AWG to (2) #12 AWG per UL/CSA |
| Mechanical Life | 10,000,000 operations — Ensures long service life in frequently cycled applications |
| Operating Temperature | –20 °C to +55 °C (–4 °F to +131 °F) — Suitable for most industrial cabinet environments |
| Certifications | UL 508, CSA C22.2 No. 14, CE, IEC 60947-5-1 (force-guided contacts) — Supports ISO 13849 Cat. up to 4 / PL e with proper wiring |
Technical Principles and Innovative Values
Innovation Point 1 — Positively driven (force-guided) contact mechanism: The 700S-DCP1020Z24 incorporates Allen-Bradley’s force-guided contact design where the NO and NC contacts share a common mechanical linkage. If an NO contact welds due to short-circuit or overload, the NC contact is physically blocked from closing, allowing external monitoring (via a safety PLC or second relay) to detect the fault condition. This is a fundamental hardware requirement for building Category 3/4 safety circuits per ISO 13849-1.Innovation Point 2 — High-density 12-pole configuration in a single NEMA-rated body: Unlike standard 4- or 8-pole relays, the 700S-DCP1020Z24 provides 10 NO + 2 NC contacts, enabling a single device to handle multiple safety interlocks, reset logic, and auxiliary status signaling without adding extra interposing relays—reducing panel space, wiring complexity, and points of failure.Innovation Point 3 — 600 V NEMA insulation rating with 24 VDC low-power coil: Many safety relays are limited to 250–300 V contact ratings. The 700S-DCP1020Z24 is rated to 600 V AC/DC, allowing it to directly interrupt or switch motor-starter control circuits and 480 V class control legs while being driven from a standard 24 VDC safety output or PLC digital output, eliminating the need for an intermediate contactor.Innovation Point 4 — Proven electromechanical robustness with 10 M cycle mechanical life: The silver-alloy contact tips and hardened armature assembly are engineered for continuous-duty industrial environments. The 700S-DCP1020Z24 maintains consistent pickup/dropout characteristics across its full temperature range, minimizing nuisance trips caused by coil-voltage drift.
Application Cases and Industry Value
In a Tier-1 food & beverage bottling plant undergoing a safety-compliance audit, the original E-stop and guard-door monitoring loops used generic 4-pole control relays with no force-guided contacts, which the third-party safety auditor flagged as non-conforming for Category 3. The retrofit solution replaced those relays with 700S-DCP1020Z24 units—one relay per packaging zone—wired so that two NO poles monitor the dual-channel E-stop input, two NO poles control the zone enable output, and one NC pole feeds back to the main safety PLC for contact-weld detection. The upgrade required no changes to the existing 24 VDC safety module outputs or 480 V motor-starter control wiring because the 700S-DCP1020Z24 accepts both voltage levels natively. Post-retrofit, the plant passed its ISO 13849-1verification with documented Category 3 / PL d performance, reduced spare-part SKU count (one model fits all zones), and reported zero contact-weld-related nuisance faults in the first 18 months of operation.Similarly, in a metal-stamping facility, the 700S-DCP1020Z24 was deployed in a light-curtain interlocking scheme where its 12 contact poles allowed a single relay to manage light-curtain reset, muting logic, and dual-motor-stop commands simultaneously. The maintenance supervisor noted a measurable reduction in troubleshooting time because the screw-terminal layout and clear pole numbering simplified wiring verification during annual safety inspections.
