Description
Application Scenarios
A leading OEM of food-grade conveyor systems was facing a growing challenge: their installed base of PowerFlex 4-class drives (including the legacy 22A-D4P0N104) was reaching end-of-life, and their panel shops needed a direct evolutionary replacement that preserved the same physical footprint while unlocking modern control capabilities. By standardizing on the 25A-D6P0N104 across their 3 HP conveyor and accumulation belt applications, the OEM achieved a seamless transition. The drive’s integral RS485 interface with Modbus RTU enabled immediate networking with their ControlLogix L8 platform, while the 25A-D6P0N104‘s built-in dynamic braking transistor eliminated the need for external braking modules on high-inertia conveyor stops. The Smart Start-Up feature with Basic Program Group parameters, accessible via the standard HIM, allowed their field technicians to commission drives in under 4 minutes — no Connected Components Workbench (CCW) software required for typical jobs. Critically, because the 25A-D6P0N104 remains an active Rockwell product with standard 1-year warranty and 5-day factory lead time, the OEM secured a long-term sparing strategy that protects their customers’ investments for the next decade. This case illustrates how the 25A-D6P0N104 resolves the core pain point for machine builders: a future-proof, compact, and software-flexible drive that grows with the machine’s connectivity requirements.
Parameter
| Main Parameters | Value/Description |
|---|---|

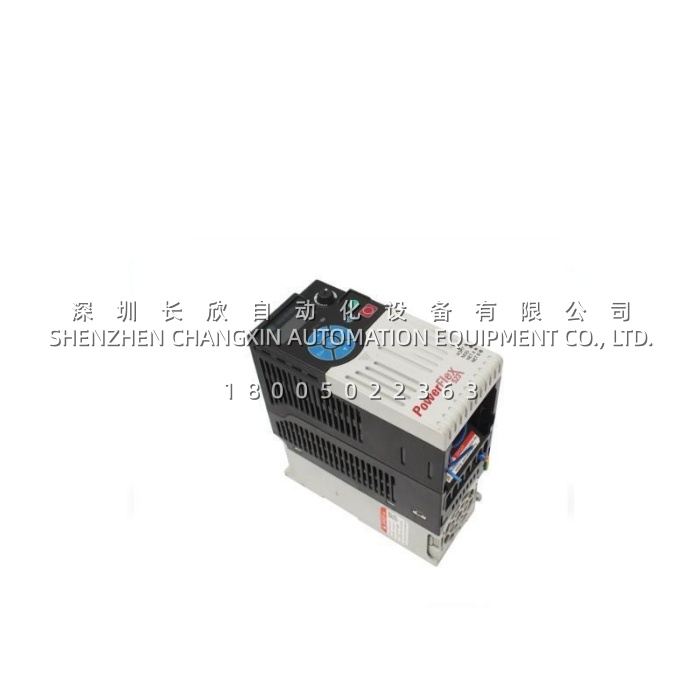

| Product Model | 25A-D6P0N104 |
| Manufacturer | Rockwell Automation (Allen-Bradley) |
| Product Category | AC Variable Frequency Drive (VFD) |
| Drive Series | PowerFlex 523 (PowerFlex 520-family) |
| Lifecycle Status | Active / Sellable, Repair & Replace program available |
| Input Voltage | 380–480 V AC, 3-phase, 50/60 Hz (range 323–528 V AC) |
| Output Current | 6.0 A continuous |
| Power Rating (Normal Duty) | 2.2 kW / 3 HP |
| Power Rating (Heavy Duty) | 1.1 kW / 1.5 HP |
| Output Frequency | 0–500 Hz programmable |
| Control Methods | V/Hz, Sensorless Vector Control, PID Control |
| Communication | Integral RS485 / Modbus RTU; optional EtherNet/IP, DeviceNet, PROFIBUS DP adapters |
| I/O Configuration | 5 digital inputs, 1 analog input (0–10 VDC / 0–20 mA), 1 analog output, 2 digital outputs |
| Braking | Built-in dynamic braking transistor |
| Safety | Safe Torque Off (STO) support |
| Enclosure Rating | IP20 / NEMA Type Open |
| Frame Size | Frame A |
| Mounting | Panel mount or 35 mm DIN rail |
| Dimensions (H×W×D) | 172 × 72 × 152 mm |
| Weight | Approximately 1.2 kg |
| Operating Temperature | -20 °C to +50 °C |
| Certifications | UL, cUL, CE, UKCA, C-Tick, RoHS |
Technical Principles and Innovative Values
- Innovation Point 1: Triple-Mode Motor Control in a Compact Frame. The 25A-D6P0N104 delivers three distinct control algorithms — V/Hz for simple fan/pump loads, sensorless vector control for demanding variable-torque applications, and PID control for closed-loop process regulation — all within the same Frame A housing. This flexibility allows machine builders to deploy a single drive model across diverse applications, dramatically simplifying spare parts inventory and technician training.
- Innovation Point 2: Native RS485 with Modular Network Expansion. Unlike the PowerFlex 4 predecessor, the 25A-D6P0N104 ships with integral RS485 communication supporting Modbus RTU out of the box. For plants migrating to Industrial IoT architectures, optional plug-in adapters enable EtherNet/IP, DeviceNet, or PROFIBUS DP connectivity — making the drive a future-proof investment that evolves with the network without replacing the power platform.
- Innovation Point 3: Built-In Dynamic Braking & Safe Torque Off. The 25A-D6P0N104 integrates a dynamic braking transistor on-board, eliminating external braking modules for controlled deceleration of high-inertia loads such as conveyors and centrifuges. Additionally, native Safe Torque Off (STO) support provides SIL-rated safety functionality, allowing the drive to participate in modern safety circuits without auxiliary contactors.
- Innovation Point 4: Smart Start-Up with Basic Program Group. The 25A-D6P0N104 clusters the ten most frequently used parameters into an intuitive Basic Program Group, accessible directly from the standard HIM interface. Combined with the quick-view LCD display, this innovation enables out-of-the-box commissioning in under 5 minutes, reducing panel shop labor and eliminating dependency on specialized software for routine deployments.
