Description
Application Scenarios

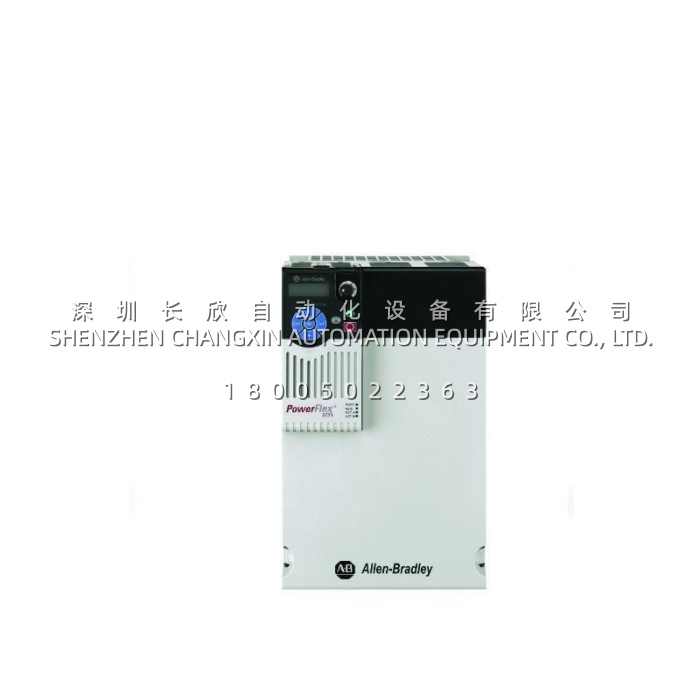

Picture a small packaging line where a conveyor belt must ramp up smoothly to avoid product jams and stop precisely to align boxes. The Allen‑Bradley 25A‑D4P0N114 is mounted inside the control panel, directly driving the 1.5 kW conveyor motor. Thanks to its sensorless vector control, the drive adjusts torque automatically as box load varies, ensuring consistent throughput without overspeed or stalls. Operators can fine‑tune acceleration and deceleration via the built‑in USB port in minutes—without needing a separate programming device. The 25A‑D4P0N114 solves the core pain points of limited panel space (Frame A, 72 mm wide) and budget constraints, delivering reliable motor control at a competitive price point . In a small fan or pump application, its built‑in PID control can regulate airflow or fluid pressure directly, eliminating the need for an external controller.
Parameters
| Main Parameters | Value/Description |
|---|---|
| Product Model | 25A-D4P0N114 |
| Manufacturer | Allen‑Bradley (Rockwell Automation) |
| Product Category | AC Drive / Variable Frequency Drive (VFD) |
| Power Rating | 1.5 kW / 2 Hp (Normal & Heavy Duty) |
| Output Current | 4.0 A |
| Input Voltage | 380‑480V AC, 3‑phase, 50/60 Hz |
| Frame Size | Frame A |
| Enclosure Rating | IP20 / NEMA Open Type |
| Output Frequency | Up to 500 Hz |
| Integrated EMC Filter | Yes (filtered version) |
| Communication Ports | 1× RS485 (DSI), 1× USB |
| Control Method | Volts/Hertz, Sensorless Vector Control, SVC with Economizer |
| Dimensions (W×H×D) | 72 × 152 × 212 mm |
| Operating Temperature | Up to 70 °C (158 °F) with derating |
| Mounting | Side‑by‑side mounting with 50 mm air‑flow gap |
Technical Principles and Innovative Values
- Innovation Point 1: Modular Removable Control Core. The Allen‑Bradley 25A‑D4P0N114 features an innovative modular design with a removable control core . This allows the control module to be installed and configured separately from the power section, reducing cabinet downtime during setup or replacement. Technicians can pre‑program parameters offline and simply plug the core into the drive at installation.
- Innovation Point 2: Integrated USB Programming. Unlike many competitive drives that require a dedicated keypad or software dongle, the 25A‑D4P0N114 provides a standard USB port for direct connection to a laptop . This eliminates the need for a separate programming device and simplifies initial configuration, parameter backup, and firmware updates using Rockwell’s Connected Components Workbench software.
- Innovation Point 3: Sensorless Vector Control with Economizer Mode. The PowerFlex 523 supports sensorless vector control (SVC), which provides high torque at low speeds without an encoder—ideal for conveyors and hoists . The Economizer mode further reduces energy consumption in variable‑torque applications like fans and pumps by automatically lowering magnetizing current when the motor is lightly loaded, achieving up to IE2 efficiency class per IEC 61800‑9‑2 .
- Innovation Point 4: High Ambient Temperature Capability. The 25A‑D4P0N114 operates reliably in ambient temperatures up to 70 °C (158 °F) with appropriate derating . This is a significant advantage in compact panels or hot industrial environments where other drives would derate or fault prematurely.
