Description

Application Scenarios

In a busy packaging plant, a conveyor line running at variable speeds is controlled by a PLC that adjusts motor speed based on product flow. The original drive fails after years of service, and production is at risk. By replacing it with the Allen‑Bradley 25A-D017N114, the maintenance team restores full speed control within minutes. The drive’s USB programming port allows them to quickly upload the existing configuration using Connected Components Workbench software, eliminating the need for complex re‑commissioning.

Consider a small water pumping station where three pumps maintain pressure in a municipal supply line. The Allen‑Bradley 25A-D017N114 is installed to drive one of the pumps, with its built‑in PID loop automatically adjusting pump speed to maintain constant pressure. When the pump’s duty cycle changes, the Allen‑Bradley 25A-D017N114 seamlessly adapts, saving energy and reducing mechanical stress. The drive’s sensorless vector control ensures stable torque even at low speeds, a critical feature for reliable pump operation.

Key Parameters

Parameter	Value/Description

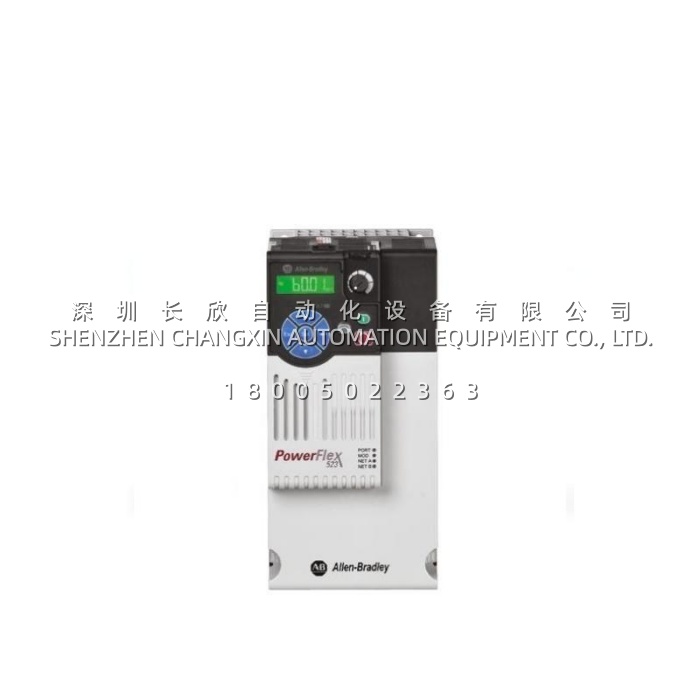

Product Model	25A‑D017N114
Manufacturer	Allen‑Bradley / Rockwell Automation
Product Series	PowerFlex 523
Input Voltage	380‑480V AC, 3‑Phase, 50/60 Hz
Output Current	17 A
Rated Motor Power	7.5 kW / 10 HP (Normal Duty & Heavy Duty)
Maximum Output Frequency	500 Hz
Control Methods	Volts per Hertz (V/Hz), Sensorless Vector Control
Integrated Communication	1x RS‑485 (DSI), 1x USB
Enclosure Protection	IP20 NEMA / Open Type
Dimensions (H x W x D)	220 x 109 x 184 mm (Frame C)
Operating Temperature	Up to 70 °C with derating

Technical Principles and Innovative Values

Innovation Point 1: Modular Design with Removable Control Core
The Allen‑Bradley 25A-D017N114 features a detachable control module that can be removed and configured independently of the power module. This allows engineers to program the drive at their desk using a standard USB cable, then install it on the machine without needing to power up the drive. This “MainsFree” setup significantly reduces installation time and eliminates the need for a live commissioning session on the plant floor.

Innovation Point 2: Flexible Control Algorithms
The Allen‑Bradley 25A-D017N114 supports both Volts per Hertz (V/Hz) and Sensorless Vector Control (SVC). V/Hz is suitable for simple fan and pump applications, while SVC provides superior torque control for demanding conveyor and material handling applications. The ability to select the optimal control method for the specific motor and load ensures maximum efficiency and performance.

Innovation Point 3: Built‑In EMC Filter and RS485 Communication
The Allen‑Bradley 25A-D017N114 includes an integrated filter to manage electromagnetic interference (EMI), simplifying compliance with EMC standards. The drive also provides an integrated RS485 (DSI) port for low‑cost networking, allowing multiple drives to be controlled via Modbus or other protocols without the need for expensive communication option cards.

Innovation Point 4: Zero Stacking Mounting
The Allen‑Bradley 25A-D017N114 supports side‑by‑side (Zero Stacking™) mounting at ambient temperatures up to 45 °C, with only a 50 mm air‑flow gap required at the top and bottom. This compact footprint minimizes cabinet space requirements, a critical advantage in crowded control panels.
