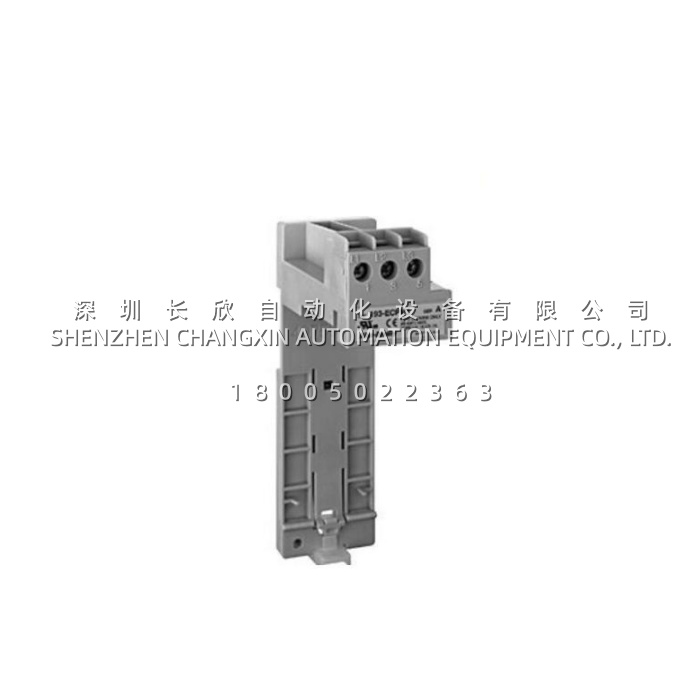

Allen-Bradley 193-ECPM3​ E3 Plus Panel Mount Adapter for 193-EC_E Overload Relays

Description

Application Scenarios:

A water treatment plant runs a series of 45 kW pump starters in a lineup of motor control centers. Each bucket has a 100-C72 contactor at the back of the compartment and an E3 Plus relay clipped directly onto it — which means the relay’s backlit LCD, its full-load current setting and its trip history are all sitting behind a bolted door, in a compartment that cannot be opened without arc-flash PPE and a qualified electrical worker under a permit. When a pump trips on jam at 2 a.m., night shift has no way to read why. They call an electrician, the electrician suits up, and a ten-second diagnostic becomes a forty-minute procedure — repeated across dozens of starters.This is the specific problem 193-ECPM3​ solves. By moving the E3 Plus relay to the compartment door, 193-ECPM3​ makes the display, the keypad and the reset function accessible from outside the enclosure, so an operator can read percent thermal capacity utilization, check the last trip cause and reset without opening a live compartment. The pain point is not protection capability — the relay already had that — it is accessibility, and the labour, PPE burden and deferred diagnosis that come with burying an intelligent device where nobody can see it.

Parameter:

Technical Principles and Innovative Values:

• Innovation Point 1 — Decoupling the intelligence from the contactor: In a conventional starter the overload relay is mechanically wedded to the contactor, which means the device with the display and the diagnostics inherits the worst possible location in the cabinet. 193-ECPM3​ breaks that coupling. The intelligent E3 Plus relay moves to the panel face where a human can read it, while the contactor stays on the backplate where its heat and its switching duty belong. The protection function is unchanged; the human-machine interface is transformed.
• Innovation Point 2 — The adapter carries the power, not just the bracket: This is what separates 193-ECPM3​ from a generic mounting plate. It incorporates line-side and load-side power conductor terminals rated for the full 18–90 A path, so the adapter is an active part of the power circuit rather than a passive standoff. That is also why the terminal torque specification is a genuine 35 in-lb — these are power terminations, and the adapter is engineered for the thermal and mechanical duty of carrying motor current continuously.
• Innovation Point 3 — Alignment preserved across a remote mount: Remote-mounting an overload relay introduces a real failure mode: if the relay is not held in precise relationship to the contactor’s trip actuator and reset mechanism, the assembly can fail to trip or fail to reset — a silent, dangerous defect. 193-ECPM3​ is engineered with positive alignment and latching geometry so the relay seats in a defined position and the mechanical relationship to the actuator stays intact. The adapter solves the mounting problem without introducing a new one.
• Innovation Point 4 — Dual mounting from a single part number: 193-ECPM3​ supports both drilled-panel screw mounting and 35 mm top-hat rail mounting. For a panel builder this removes a decision from the bill of materials and removes custom bracket fabrication from the scope; for a field retrofit it means the same part works whether the target is a door, a backplate or an existing rail. Standardization across a fleet is worth more than the part itself.
• Innovation Point 5 — Sized deliberately, not universally: The ECPM family is split by frame — 193-ECPM1​ for the B frame (100-C09…C23), 193-ECPM2​ for the D and Z frames (100-C30…C43), 193-ECPM3​ for the E frame (100-C60…C85). That deliberate segmentation is why 193-ECPM3‘s terminals are rated #12–#1 AWG at 35 in-lb rather than the #14–#8 AWG at 16 in-lb of the smaller ECPM1. The consequence for buyers is straightforward and worth stating plainly: the suffix must match the frame, because a mechanically similar adapter with undersized terminals is a heat source waiting for a load.
• Innovation Point 6 — A twenty-year installed base that refuses to disappear: Because E3 and E3 Plus relays were specified across water, wastewater, mining, petrochemical and material-handling installations for two decades, 193-ECPM3​ sits in a very large number of operating MCCs. Rockwell discontinued it on 31 October 2019 and lists no like-for-like replacement category — which is precisely why verified new-surplus stock has strategic value. A plant that needs one to complete a spare bucket or restore a damaged door assembly often has no alternative to the secondary market.
