Description

Application Scenarios

A large‑scale mining operation faced persistent communication failures between their primary control center and a remote conveyor belt system located 1.5 kilometers away. The existing copper‑based Ethernet links were susceptible to electromagnetic interference from high‑voltage motor cables and frequent lightning strikes, causing packet loss and intermittent PLC communication dropouts. Plant engineers deployed the Allen‑Bradley 1783‑SFP100FX transceivers in Stratix switches at both ends of the link, connected via duplex multimode fiber optic cable. The fiber link instantly eliminated the noise issues, providing stable, high‑integrity communication with zero packet loss over the 1.5‑km distance. The system has operated without a single communication‑related stoppage for over 18 months.

This scenario demonstrates why the 1783‑SFP100FX is an essential component for extending reliable Ethernet connectivity in challenging industrial settings—from petrochemical plants and water treatment facilities to large warehousing and logistics centers where distances and electrical noise compromise copper cabling.

Parameters

Main Parameters	Value/Description

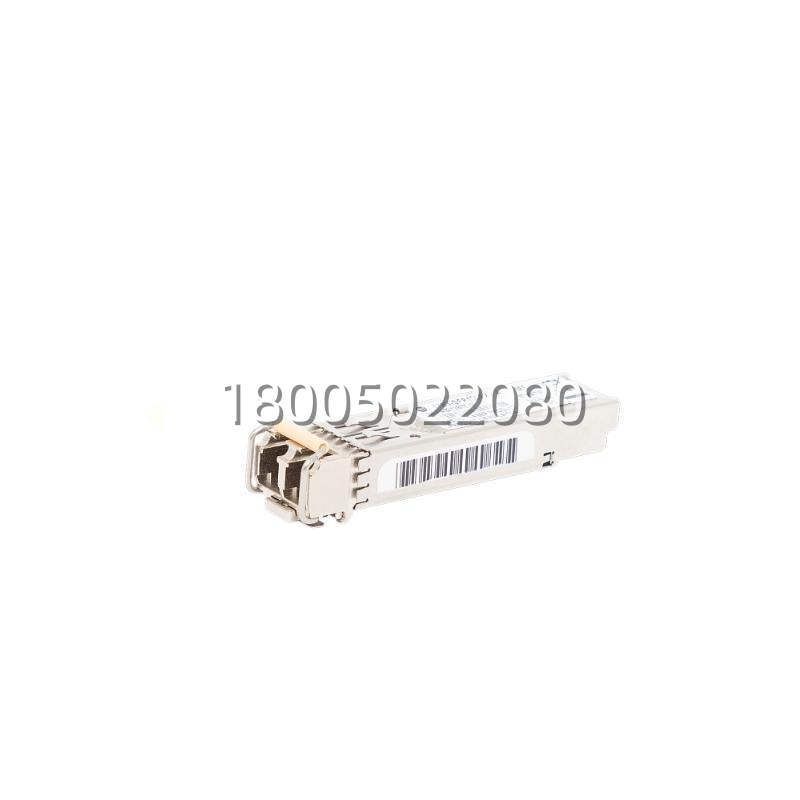

Product Model	1783‑SFP100FX (also available as 1783‑SFP100FX‑AO compatible variant)
Manufacturer	Allen‑Bradley / Rockwell Automation
Product Category	SFP Fiber Optic Transceiver Module
Data Rate	100 Mbps (100BASE‑FX Fast Ethernet)
Fiber Type	Multimode Fiber (MMF), 50/125 µm or 62.5/125 µm core/cladding -3 -6
Wavelength	1310 nm -3 -4
Maximum Cable Distance	2 km (6562 ft) with 500 MHz/km modal bandwidth -3
Connector Type	Dual LC Duplex Connector -3 -4
Operating Temperature	Industrial: ‑40°C to +85°C; Extended: ‑5°C to +85°C (see variant) -3
Digital Optical Monitoring (DOM)	Supported – enables real‑time parameter monitoring -3 -4
Hot‑Swappable	Yes – pluggable SFP form factor -2
Compliance	MSA Standards (INF‑8074, SFF‑8472), TAA Compliant (selected variants) -2 -4
Compatible Platforms	Stratix 8000, 8300, 5700, and other MSA‑compliant switches -12
Voltage Supply	3.3V -10

Technical Principles and Innovative Values

Innovation Point 1: Industrial‑Grade Optoelectronics for Harsh Environments

The 1783‑SFP100FX is engineered with robust optical components that maintain signal integrity across extreme temperature ranges (‑40°C to +85°C). Unlike commercial‑grade transceivers that degrade in high‑temperature or vibration‑prone industrial settings, this SFP module delivers consistent 100Mbps performance in factory floors, outdoor cabinets, and mobile equipment. Its excellent ESD protection and metal housing with low EMI emissions ensure reliable operation even alongside variable‑frequency drives and high‑power switching equipment -2.

Innovation Point 2: Digital Optical Monitoring (DOM) for Predictive Maintenance

The 1783‑SFP100FX incorporates DOM functionality, providing real‑time access to critical operating parameters such as optical output power, received optical power, temperature, voltage, and bias current -3 -4. This enables network administrators to monitor fiber link health proactively, detect degradation trends, and replace transceivers before failures occur—significantly reducing unplanned downtime in mission‑critical applications.

Innovation Point 3: MSA Compliance with Stratix Ecosystem Integration

Designed to meet MSA (Multi‑Source Agreement) standards, the 1783‑SFP100FX ensures seamless interoperability with Stratix managed switches and other MSA‑compliant networking equipment -2. It is uniquely serialized and application‑tested to guarantee identical initialization and performance to Allen‑Bradley original equipment, eliminating compatibility concerns when deployed in Rockwell Automation control networks.

Innovation Point 4: Extended Reach over Multimode Fiber

The 1783‑SFP100FX achieves a 2‑km transmission distance over multimode fiber, far exceeding the 100‑meter limit of copper Ethernet -3 -4. This eliminates the need for media converters or repeaters in most industrial plant‑wide network architectures, reducing hardware costs and
