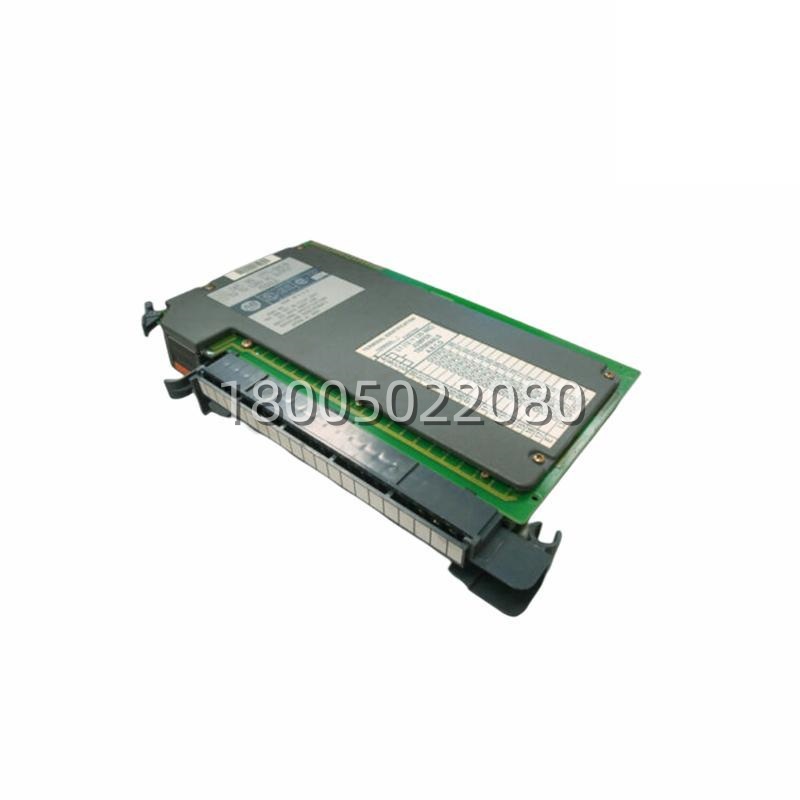

Description
Application Scenarios
At a mid‑sized automotive parts plant, a PLC‑5 system controlling a pallet conveyor line began experiencing intermittent failures on a bank of 120V AC contactors. The legacy output module was showing signs of age, with two channels failing to energize consistently. The maintenance team sourced a 1771-OAD as a direct replacement. After installation and simple keying verification, the conveyor line was restored to full operation. The module’s zero‑crossing turn‑on reduced the contactor chatter that had plagued the previous unit, and the individual channel LED indicators gave technicians immediate visual confirmation of output status during troubleshooting. The plant reported that the 1771-OAD performed flawlessly through two production shifts, and the 25A surge capacity comfortably handled the inrush current of multiple motor starters -2.
For system integrators maintaining legacy equipment, the 1771-OAD addresses a critical challenge: keeping PLC‑5‑based systems operational without a costly full‑scale migration. The module’s compatibility with all PLC‑5 processors and most 1771 I/O chassis allows engineers to replace failed output modules quickly, minimizing downtime. Its optional fused field wiring arm (1771‑WHF) provides individual circuit protection, simplifying fault isolation and reducing the risk of cascading failures. For facilities planning eventual modernization, the 1771-OAD can be paired with a 1492‑CM1771‑LD006 field conversion module to interface with a modern 1756‑OA16 ControlLogix output module, offering a bridge between legacy and current architectures -8.
Parameters
| Main Parameters | Value/Description |
|---|---|
| Product Model | 1771-OAD (Series B or C) |
| Manufacturer | Allen‑Bradley / Rockwell Automation |
| Product Category | Digital AC Output Module (Discrete) |
| Outputs per Module | 16 (isolated solid‑state AC outputs) |
| Output Voltage Range | 10 to 138V AC @ 47–63Hz |
| Output Current Rating | 2A per output; 8A maximum per module |
| Surge Current | 25A per output for 100ms, repeatable every 1s -2 |
| Minimum Load Current | 5mA per output |
| On‑State Voltage Drop | 1.5V @ >50mA; 5.8V @ <50mA |
| Off‑State Leakage | 3.0mA max @ 138V AC |
| Signal Delay (Off→On) | Zero‑crossing: 8.3ms @ 60Hz / 10.0ms @ 50Hz |
| Backplane Current Draw | 295mA @ 5V DC |
| Isolation Voltage | Tested at 2500V DC for 1 second (UL/CSA) |
| Fuse Type | 10A, 250V rectifier fuse (Littelfuse 322010) |
| Field Wiring Arm | Standard: 1771‑WH; Optional fused: 1771‑WHF -2-4 |
| Compatible Chassis | 1771‑A1B through -A4B, 1771‑AM1, -AM2 (not A1/A2/A4) -2 |
Technical Principles and Innovative Values
- Innovation Point 1: Zero‑Crossing Switching Technology – The 1771-OAD employs zero‑crossing detection to turn the output on only when the AC waveform crosses near zero volts (typically 40‑50V). This significantly reduces inrush current stress on contacts and sensitive loads such as incandescent indicators, extending the service life of both the module and the connected devices -2-12. For applications driving full‑wave rectified loads, a shunt resistor may be added to ensure proper turn‑off.
- Innovation Point 2: Comprehensive Protection and Diagnostics – Each output channel is protected by an onboard 10A rectifier fuse -2. An optional fused field wiring arm (1771‑WHF) provides per‑point fusing, allowing individual circuit protection without removing the module. The front panel features 32 LED indicators: 16 for output status (red) and 16 for module active status (green), plus a dedicated fuse‑blown indicator that simplifies troubleshooting -2. The module can be configured for standard or CSI (Current Source Interface) mode via jumper selection.
- Innovation Point 3: High‑Surge Capability and Wide Voltage Range – With a 25A surge rating per output and compatibility across 10‑138V AC, the 1771-OAD is suitable for driving inductive loads with high inrush current, such as motor starters and solenoids. The module can directly drive a Size 2 starter motor when supply voltage is above 120V AC -2-5. The 8A total module current limit ensures thermal reliability even when multiple outputs are energized simultaneously.
- Innovation Point 4: Seamless Integration with PLC‑5 and Modernization Paths – The 1771-OAD is fully compatible with the PLC‑5 processor family and most 1771 I/O chassis (except early A1/A2/A4 models) -2. Its keying capability allows slots to be keyed to accept only this module type, preventing installation errors. For modernisation, the 1492‑CM1771‑LD006 conversion module enables direct interfacing from the 1771-OAD to a 1756‑OA16 ControlLogix output module, preserving field wiring and reducing migration costs -8.
- Innovation Point 5: Optical Isolation and Noise Immunity – The 1771-OAD provides electrical‑optical isolation between the backplane logic and the field side, tested at 2500V DC -2. This isolation, combined with internal filter circuits, protects the PLC‑5 processor from field wiring faults and electrical noise, ensuring reliable operation in industrial environments with high electromagnetic interference.
