Description

Application Scenarios

Consider a machine builder tasked with designing a high‑speed packaging line that requires precise multi‑axis motion control, temperature monitoring, and high‑speed counting—all within a limited panel footprint. The 1769‑L27ERM‑QBFC1B rises to the challenge. Its embedded 4 universal analog inputs can directly accept thermocouple or RTD signals for temperature sensing, while the 4 high‑speed counters track encoder pulses for cut‑to‑length registration-3 -5 -10. The controller supports up to 4 axes of CIP Motion over EtherNet/IP, allowing it to synchronize servo drives like the Kinetix 350 without the need for dedicated motion modules, saving panel space and reducing system cost-5 -10. The dual EtherNet/IP ports with Device‑Level Ring (DLR) capability provide network resiliency, ensuring that a single cable break doesn’t halt production—a critical feature for continuous operations-5 -12.

For a material handling system integrator, the 1769‑L27ERM‑QBFC1B provides an all‑in‑one solution. The 16 DC inputs and 16 DC outputs handle the discrete sensors and actuators for conveyor sections, while the universal analog I/O manages variable‑speed drives and pressure sensors. The controller’s open socket capability supports Modbus TCP, enabling communication with barcode readers, printers, and other third‑party devices, creating a connected, data‑rich environment-5 -7. With support for up to 4 local 1769 I/O expansion modules, the system can grow with the application-5 -12.

Parameter

Main Parameters	Value/Description

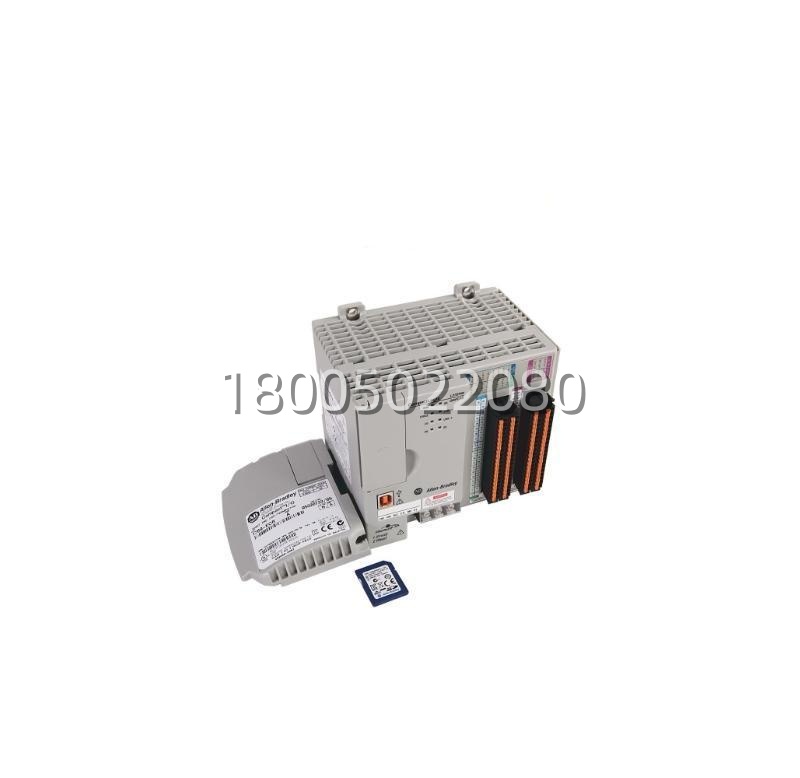

Product Model	1769-L27ERM-QBFC1B
Manufacturer	Allen‑Bradley / Rockwell Automation
Product Category	Programmable Automation Controller (PAC)
Product Series	CompactLogix 5370 L2
User Memory	1 MB (program, tags, I/O data) -3 -12
Embedded Digital Inputs	16 points, 24V DC, sinking/sourcing-1 -3
Embedded Digital Outputs	16 points, 24V DC, sourcing-1 -3
Embedded Analog Inputs	4 universal inputs (differential or single‑ended), supports thermocouple (J, K, T, E, R, S, B, N, C), RTD (Platinum, Copper, Nickel), voltage, and current-3
Embedded Analog Outputs	2 single‑ended, configurable for 0‑10V, ±10V, 0‑20mA, 4‑20mA-3
High‑Speed Counters	4 channels-1 -3 -12
Integrated Motion (CIP)	Supports up to 4 axes of CIP Motion; up to 16 axes over Ethernet-1 -5 -10
Communication Ports	2 x EtherNet/IP (with DLR capability), 1 x USB-3 -6 -12
Power Supply	Embedded, 24V DC-1 -12
Local I/O Expansion	Up to 4 modules-2 -12
Network Nodes (EtherNet/IP)	16 nodes / 120 TCP connections-2 -12
Memory Card	1 GB Secure Digital (SD) card included; supports up to 2 GB-1 -5 -12
Programming Languages	Relay Ladder, Structured Text, Function Block, SFC-3
Mounting	DIN Rail (35mm) or Panel mount-3
Operating Temperature	0…60 °C-3

Technical Principles and Innovative Values

Innovation Point 1: Integrated Motion over EtherNet/IP with Kinematics
The 1769‑L27ERM‑QBFC1B distinguishes itself by embedding CIP Motion capabilities directly into the controller, eliminating the need for separate motion modules. This integration supports up to 4 motion axes and includes kinematics functionality, allowing the controller to manage coordinated multi‑axis movements such as those required for packaging, hoisting, and indexing tables without additional robot controllers-5 -7. This unified architecture reduces hardware costs and simplifies programming through a single environment—RSLogix 5000.

Innovation Point 2: Device‑Level Ring (DLR) for Resilient Networks
The dual EtherNet/IP ports feature an integrated switch that enables DLR network topologies. This provides a critical advantage: if a single network connection fails, the ring topology automatically reroutes traffic, maintaining communication and preventing production stoppages-5 -7. This reduces the need for external switches and enhances system reliability, particularly valuable in high‑availability lines.

Innovation Point 3: Battery‑Less Operation and Removable SD Card
The 1769‑L27ERM‑QBFC1B incorporates built‑in energy storage for program retention, eliminating the maintenance and environmental concerns associated with lithium batteries-5 -7. The removable 1GB SD card improves data integrity, simplifying program backup, controller replacement, and firmware updates. In the event of a controller failure, a new unit can be brought online in minutes by simply inserting the SD card—an invaluable feature for minimizing downtime-1 -5.

Innovation Point 4: High‑Resolution Universal Analog I/O
The 4 universal analog inputs are not limited to standard voltage and current signals; they support direct connection to thermocouples and RTDs, providing high‑resolution temperature measurement without external signal conditioners-3 -5. This reduces component count, panel space, and potential failure points, while the 2 universal analog outputs offer flexible signal types to drive a range of actuators, from standard 4‑20mA valves to ±10V servo inputs.
