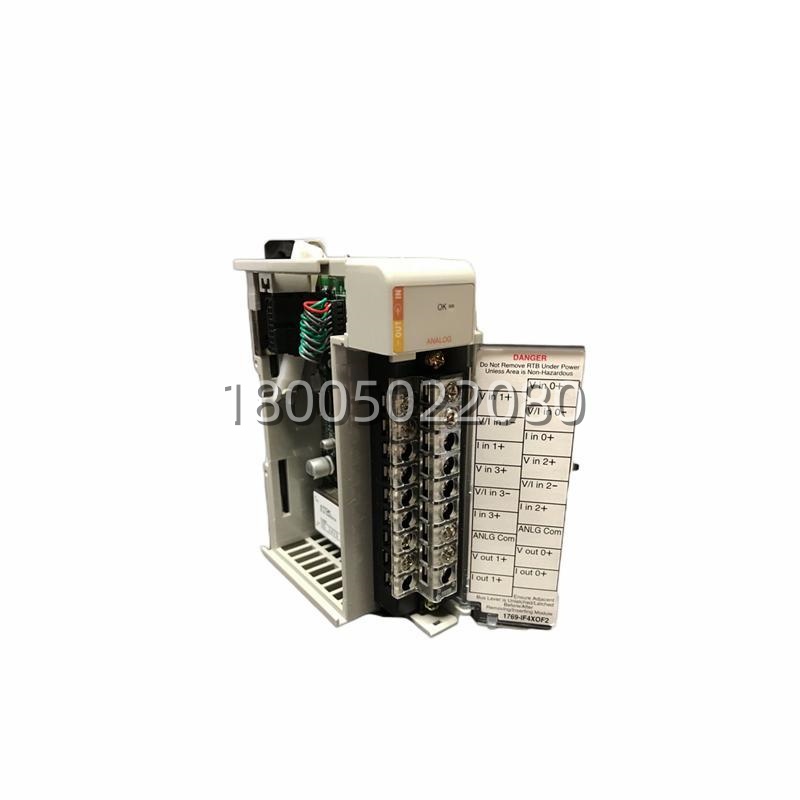

Allen‑Bradley 1769‑IF4XOF2​ 4‑Channel Analog Input / 2‑Channel Analog Output Module for CompactLogix 1769 Series

Description

Technical Specifications

Main Features and Advantages

Integrated input/output in one slot: The 1769‑IF4XOF2​ combines four analog inputs and two analog outputs in a single 1769 module, conserving valuable rack space and reducing the total number of I/O modules—and therefore total system cost—on machines that require both measurement and analog control. This is particularly advantageous in compact enclosures on OEM equipment such as packaging machines, small mix‑proof skids, or stand‑alone test benches.Software‑selectable signal types per channel: Both input and output channels are configured through the programming software (RSLogix 500 or RSLogix 5000 / Studio 5000); voltage or current mode is selected on a per‑channel basis from the I/O Properties dialog. The 1769‑IF4XOF2​ also supports user‑defined engineering unit scaling, allowing raw counts to be automatically converted to meaningful process values (e.g., 0–150 °C, 0–300 psi) stored directly in controller tags—no ladder‑logic scaling math is required.Built‑in fault diagnostics: The module continuously monitors each input for over‑range, under‑range, and (for current mode) open‑wire conditions. Corresponding status bits are mapped into the input image table and can be used in ladder logic to trigger alarms or safe‑state actions. Front‑panel LEDs indicate module health (FLT/MOD), and loss of communication with the controller is reported through the standard 1769 I/O module status mechanism, simplifying troubleshooting during commissioning and operation.Galvanic isolation and noise immunity: With 30 V RMS continuous isolation between field wiring terminals and the module’s logic/backplane side, the 1769‑IF4XOF2​ helps prevent damage and measurement error caused by ground potential differences between field devices and the controller chassis. When used with properly shielded twisted‑pair cabling and shield termination at the module end, the 1769‑IF4XOF2​ provides reliable analog signal integrity even in electrically noisy industrial environments.Seamless Logix platform integration: Once added to the I/O configuration tree, the 1769‑IF4XOF2​ auto‑negotiates its slot address and becomes immediately accessible to the control program. Analog input data and analog output commands are handled as native controller tags, making them straightforward to trend, log to a data file, or display on an HMI without intermediate mapping or data move instructions. Firmware compatibility checks built into the software help ensure the 1769‑IF4XOF2​ operates correctly with the installed controller firmware revision.

Application Field

The 1769‑IF4XOF2​ is widely used in general‑purpose automation applications where a modest number of analog signals must be acquired and a small number of analog setpoints must be issued—all within the Compact I/O footprint. In water and wastewater treatment, the module reads 4–20 mA signals from level transmitters, pressure sensors, or pH probes on its four input channels while sending 0–10 V or 4–20 mA setpoint signals to chemical dosing pumps or variable‑frequency drives on its two outputs, closing simple PID loops executed in the CompactLogix CPU.Packaging and converting machinery employ the 1769‑IF4XOF2​ to monitor web tension (via load‑cell amplifiers with ±10 V outputs) and to command dancer‑roll position controllers or brake/clutch current, often combining the analog I/O with discrete I/O modules in the same 1769 rack. Plastics extrusion and injection molding machines use the module to track zone temperatures through 0–10 V transmitters and to modulate proportional valve drivers for pressure or flow control. Building automation subsystems—such as make‑up air handlers or boiler staging panels—also make effective use of the 1769‑IF4XOF2​ to interface legacy analog field devices with a modern Logix‑based building management or supervisory control system.Because the 1769‑IF4XOF2​ is backwards compatible with MicroLogix 1500 1769 expansion racks as well as current‑generation CompactLogix systems, it is also a common choice for retrofit projects upgrading older panel hardware while preserving existing analog field wiring and instrumentation. Its combination of flexibility, diagnostics, and compact form factor makes the Allen‑Bradley 1769‑IF4XOF2​ a versatile workhorse for process‑monitoring and closed‑loop control tasks across numerous industries.
