Description
Application Scenarios
A global beverage bottling OEM previously ran 60+ individual 24 V DC wires from a central control cabinet to pneumatic solenoid banks on each filler head, resulting in $12,000 per line in copper tray wiring, frequent termination failures from vibration, and 4-hour cabinet rework cycles during line changeovers. By deploying the 1732E-OB16M12R blocks directly on the filler carriage and connecting them via a daisy-chained EtherNet/IP DLR ring with M12 patch cables, the OEM eliminated the multi-conductor homerun cables entirely. Wiring labor dropped by 70%, cabinet footprint was reduced by one full bay, and troubleshooting became point-of-use via per-channel LEDs. The IP69K-rated housing withstood daily high-pressure caustic washdowns without additional protection, solving both the corrosion risk and the maintenance bottleneck.
Parameter

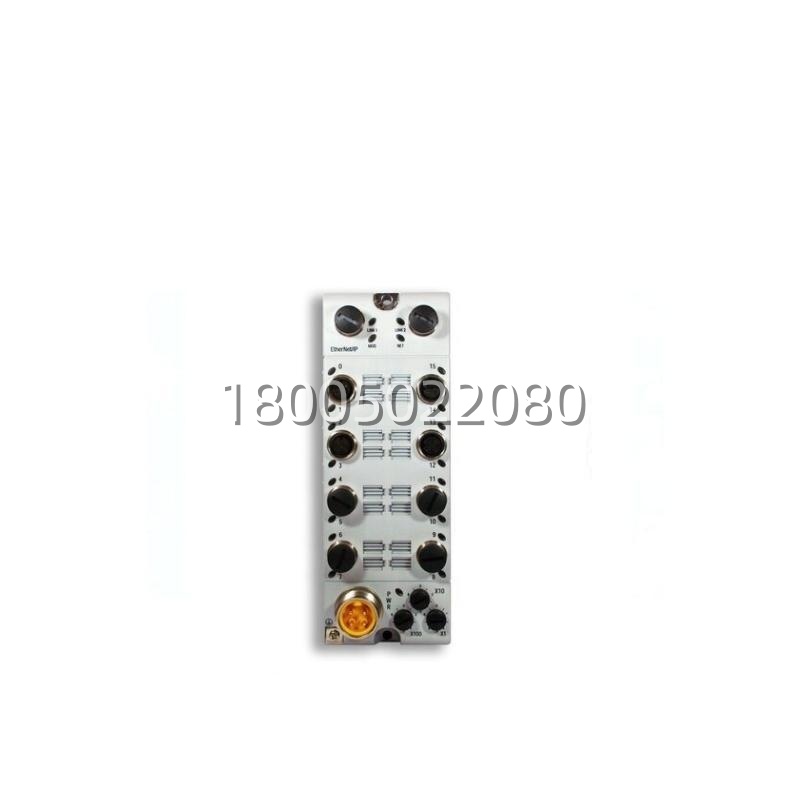

| Main Parameters | Value/Description |
|---|---|
| Product Model | 1732E-OB16M12R |
| Manufacturer | Allen-Bradley / Rockwell Automation |
| Product Category | Distributed Digital Output I/O Module (On-Machine, EtherNet/IP) |
| Number of Outputs | 16 Points, Sourcing Type (PNP), 24 V DC Solid-State MOSFET |
| Output Current Rating | 0.5 A per point typical / 2.0 A max per point (resistive); Total module load ≤ 8.0 A |
| Output Voltage Range | 18–30 V DC (typical 24 V DC external supply) |
| Communication Protocol | EtherNet/IP — Implicit & Explicit Messaging, QuickConnect™, DLR (Device Level Ring) support |
| Network & I/O Connectors | 2 × M12 D-coded (Ethernet In/Out, IP67); 2 × 12-pin M12 (I/O); 1 × 4-pin Micro (Aux Power) |
| Response Time | OFF-to-ON / ON-to-OFF ≤ 1 ms |
| Short Circuit Protection | Electronic overload protection per output channel, auto-recovery |
| Isolation | 500 V AC (I/O to Network/Power) |
| Ingress Protection | IP65 / IP67 / IP69K — Dust-tight, waterproof, withstands high-pressure hot water washdown |
| Operating Temperature | -25 °C to +60 °C (-13 °F to +140 °F) |
| Mounting Method | Direct machine mount via 4 × M4 threaded holes; no enclosure required |
| Dimensions (L×W×H) | ≈ 120 × 50 × 35 mm (4.72 × 1.97 × 1.38 in) |
| Indicators | Network Status (NS), Module Status (MS), 16 per-point Output LEDs |
Technical Principles and Innovative Values
Innovation Point 1 — True On-Machine Distributed Architecture: Unlike traditional rack I/O that must reside in a climate-controlled cabinet, the 1732E-OB16M12R is housed in a nickel-plated aluminum and high-impact polymer shell rated IP65/IP67/IP69K. It mounts directly to machine frames with standoff hardware, bringing the 16 output points within inches of the actuators they control. This eliminates hundreds of feet of individual conductor runs and reduces electromagnetic noise pickup from long sensor/actuator cables.Innovation Point 2 — Dual-Port EtherNet/IP with DLR Native Support: The 1732E-OB16M12R integrates two M12 D-coded 10/100 Mbps Ethernet ports for linear daisy-chain or Device Level Ring topologies. In a DLR configuration, if a single cable is cut or a port fails, the ring heals in < 3 ms—maintaining output control and preventing unintended machine stops. The module is recognized natively in Studio 5000 Logix Designer® with Add-On Profile (AOP) support for drag-and-drop configuration.Innovation Point 3 — M12 Micro-Style I/O Integration with Per-Point Diagnostics: Each of the 16 outputs has an individual LED for rapid visual fault isolation, and the module provides electronic short-circuit protection with automatic recovery per channel—not just per group. The 12-pin M12 I/O connectors accept standard pre-molded M12-to-M12 or M12-to-flying-lead cordsets, turning field termination from a screw-terminal task into a seconds-long click-in operation.Innovation Point 4 — QuickConnect for Tool-Changer & Retrofit Flexibility: When enabled in the controller, the 1732E-OB16M12R supports EtherNet/IP QuickConnect, establishing communications in < 250 ms after power-up. This is critical for automated tool changers, pallet shuttles, and retractable machine modules that cycle power frequently during operation.
Application Cases and Industry Value
Case — Automotive Body Shop Spot Welding Cell: A Tier-1 stamping plant retrofitted six welding cells originally wired back to a central PLC rack. They installed 1732E-OB16M12R blocks on each robot end-effector and cell fixture to drive clamp indicators, air blast solenoids, and reject gate actuators. The EtherNet/IP DLR ring connected all six blocks with a single CAT6 M12 cable run. Post-retrofit, the plant reported a 65 % reduction in I/O wiring labor during cell rebuilds, elimination of intermittent faults caused by flexing multi-conductor cables in dress packs, and the ability to swap an entire I/O block in under 5 minutes using only an M12 wrench—versus 45 minutes to re-terminate 32 screw terminals. Mean time to repair (MTTR) for output faults dropped from 52 minutes to under 6 minutes.Industry Value Contribution: Across packaging, food & beverage, material handling, and automotive sectors, the 1732E-OB16M12R enables leaner panel design (smaller enclosures, fewer terminal blocks, less conduit), lowers installed cost per I/O point, and increases machine availability through localized diagnostics and network redundancy. Its washdown-rated enclosure makes it uniquely suited to hygienic and corrosive environments where traditional DIN-rail I/O would require expensive stainless enclosures.
Related Product Combination Solutions
- 1732E-IB16M12R — 16-point 24 V DC sinking/sourcing digital inputmodule in the same ArmorBlock 1732E form factor; typically paired with the 1732E-OB16M12R on the same EtherNet/IP DLR ring for complete local I/O coverage.
- 1732E-OB16M12DR — Enhanced version of the 1732E-OB16M12R adding per-point electronic fusing diagnostics and CIP Sync capability for applications requiring advanced output health reporting.
- 1732E-8X8M12DR — Combined 8-input / 8-output ArmorBlock module for mixed signal points where space is at a premium; shares the same M12 network and mounting scheme with the 1732E-OB16M12R.
- 1732E-IF4M12R — 4-channel analog input (0–20 mA / 4–20 mA) ArmorBlock for adding analog sensing to the same on-machine EtherNet/IP network alongside the 1732E-OB16M12R.
- 1783-ETAP — Industrial EtherNet/IP tap/switch for expanding the DLR ring or bridging ArmorBlock nodes into the plant-wide Stratix Ethernet infrastructure.
- 1769-L33ER / 5069-L320ER (CompactLogix / ControlLogix) — Recommended Logix controllers that natively manage the 1732E-OB16M12R via EtherNet/IP implicit messaging with full tag-based I/O mapping in Studio 5000.
- 1606-XL480EP — 480 W 24 V DC DIN-rail switched-mode power supply commonly used to feed the auxiliary power input of one or more 1732E-OB16M12R blocks in a distributed architecture.
