Description
Technical Specifications

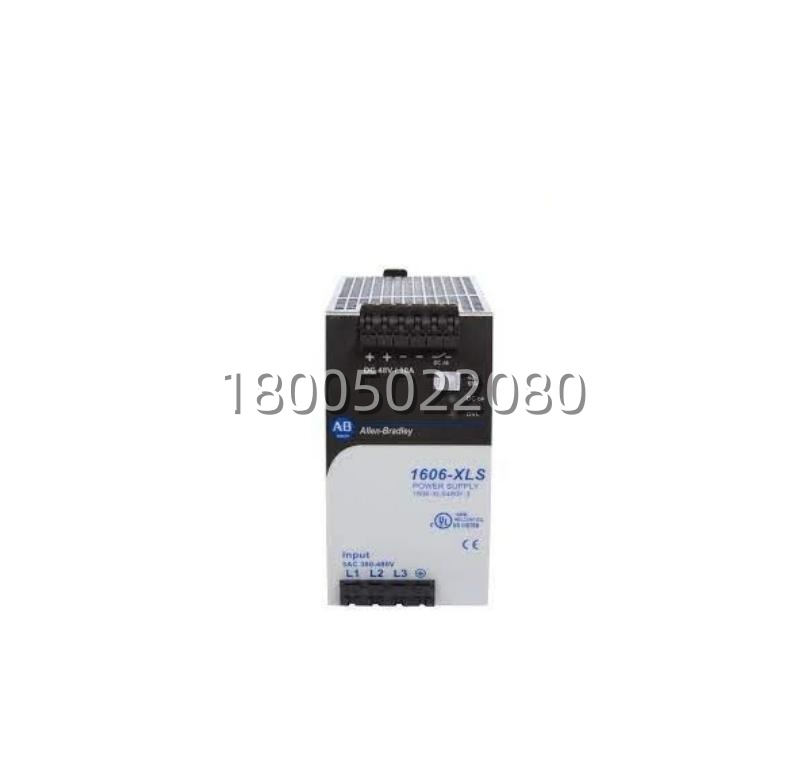

| Parameter Name | Value |
|---|---|
| Product Model | 1606-XLS480F |
| Manufacturer | Allen-Bradley (Rockwell Automation) |
| Product Type | Switched Mode Power Supply – Performance Family |
| Output Voltage | 48V DC nominal (adjustable 48-55V DC) -3-14 |
| Output Current | 10A continuous @ 48V DC -1-3 |
| Output Power | 480W continuous / 720W for 4 seconds (150% boost) -3-5 |
| Input Voltage | 100-240V AC, 47-63Hz (wide-range) -2-8 |
| DC Input Voltage Range | 88-375V DC (optional operation) -3-14 |
| Efficiency | 94.3% typical -2-14 |
| Input Inrush Current | 9A peak @ 100V / 7A peak @ 230V -2-14 |
| Input Current | 4.6A @ 100V / 2.48A @ 230V -3 |
| Hold-up Time | 32-51ms -2-14 |
| Ripple and Noise | <100mVpp (20Hz to 20MHz) -3 |
| Operating Temperature | -25°C to +70°C (derating above 60°C) -2-3 |
| Derating | 12W/°C from +60°C to +70°C -2-14 |
| Dimensions (W×H×D) | 82 × 124 × 127 mm -2-14 |
| Weight | 1200g -2-14 |
| Mounting | DIN Rail (EN 60715) or Wall Mount -1-14 |
| Electrical Connection | Spring Clamp Terminals -2-3 |
| Protection Class | IP20 -2-4 |
| MTBF | 469,000 hours @ 40°C (SN29500) -2-14 |
Main Features and Advantages
Exceptional Efficiency and Compact Design: The Allen-Bradley 1606-XLS480F achieves up to 94.3% typical efficiency through synchronous rectification technology, significantly reducing power losses and heat generation -2-3. This high efficiency allows the 1606-XLS480F to maintain its compact form factor while delivering full rated power, saving valuable panel space and reducing cooling requirements in industrial control cabinets.
150% Power Boost Capability: The 1606-XLS480F provides a short-term power boost of 150% of rated output (720W) for up to 4 seconds, enabling reliable startup of challenging loads including DC motors, capacitive loads, and equipment with high inrush current requirements -3-5. This feature allows system designers to use a lower wattage power supply than would otherwise be required, reducing both space and cost without compromising performance.
Active Power Factor Correction and Low Inrush Current: The Allen-Bradley 1606-XLS480F incorporates active power factor correction (PFC) with a typical power factor of 0.90-0.96, minimizing harmonic distortion and maximizing the usable power from the AC mains -2-3. The advanced active inrush limitation circuitry keeps inrush current below 9A peak, preventing nuisance tripping of circuit breakers and reducing stress on upstream components during power-up.
Comprehensive Diagnostic Capabilities: The 1606-XLS480F features a DC-OK relay contact and LED indicators (green DC-OK and red overload) for real-time status monitoring -3-14. The DC-OK relay provides a dry contact signal that can be integrated into control systems for remote monitoring, enabling predictive maintenance strategies and rapid fault detection.
Quick-Connect Spring Clamp Terminals: The Allen-Bradley 1606-XLS480F utilizes unique spring-clamp terminals for fast, secure, and vibration-resistant wiring connections -3-7. This termination method significantly reduces installation time compared to traditional screw terminals and ensures reliable connections in high-vibration industrial environments.
Wide Operating Temperature Range and Marine Approvals: The 1606-XLS480F operates reliably from -25°C to +70°C, with a derating of 12W/°C above 60°C -2-14. The unit holds ABS/GL/RINA marine approvals, making it suitable for shipboard and offshore applications where environmental conditions are particularly demanding -2-14.
Global Safety and Compliance Certifications: The Allen-Bradley 1606-XLS480F complies with UL 508, UL 60950-1, and Class I Division 2 hazardous location requirements, along with EMC and LVD directives, ensuring suitability for installation in virtually any industrial environment worldwide -3-5.
