Description
Technical Specifications

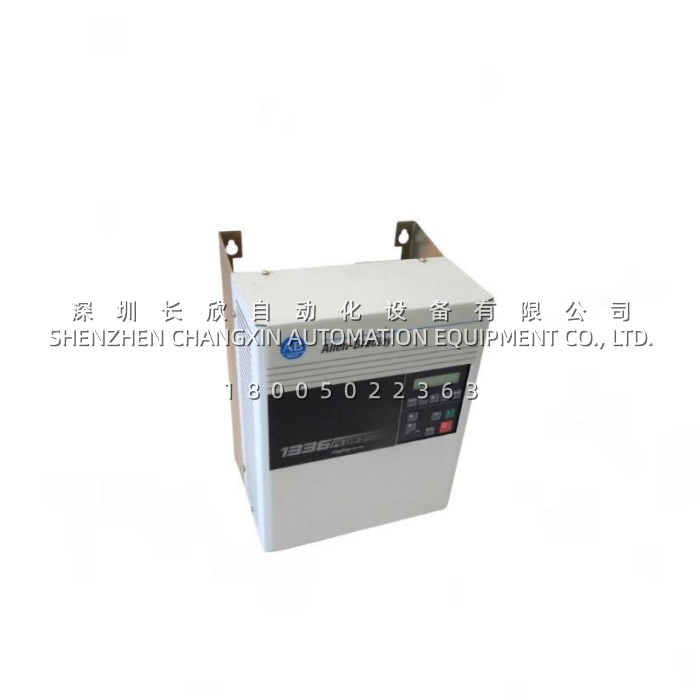

| Parameter Name | Parameter Value |
|---|---|
| Product Model | Allen-Bradley 1336F-BRF100-AE-EN |
| Manufacturer | Allen-Bradley / Rockwell Automation |
| Product Type | Adjustable Frequency AC Drive (VFD), Sensorless Vector |
| Series | 1336 PLUS II (Bulletin 1336F) |
| Catalogue Decode | 1336F = PLUS II; BR = 380-480 V AC / 513-620 V DC; F100 = 7.5 kW (10 HP); AE = IP20 (NEMA 1) with EMC; EN = English |
| Rated Power | 7.5 kW (10 HP) constant torque; up to 11 kW (15 HP) variable torque |
| Input Voltage | 380-480 V AC, 3-phase, 50/60 Hz; or 513-620 V DC |
| Input Current | 16.4 A constant torque / 22.4 A variable torque (AC); 16.8 A CT / 22.9 A VT (DC) |
| Output Voltage | 0-460 V AC, 3-phase |
| Output Current | 16.1 A constant torque / 22 A variable torque |
| Output Frequency Range | 0-400 Hz |
| Control Modes | Sensorless Vector Control, selectable Volts per Hertz (V/Hz) |
| Overload Capability | 150% of rated current for 1 minute; 200% for 3 seconds |
| Frame Size | A4 |
| Enclosure Rating | IP20 (NEMA Type 1) with integrated EMC filtering |
| Communication | One RS-232 serial port (DF1); SCANport interface for optional DeviceNet, ControlNet, Remote I/O, PROFIBUS adapters |
| Process Functions | Built-in Process PI controller, flying start, auto restart, 7 preset speeds, 3 skip frequencies, S-curve accel/decel, DC injection braking, slip compensation, auto-tuning |
| Protection Functions | Undervoltage, overvoltage, drive overcurrent, overtemperature, output short circuit, ground fault, encoder loss, load loss, single-phase, overcurrent stall, overvoltage stall, six alarms, fault reset input |
| Operating Ambient | 0 °C to +40 °C; up to 95% relative humidity non-condensing; altitude to 1000 m without derating |
| Dimensions (H × W × D) | Approximately 276 × 225 × 476 mm |
| Weight | Approximately 11 kg |
| Conformity | UL Listed, CSA Certified (C-UL), CE Conformity, IEC (designed to meet), C-Tick |
| Lifecycle Status | Discontinued / Obsolete by manufacturer |
Main Features and Advantages
Sensorless vector plus V/Hz in one platform: The Allen-Bradley 1336F-BRF100-AE-EN lets the commissioning engineer choose the control mode that suits the load. Volts-per-Hertz is ideal for simple fan and pump duty where a fixed relationship between voltage and frequency is all that is required, while Sensorless Vector Control adds real low-speed torque and far better speed regulation under changing load — useful on conveyors, mixers and positive-displacement machines, and achieved without the cost and wiring of an encoder feedback device.Integrated EMC filtering: The “AE” enclosure code is not a cosmetic difference. The Allen-Bradley 1336F-BRF100-AE-EN ships with internal EMC filtering, so it can be installed into a general-purpose industrial cabinet alongside PLCs, analogue instrumentation and communication cabling without the need for a separate external filter. That saves panel space, removes a purchase line and, more importantly, removes a common source of nuisance interference in mixed cabinets.Process control built in: A Process PI controller is resident in the drive, so a pump discharge pressure or a flow setpoint can be closed around the Allen-Bradley 1336F-BRF100-AE-EN directly, using a transmitter wired to an analogue input. Combined with seven preset speeds, three skip frequencies to avoid mechanical resonance, S-curve ramping and flying start (which lets the drive capture a motor that is already coasting), many applications need no external PID loop at all.Protection and diagnostics: Beyond the standard trips, the drive provides overcurrent and overvoltage stall prevention so that a transient disturbance does not become a nuisance trip, plus a memory of the last four faults with plain-language messages. Status such as current limit, bus voltage, motor overload and drive overload is reported as an alarm before it escalates to a fault, which is genuinely useful for preventive maintenance.Serviceability: The Human Interface Module is removable and can be door-mounted, parameters can be uploaded and downloaded, and the planar construction with a laminar bus design reduces internal wiring and improves IGBT performance. For a maintenance team, the Allen-Bradley 1336F-BRF100-AE-EN is a drive that can be understood and serviced without specialist tooling.
