Description

Application Scenarios

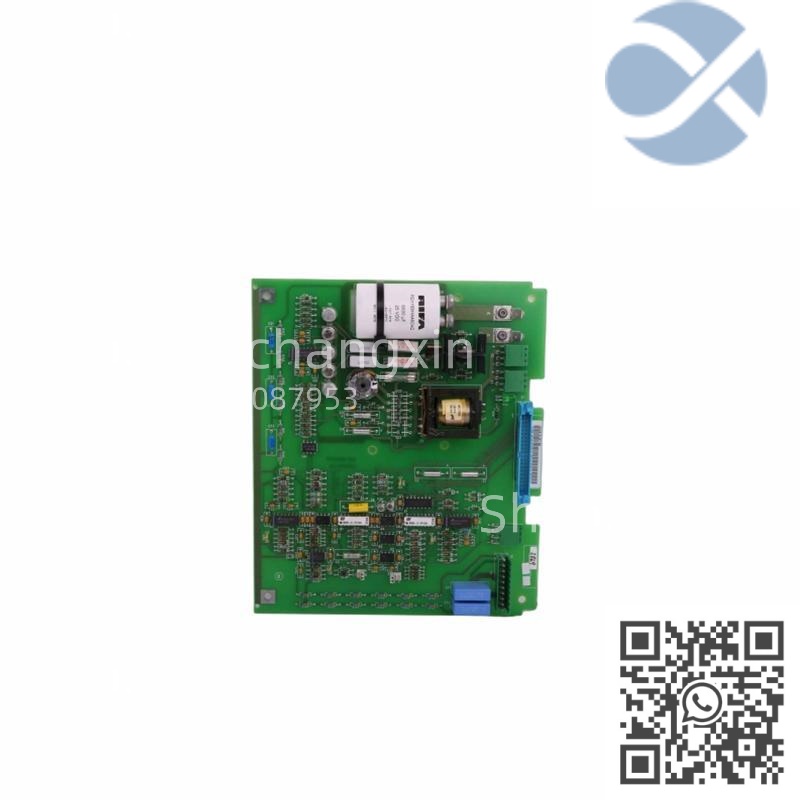

In a large-scale automotive production line,the ABB YPQ203A connection board was utilized to link multiple PLCs,actuators,and sensors in real-time.By facilitating quick data exchange across various control points,the YPQ203A ensured smooth synchronization of the entire production process.The use of the YPQ203A reduced system lag and improved operational efficiency,enabling the plant to operate with precision and minimal downtime.It also helped streamline data reporting and analysis,which led to quicker decision-making and more optimized performance across the entire production line.

Parameter

Main Parameters Value/Description

Product Model YPQ203A

Manufacturer ABB

Product Category Connection Board

Operating Voltage 24 V DC

Communication Protocol Ethernet,Modbus RTU

Operating Temperature-20°C to+60°C

Mounting Type DIN Rail

Dimensions 160mm x 110mm x 70mm

Compatibility Compatible with ABB PLCs,controllers,and I/O modules

Response Time<10 ms

Protection Rating IP20

Input/Output Ports 8 Digital Inputs,4 Analog Outputs

Power Consumption 15W

Technical Principles and Innovative Values

Innovation Point 1:Optimized Connectivity–The ABB YPQ203A connection board integrates multiple communication protocols,including Ethernet and Modbus RTU.This allows seamless interaction with various industrial devices,enabling robust connectivity across automation systems.

Innovation Point 2:Real-Time Communication–The YPQ203A ensures low-latency data exchange,which is critical in real-time industrial processes.Its fast response time allows for efficient synchronization between different parts of the system,ensuring continuous and stable operation.

Innovation Point 3:Modular and Scalable–The YPQ203A can be easily expanded to accommodate future system growth.Its modular design ensures that additional components and devices can be added without significant changes to the overall architecture,providing long-term flexibility.

Innovation Point 4:Environmentally Robust–Designed to operate in demanding environments,the YPQ203A features an IP20 protection rating and can withstand temperatures ranging from-20°C to+60°C,making it suitable for a variety of industrial settings.

Application Cases and Industry Value

In a large food processing facility,the ABB YPQ203A connection board was used to link multiple machines and sensors across different production stages.The board helped create a unified communication system that allowed real-time monitoring of temperature,humidity,and other key variables.This resulted in better control over the production process,leading to higher product quality and improved operational efficiency.By using the YPQ203A,the company significantly reduced manual intervention,minimized errors,and optimized its production scheduling.

Installation,Maintenance,and Full-Cycle Support

Installation Preparation:

The installation of the ABB YPQ203A is simple due to its DIN rail mounting system.Ensure that the board is mounted in a dry,clean environment with adequate ventilation.It is essential to connect the YPQ203A to the correct power source(24V DC)and ensure that the Ethernet or Modbus RTU communication lines are properly set up for smooth integration with other devices.

Maintenance Recommendations:

The YPQ203A is designed for long-term reliability with minimal maintenance.However,periodic checks for dust or debris buildup around the board’s ventilation areas are recommended.Additionally,keeping the firmware up to date ensures the connection board operates optimally.Should any issues arise,the YPQ203A includes diagnostic features to quickly identify and resolve faults,minimizing downtime and operational disruptions.

Product Guarantee

The ABB YPQ203A connection board is backed by ABB’s industry-leading warranty and global support network.Our team at Shenzhen Changxin is committed to providing comprehensive after-sales support,including installation assistance,troubleshooting,and quick access to spare parts.With our expert technical support and the high quality of the YPQ203A,you can rely on its performance for years to come.

ABB 5SHY4045L0006 3BHB030310R0001 3BHE039203R0101 GVC736CE101 5SHY4045L0006 3BHB030310R0001 3BHE039203R0101 GVC736CE101 ABB GRID BREAKER UNIT GBU72 3BHE055094R0002 3BHE031197R0001 3BHB030310R0001 In stock!!! Interested parties please inquire
