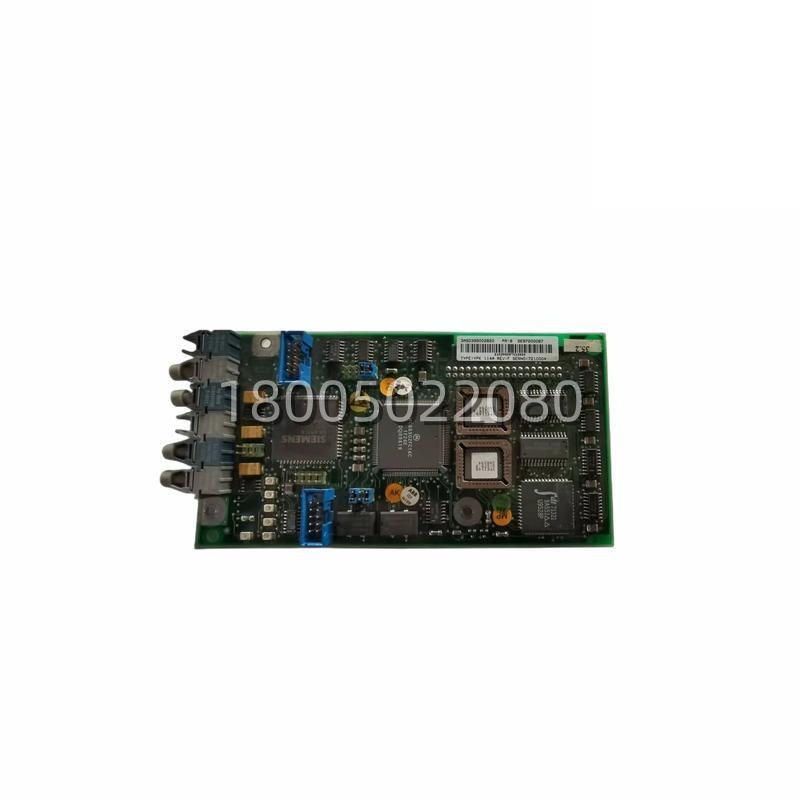

ABB YPK114A DCB Module – Main Logic Board for ABB ACS600/800/1000 Series Drives

In a critical mine ventilation application, a 2MW ABB ACS1000 medium-voltage drive controlling the main exhaust fan suffered a catastrophic failure, causing a complete plant shutdown for safety reasons. Initial diagnostics pointed to a complex fault within the drive’s control section. Rather than replacing the entire multi-million dollar drive system, the engineering team performed systematic component testing. They isolated the failure to the ABB YPK114A 3ASD399002B20​ Drive DCB Board, which had suffered damage from a power surge. This board acted as the central nervous system, and its failure prevented all other intelligent modules (like gate drive and I/O boards) from communicating or receiving stable power. Replacing the YPK114A 3ASD399002B20​ and performing a full system recalibration restored the drive to full functionality within 48 hours. This intervention directly addressed the core pain point of minimizing downtime for mission-critical infrastructure. It avoided a weeks-long outage and the exorbitant cost of a new drive, showcasing the YPK114A 3ASD399002B20‘s pivotal role as a repairable, central component that safeguards high-value industrial assets.
