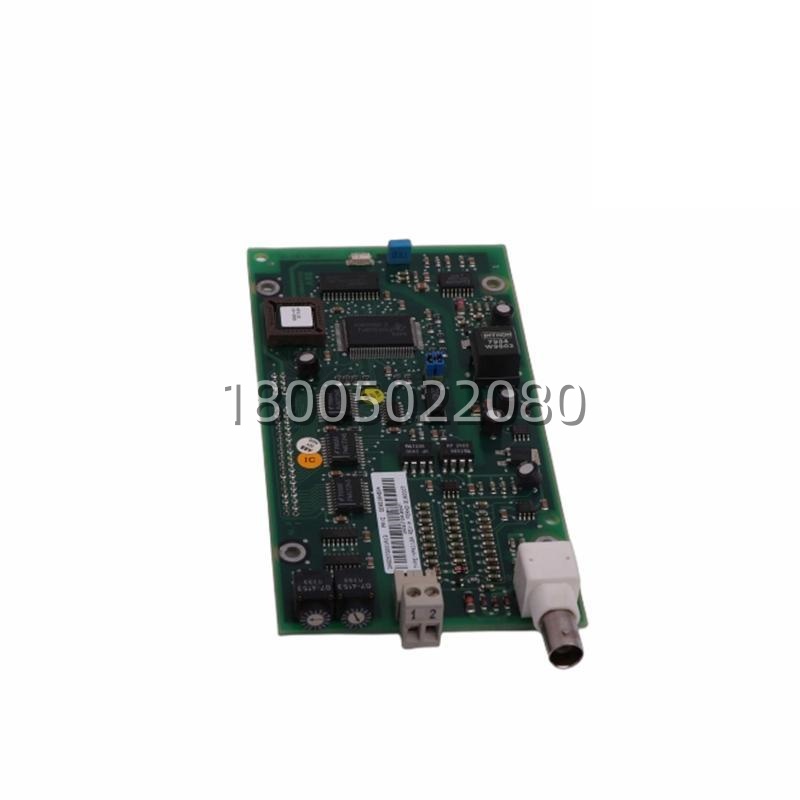

ABB YPK112A 3ASD5730011A133 Communication Module: PROFIBUS-DP Gateway for ABB ACS Drives

Description

The ABB YPK112A (also designated 3ASD5730011A133) is a fieldbus communication adapter module designed for integration with ABB’s ACS 600, ACS 800, and ACH series of AC drives. This module functions as a dedicated PROFIBUS-DP slave interface, acting as a bidirectional gateway that connects the drive’s internal control system to a higher-level automation network, such as a PLC or DCS. It enables real-time transmission of control commands, speed references, and the reception of comprehensive drive status, diagnostic, and process data.

Category: FUJI

Contact Us WhatsApp / Wechat：+8618150087953
Phone：+86 18150087953
Email：sales@cxplcmro.com

Description

Application Scenarios

In a modern automotive paint shop, hundreds of fan and pump drives must be precisely coordinated to maintain critical air pressure, temperature, and ventilation levels. Each drive, an ABB ACS 800, is equipped with an ABB YPK112A PROFIBUS-DP module. These modules form a high-speed network, connecting all drives to a central Siemens S7-1500 PLC. The PLC sends real-time speed setpoints and receives motor current, temperature, and fault status from each drive via the YPK112A. When a 3ASD5730011A133 module on a critical exhaust fan drive fails, network communication drops, causing the PLC to lose control and visibility. The maintenance team swiftly replaces the faulty module with a certified spare. Within minutes, the drive is reintegrated into the control network, allowing the PLC to resume precise control and restore the shop’s delicate environmental balance, preventing production stoppages and ensuring quality. This highlights the YPK112A‘s role as the vital communication lifeline for smart, networked drive systems.
