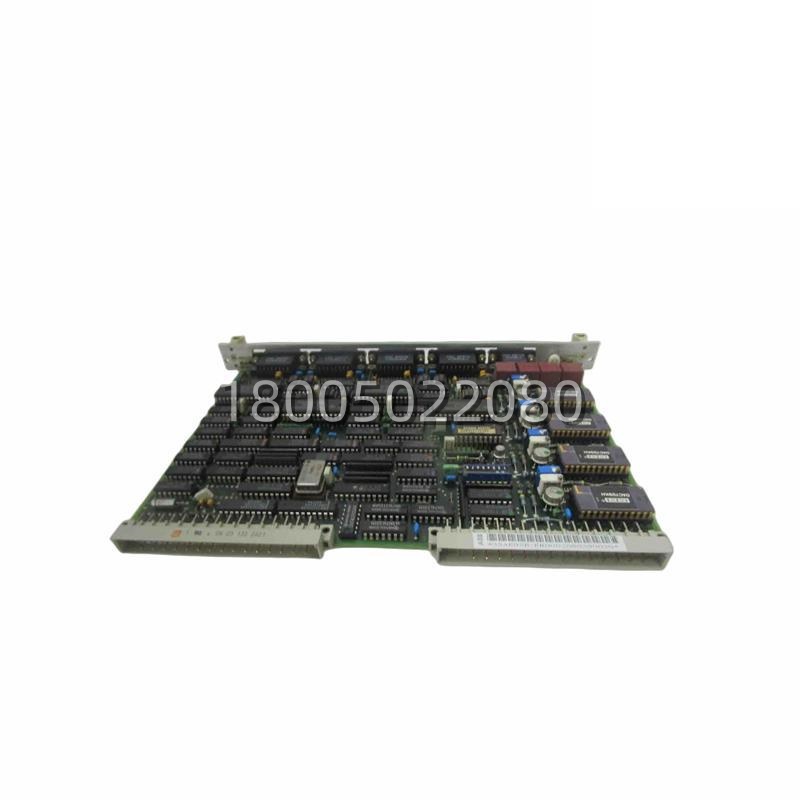

ABB YPH107A 3ASD573001A9 Speed Measuring Board: Precision Motion Feedback for ABB Drives

In a paper mill’s high-speed coating line, a giant 2,500 kW induction motor, controlled by an ABB ACS 800 drive, must maintain a precise, synchronized speed with other sections to prevent web tension issues or breaks. The motor is equipped with a high-resolution pulse encoder providing 10,000 pulses per revolution. The ABB YPH107A​ board inside the drive cabinet is the vital component that receives these high-frequency pulses, converting them into a precise speed and position value for the drive’s control logic. When this board develops a fault, the drive loses its high-resolution feedback, defaulting to a less precise open-loop mode, causing speed drift and jeopardizing the entire production line. Replacing the faulty 3ASD573001A9​ board with a certified unit restores the high-performance closed-loop control within an hour, preventing a costly multi-day production shutdown and thousands in wasted material. This underscores the YPH107A‘s role as the essential link for precision motion in mission-critical drives.
