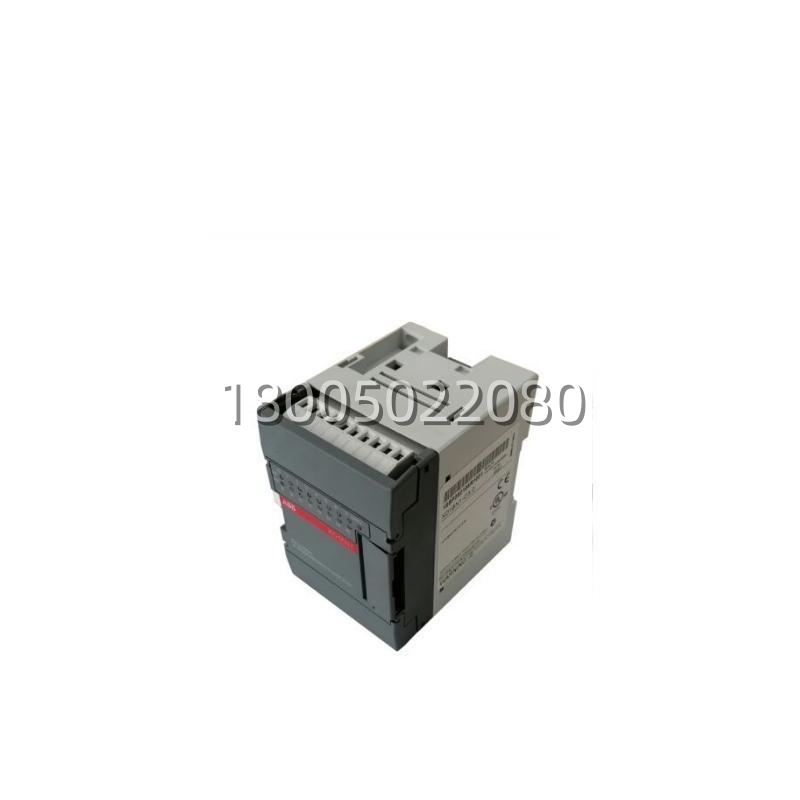

ABB XI16E1 (1SBP260100R1001) High-Density Digital Input Module

The ABB 1SBP260100R1001, designated as the ABB XI16E1, is a high-performance 16-channel digital input module designed specifically for the ABB AC500 PLC series (compatible with AC500-eCo, AC500-S, and AC500-XC CPUs). It serves as a critical interface component, bridging the gap between physical field devices—such as sensors, switches, and encoders—and the central control logic.

Engineered for precision and durability, the ABB XI16E1 ensures reliable signal acquisition in demanding industrial environments. Its compact design and high channel density make it an ideal solution for maximizing control cabinet space while maintaining robust communication with 24V DC field devices.

Category: FUJI

Contact Us WhatsApp / Wechat：+8618150087953
Phone：+86 18150087953
Email：sales@cxplcmro.com

Description

In a high-speed automotive assembly plant, a complex network of proximity sensors and limit switches is required to monitor the position of chassis components on a conveyor line. The ABB 1SBP260100R1001 is installed within the main control cabinet, acting as the primary data acquisition point for 16 distinct sensor nodes.

As the assembly line operates, the ABB XI16E1 constantly scans the status of these sensors, converting physical “on/off” states into digital signals for the AC500 CPU. If a sensor detects a misalignment, the module relays this information instantly, allowing the PLC to halt the line or trigger a corrective actuator. By utilizing the ABB 1SBP260100R1001. the plant addresses the critical pain point of “signal latency,” ensuring that safety interlocks and process controls react in real-time to prevent costly mechanical damage or production bottlenecks.

Parameter

表格

Technical Principles and Innovative Values

The ABB XI16E1 is built upon a modular architecture that prioritizes signal integrity and ease of maintenance.

Innovation Point 1: Galvanic Isolation

The ABB 1SBP260100R1001 features 500V AC galvanic isolation between the field side (sensors) and the system side (PLC bus). This critical design feature prevents high-voltage spikes or electrical noise from the factory floor from damaging the sensitive CPU, ensuring system longevity even in electrically noisy environments.

Innovation Point 2: High-Density Space Saving

By integrating 16 input channels into a single, compact module footprint, the ABB XI16E1 optimizes control panel real estate. This allows system integrators to connect twice as many devices in the same space compared to older 8-channel modules, significantly reducing cabinet size and wiring complexity.

Innovation Point 3: Intelligent Diagnostics

Each channel on the ABB XI16E1 is equipped with a dedicated LED status indicator. This “at-a-glance” diagnostic capability allows technicians to instantly identify wiring faults or sensor failures without needing to connect a laptop to the PLC, reducing Mean Time To Repair (MTTR) significantly.
