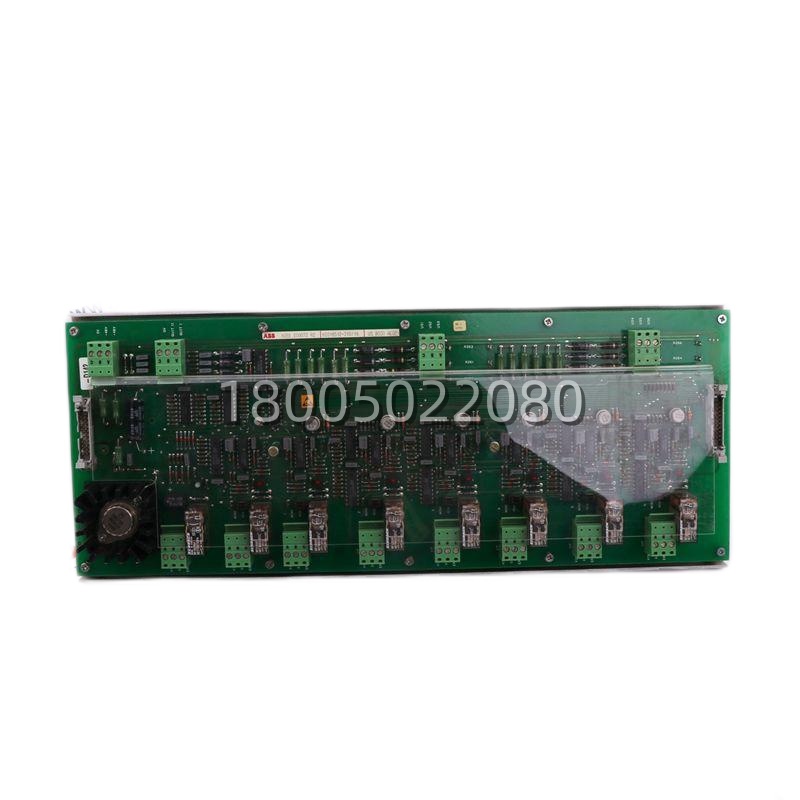

ABB WINT1221C ACS355 Series Drive Control Board

The ABB WINT1221C is a specialized control board designed for the ABB ACS355 series of micro drives. It serves as the central processing unit and interface hub for the drive, managing motor control algorithms, input/output signal processing, and communication with external devices.

Engineered for compactness and reliability, the ABB WINT1221C integrates the essential electronics required to operate the ACS355 drive, which is widely used in OEM applications for controlling pumps, fans, and conveyors. This board ensures precise speed and torque control, making it a critical component for maintaining the efficiency and stability of industrial machinery.

Category: FUJI

Contact Us WhatsApp / Wechat：+8618150087953
Phone：+86 18150087953
Email：sales@cxplcmro.com

Description

In an automated food and beverage packaging facility, precise speed control of conveyor belts is essential to synchronize with filling and capping machines. The ABB WINT1221C is installed within the ACS355 drive that powers the main conveyor motor.

When the production line speed needs to be adjusted, the PLC sends a reference signal to the drive. The ABB WINT1221C processes this signal using the drive’s internal scalar control algorithms to adjust the Pulse Width Modulation (PWM) output to the motor. This ensures smooth acceleration and deceleration, preventing product spillage. If the board were to fail, the drive would lose its ability to regulate the motor, causing the entire packaging line to halt. The ABB WINT1221C addresses this pain point by providing robust, noise-immune signal processing that keeps the line running smoothly even in electrically noisy industrial environments.

Parameter

表格

Technical Principles and Innovative Values

The ABB WINT1221C operates as the “brain” of the ACS355 drive, utilizing embedded microcontroller technology to execute control logic.

Innovation Point 1: Integrated Control Logic

The ABB WINT1221C combines the power supply regulation, I/O buffering, and central processing onto a single compact board. This integration reduces the physical footprint of the drive, allowing the ACS355 to be one of the smallest drives in its class, which is crucial for panel builders with limited space.

Innovation Point 2: Noise Immunity Design

Industrial environments are often plagued by electromagnetic interference (EMI). The ABB WINT1221C is designed with optimized PCB layout and isolation techniques to protect the sensitive microprocessor from noise generated by the drive’s power stage (IGBTs). This ensures reliable operation and prevents spurious fault trips.

Innovation Point 3: User-Friendly Interface Support

The board includes the interface logic for the ACS355’s “Assistants” – a feature that guides users through setup. The ABB WINT1221C manages the communication between the control panel (or PC tool) and the drive firmware, making commissioning fast and error-free for technicians.
