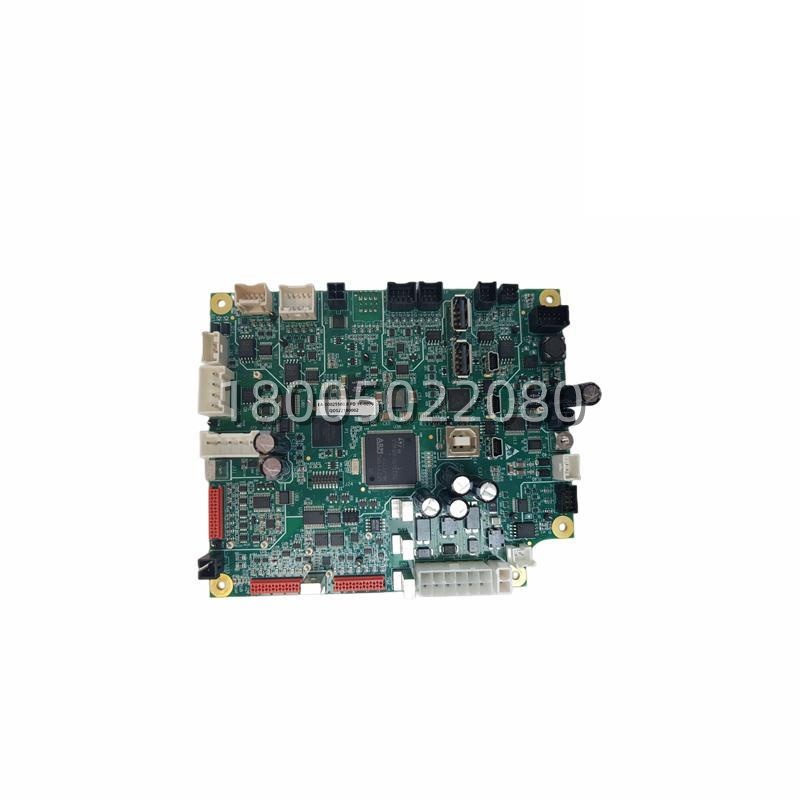

ABB UNS0024B HEIR318072R0002 Conduction Monitoring Module

The ABB UNS0024B (Order Code: HEIR318072R0002) is a specialized conduction monitoring module designed for high-power excitation systems and static frequency converters. This precision board acts as a critical diagnostic and control interface, ensuring the reliable firing and operation of thyristors within a rectifier bridge.

Engineered for stability in high-voltage environments, the HEIR318072R0002 monitors the conduction status of power semiconductors, providing real-time feedback to the main control system. By detecting firing failures or short circuits instantly, the UNS0024B plays a vital role in preventing damage to expensive power electronics and maintaining the continuity of industrial processes.

Category: FUJI

Contact Us WhatsApp / Wechat：+8618150087953
Phone：+86 18150087953
Email：sales@cxplcmro.com

Description

In a steel rolling mill, massive DC motors are driven by a multi-pulse thyristor rectifier system. The precise timing of the firing pulses is essential; if a thyristor fails to conduct when triggered (a “missing pulse”), it can cause current imbalance, overheating, and potential motor torque ripple that damages the steel product.

Here, the ABB UNS0024B is integrated into the gate drive unit of the rectifier. It constantly monitors the voltage drop across the thyristors to verify conduction. If the HEIR318072R0002 detects that a thyristor has failed to turn on, it immediately signals the main controller to block the firing pulses or switch to a redundant bridge. This rapid response by the UNS0024B prevents catastrophic failure of the rectifier stack and ensures the rolling mill continues to operate safely.

Parameter

表格

Technical Principles and Innovative Values

Precision Conduction Verification: The ABB UNS0024B utilizes advanced sensing circuitry to distinguish between a successful thyristor firing and a failure. The HEIR318072R0002 analyzes the voltage waveform across the device; if the expected voltage drop does not occur after a firing pulse, the module flags a conduction fault, allowing for immediate corrective action.

High-Speed Fault Isolation: In power electronics, speed is critical. The UNS0024B is designed to react within microseconds. This fast response time ensures that if a short circuit or misfire occurs, the system can isolate the fault before it propagates to the fuses or the transformer, protecting the overall hardware investment.

Robust Noise Immunity: Operating near high-power thyristors exposes control boards to significant electromagnetic interference. The HEIR318072R0002 is built with high-noise immunity features, ensuring that false triggering does not occur due to electrical transients, maintaining the stability of the excitation system.

Modular Integration: The UNS0024B is designed as a plug-in component within the larger control architecture. This modularity simplifies troubleshooting; if a monitoring channel fails, the HEIR318072R0002 board can be replaced without needing to dismantle the entire power converter assembly.
