ABB UNITROL 1020 Installation Guide: Synchronous Motor Control

Description

Description

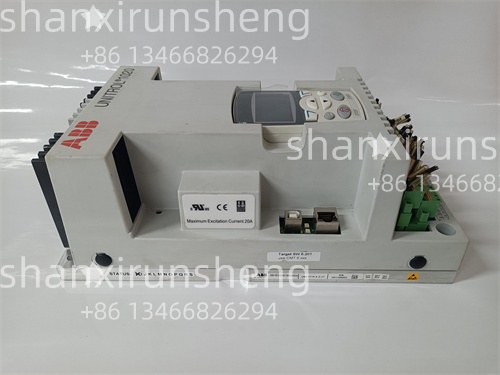

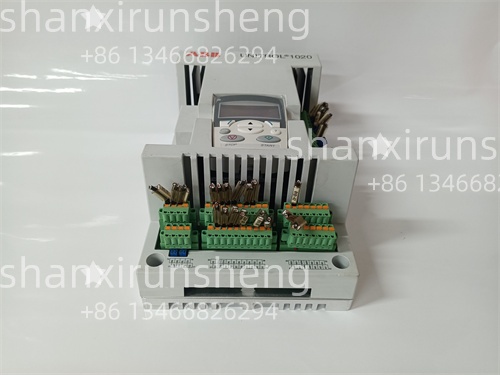

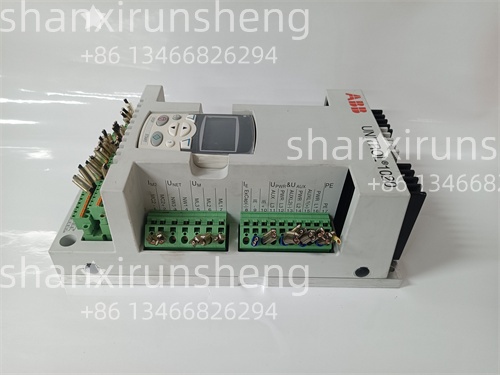

The​​ABB UNITROL 1020 UNS0119A-Z,V1(3BHE030579R0003)​​is a high-performance automatic voltage regulator manufactured by ABB for synchronous generator and motor applications.This advanced excitation control system delivers precise voltage regulation and protection for power generation and industrial drive systems,featuring dual-channel redundancy for maximum reliability in critical operations.

Application Scenarios

In a hydroelectric power plant experiencing frequent grid disturbances,the​​ABB UNITROL 1020 UNS0119A-Z,V1​​was implemented to maintain stable generator output during sudden load changes.The system’s fast response time(within 20ms)prevented voltage dips that previously caused production interruptions,while its dual-channel configuration ensured continuous operation during maintenance activities.Operators reported a 40%reduction in voltage-related incidents and significantly improved power quality compliance with grid codes.

Parameter

Main Parameters

Value/Description

​​Product Model​​

​​UNITROL 1020 UNS0119A-Z,V1​​

​​Manufacturer P/N​​

​​3BHE030579R0003​​

​​Manufacturer​​

ABB

​​Product Category​​

Automatic Voltage Regulator

​​Rated Excitation Current​​

15A continuous(20A for 30 seconds)

​​Input Voltage Range​​

20-300V DC/AC(auto-sensing)

​​Communication Protocols​​

Modbus TCP,RS-485,USB for configuration

​​Regulation Accuracy​​

±0.5%of setpoint

​​Response Time​​

<20ms for 90%step change

​​Protection Features​​

Overvoltage,overcurrent,field short circuit

​​Operating Temperature​​

-20°C to+60°C

​​Redundancy​​

Dual-channel hot standby

​​Certifications​​

UL,CE,DNV marine standards

Technical Principles and Innovative Values

Innovation Point 1:The​​ABB UNITROL 1020 UNS0119A-Z,V1​​incorporates adaptive PID control algorithms that automatically compensate for generator characteristics,maintaining stability across the entire operating range.This intelligent regulation outperforms conventional fixed-parameter systems by continuously optimizing response based on real-time operating conditions.

Innovation Point 2:Dual-channel redundancy architecture ensures seamless transition between channels without output disturbance.The​​3BHE030579R0003​​maintains synchronous operation of both channels,with automatic detection and isolation of faulty components,achieving 99.99%availability in mission-critical applications.

Innovation Point 3:Integrated power factor and reactive power control capabilities enable the​​UNITROL 1020​​to participate in grid support functions automatically.This feature helps plants meet grid code requirements for voltage and reactive power management without additional hardware.

Application Cases and Industry Value

Case Study:Mining Operation Drive System

A large mining company installed the​​ABB UNITROL 1020 UNS0119A-Z,V1​​on their 5MW grinding mill synchronous motors.The previous excitation system suffered from brush wear and voltage instability,causing unplanned downtime every 3-4 months.After upgrading to the​​3BHE030579R0003​​,the operation achieved 18 months of continuous operation without excitation-related issues.The system’s brushless design reduced maintenance costs by 60%,while the precise torque control extended gearbox life by approximately 30%.

Related Product Combination Solutions

​​UNITROL 1020​​expansion modules:Provide additional I/O points for complex control schemes

​​ABB UNS0881A-Z​​:

​​ABB 3BHE039203R0101​​:

​​ABB 3BHE032025R0101​​:

​​ABB 3BHE049935R0001​​:

​​ABB 3BHE050091R0001​​:

​​ABB 3BHE050090R0001​​:

Installation,Maintenance,and Full-Cycle Support

Installation and Maintenance:The​​ABB UNITROL 1020 UNS0119A-Z,V1​​features a modular design that simplifies installation and replacement procedures.The unit can be mounted in standard control panels with DIN rail or plate mounting options.Configuration is performed through ABB’s dedicated software tool,which provides guided setup wizards and automatic parameter optimization based on generator characteristics.

Routine maintenance primarily involves visual inspections and periodic connection checks.The​​3BHE030579R0003​​includes comprehensive self-diagnostics that monitor component health and provide early warnings for preventive maintenance.Firmware updates can be applied online without system shutdown,and the modular design enables component replacement in under 30 minutes.

We provide complete lifecycle support for the​​ABB UNITROL 1020 UNS0119A-Z,V1​​,including installation supervision,commissioning assistance,and ongoing technical support.Our inventory maintains critical spares to minimize downtime,with expert engineers available for emergency support 24/7.

Contact us for a customized excitation control solution tailored to your specific power generation or drive system requirements.
