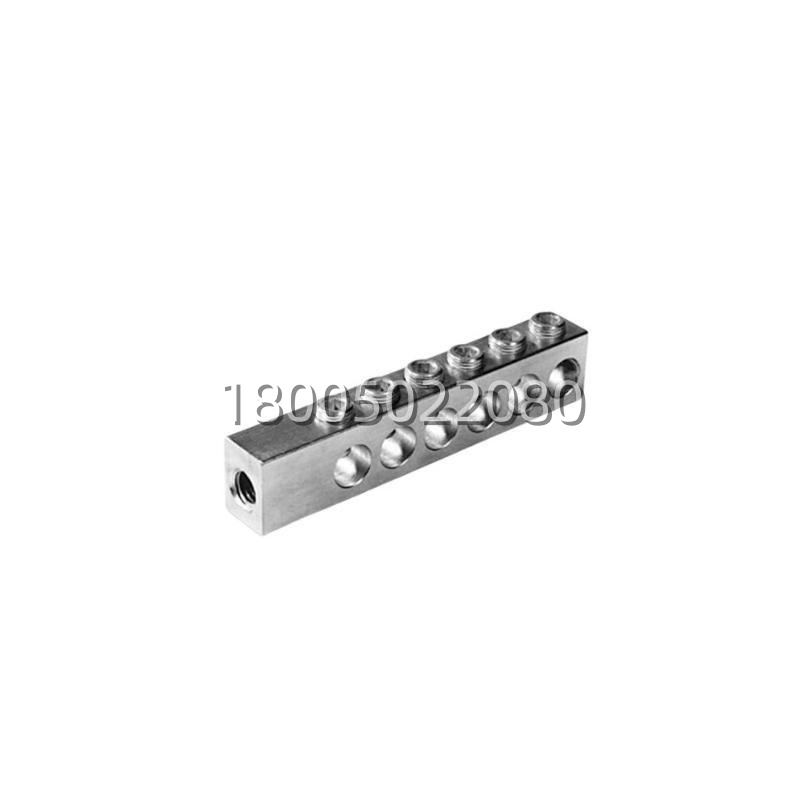

Application Scenarios:In a high-voltage substation control cabinet, current transformers (CTs) and voltage transformers (VTs) feed critical measurement signals to protective relays and meters. The ABB SLC SCREWON TRANS CONN is installed on the DIN rail to terminate these secondary wires. During routine maintenance, technicians need to isolate or short-circuit transformer secondaries safely to prevent hazardous open-circuit voltages or short-circuit currents. The module’s secure screw terminals and clear marking area allow for organized, error-proof wiring, addressing the pain points of signal integrity and operational safety in high-energy electrical systems.Parameter:
| Main Parameters | Value/Description |
|---|---|
| Product Model | ABB SLC SCREWON TRANS CONN |
| Manufacturer | ABB |
| Product Category | Screw-on Transformer Connection Module / Terminal Block |
| Rated Voltage | 250–600V AC (typical) |
| Rated Current | 10–20A (depending on variant) |
| Connection Type | Screw Clamp (Screw-on) |
| Wire Range | Up to 4mm² or #6 AWG (depending on variant) |
| Housing Material | High-grade plastic (PA/PC blend) |
| Contact Material | Brass alloy, tin-plated |
| IP Rating | IP67 (when mounted and assembled) |
| Operating Temperature | -20°C to +60°C (up to +85°C for some variants) |
| Mounting | DIN Rail (TS35) |
| Certifications | CE, UL, CSA (as per specific variant) |
Technical Principles and Innovative Values:The ABB SLC SCREWON TRANS CONN incorporates several key design innovations:
- Innovation Point 1: High-Reliability Screw Clamp Mechanism: Unlike spring-cage terminals, the screw-on design provides a high mechanical clamping force that resists loosening under vibration—a common issue in industrial and transportation applications. The precision-machined brass contacts ensure low contact resistance, minimizing heat generation and voltage drop.
- Innovation Point 2: Integrated Test and Safety Features: Many variants in the SLC series include integrated test points or short-circuiting capabilities. This allows maintenance personnel to safely short-circuit current transformer secondaries or disconnect voltage transformer circuits without exposing live parts, enhancing operator safety during testing and commissioning.
- Innovation Point 3: Environmental Sealing for Harsh Conditions: The IP67 rating is a standout feature, achieved through precise housing design and sealing gaskets. This level of ingress protection allows the module to be used in outdoor cabinets, mining equipment, and marine applications where moisture, dust, and condensation are prevalent, ensuring long-term reliability without external enclosures.
Application Cases and Industry Value:
- Case 1: Steel Plant Power Monitoring: A steel mill upgraded its aging motor control centers (MCCs) with new energy monitoring systems. The ABB SLC SCREWON TRANS CONN modules were used to terminate the secondary wiring from current transformers on the main incomers. The IP67 rating protected the connections from conductive iron dust, while the screw terminals maintained a stable connection despite the constant vibration from heavy machinery. This eliminated intermittent signal loss that had previously caused inaccurate power logging.
- Case 2: Wind Farm Substation Control: In a remote wind farm substation, control cabinets are exposed to wide temperature swings and humidity. The SLC modules were selected for connecting voltage transformer outputs to the revenue metering equipment. Their wide operating temperature range and corrosion-resistant contacts ensured accurate voltage.
