Description
Application Scenarios:
In an automotive paint shop, IRB 5510 robots operate in hazardous environments with flammable solvents. A single fault in the safety circuit could lead to catastrophic collisions or ignition risks. The ABB SIB-01 3HNA006146-001 is deployed as the safety watchdog. It continuously monitors dual-channel safety inputs (e.g., from the operator’s three-position enable switch and the booth’s emergency stop chain). If any discrepancy or fault is detected, it cuts power to the drive units within milliseconds, ensuring the robot stops safely even in the event of a control system failure. This prevents injury and protects millions of dollars in painting equipment from damage.
Parameter:
| Main Parameters | Value/Description |
|---|---|

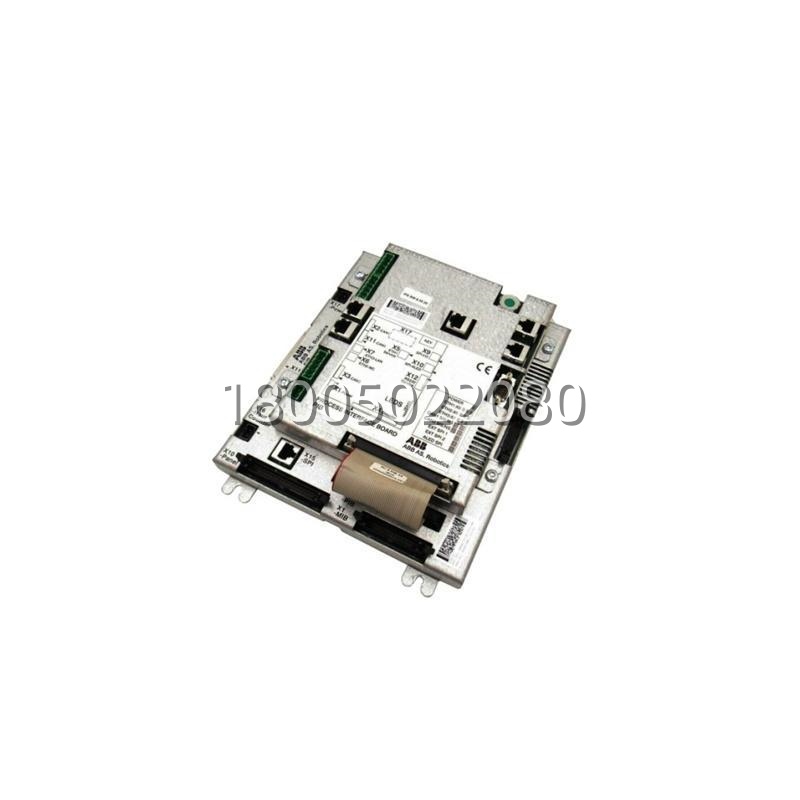

| Product Model | ABB SIB-01 3HNA006146-001 |
| Manufacturer | ABB |
| Product Category | Safety Interface Board (SIB) |
| Compatible Systems | IRC5, IRC5P (e.g., IRB 5500, IRB 5510 paint robots) |
| Safety Standards | SIL 3 (IEC 61508), PL e (ISO 13849-1), Category 4 |
| Input Voltage | 24 V DC (±20%, safety-rated power supply) |
| Input Channels | 8 safety-rated digital inputs (dry contact/NPN/PNP) |
| Output Channels | 4 safety-rated relay outputs (NO/NC, 250VAC/30VDC, 5A) |
| Isolation | 2500 V AC (input-to-output) |
| Response Time | < 10 ms (safety reaction time) |
| Diagnostics | LED indicators for power, status, and fault codes |
| Operating Temp. | -20°C to +60°C (industrial range) |
| Mounting | DIN rail or direct chassis mount (IP20) |
Technical Principles and Innovative Values:
The ABB SIB-01 3HNA006146-001 is engineered around the principle of redundant cross-checking and fail-safe design, which is non-negotiable in modern robotics safety.
- Innovation Point 1: Dual-Channel Fault Detection. Unlike standard I/O boards, the SIB-01 uses two independent processors to monitor all safety inputs. It constantly compares the two channels for discrepancies (e.g., one channel stuck high). If a mismatch or internal fault (like a short circuit) is detected, it forces the outputs to a safe de-energized state, preventing hazardous robot motion.
- Innovation Point 2: High-Noise Immunity for Paint Environments. Paint robot controllers are exposed to significant electrical noise from electrostatic applicators. The board incorporates robust galvanic isolation (2500V) and filtering to prevent electromagnetic interference (EMI) from causing false trips or, worse, masking a real safety fault. This ensures reliability in electrically “dirty” environments.
- Innovation Point 3: Comprehensive Self-Diagnostics. The module performs continuous self-tests on its hardware, including checks for wire breaks, short circuits, and contact welding on the output relays. The clear LED status indicators allow maintenance technicians to quickly pinpoint the source of a safety fault (e.g., “Input 3 Fault”), drastically reducing Mean Time To Repair (MTTR).
Application Cases and Industry Value:
Case: Safety System Upgrade in an Automotive Assembly Plant.A major automotive manufacturer was experiencing intermittent “Safety Stop” faults on its IRB 6640 material handling robots, causing entire assembly lines to halt. Diagnostics revealed that the aging safety interface boards were generating false faults due to degraded noise immunity. The plant replaced the legacy boards with the ABB SIB-01 3HNA006146-001 across 50+ workcells. Post-upgrade, the false trip rate dropped by over 90%. The plant’s engineering team reported that the new board’s diagnostic LEDs made troubleshooting 50% faster, and the dual-channel design provided the necessary redundancy to pass the corporate safety audit for SIL 3 compliance. This upgrade ensured uninterrupted production and enhanced operator safety around heavy payload robots.
