ABB SDCS-PIN-3B Power Board for DCS800 Drive Systems

Description

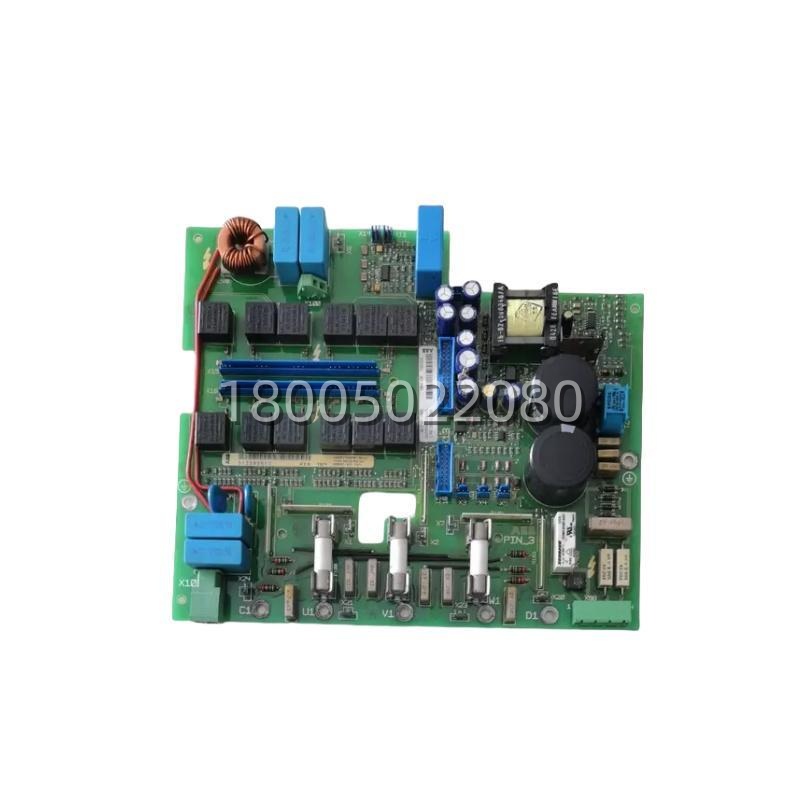

The ABB SDCS-PIN-3B 3ADT315200R1001 is a robust power interface board engineered for ABB’s industrial drive and automation systems. It serves as the central nervous system for power distribution within the control cabinet, converting and routing electrical power to critical control modules, ensuring stable voltage levels and system integrity under demanding industrial conditions.

Application Scenarios

In a large-scale water treatment facility, the control system for high-power pump drives must remain operational 24/7. Voltage sags or electrical noise on the plant’s main AC supply can cause control logic boards to reset unexpectedly, leading to costly pump shutdowns and process interruptions. The ABB SDCS-PIN-3B 3ADT315200R1001 is deployed here as the primary power conditioning and distribution hub for the DCS800 drive cabinet. It takes the incoming AC supply, conditions it, and provides clean, regulated low-voltage DC power to the drive’s brain—the SDCS-CON-1 or SDCS-CON-2 control board—as well as to peripheral I/O modules. Its built-in filtering and wide input voltage tolerance ensure that momentary grid fluctuations do not disrupt the sensitive control electronics, guaranteeing continuous pump operation and protecting against water hammer.

Category: FUJI

Contact Us WhatsApp / Wechat：+8618150087953
Phone：+86 18150087953
Email：sales@cxplcmro.com

Description

Parameter

Main Parameters	Value/Description
Product Model	SDCS-PIN-3B 3ADT315200R1001
Manufacturer	ABB
Product Category	Power Interface / Power Supply Board
Input Voltage	120 – 240 VAC (Wide Range)
Output Voltage	24 VDC (Regulated)
Rated Current	10 A
Power Rating	Approx. 250 W
Mounting	Rack-mounted (SDCS Chassis)
Operating Temp.	-20°C to +60°C
Compatibility	DCS500B, DCS600, DCS800 Series Drives
Key Features	Overvoltage Protection, Filtering

Technical Principles and Innovative Values

The ABB SDCS-PIN-3B 3ADT315200R1001 is more than a simple power supply; it is an integrated power management solution designed for mission-critical drive environments.

Innovation Point 1: Wide Input Voltage Range for Grid Resilience. Unlike standard power supplies that may trip under brownout conditions, the SDCS-PIN-3B is engineered to accept a wide input range (typically 120-240VAC). This allows it to continue operating reliably even during significant voltage sags on the plant floor, preventing nuisance drive faults and protecting against production losses.
Innovation Point 2: High-Current Capacity for Modular Expansion. With a robust 10A output rating, this board provides ample headroom to power not only the main control board but also a full suite of additional I/O and communication modules (such as the SDCS-IOB-23 and SDCS-COM-8x series) within the same chassis. This eliminates the need for external auxiliary power supplies, simplifying cabinet design and reducing points of failure.
Innovation Point 3: Integrated System Diagnostics and Protection. The board incorporates advanced circuitry for overvoltage and short-circuit protection, safeguarding expensive downstream control electronics. Its design prioritizes electrical isolation and noise filtering, ensuring that transients from the power side do not corrupt the sensitive logic signals on the control side, which is critical for the precise regulation of motor torque and speed.
