Description
Technical Specifications

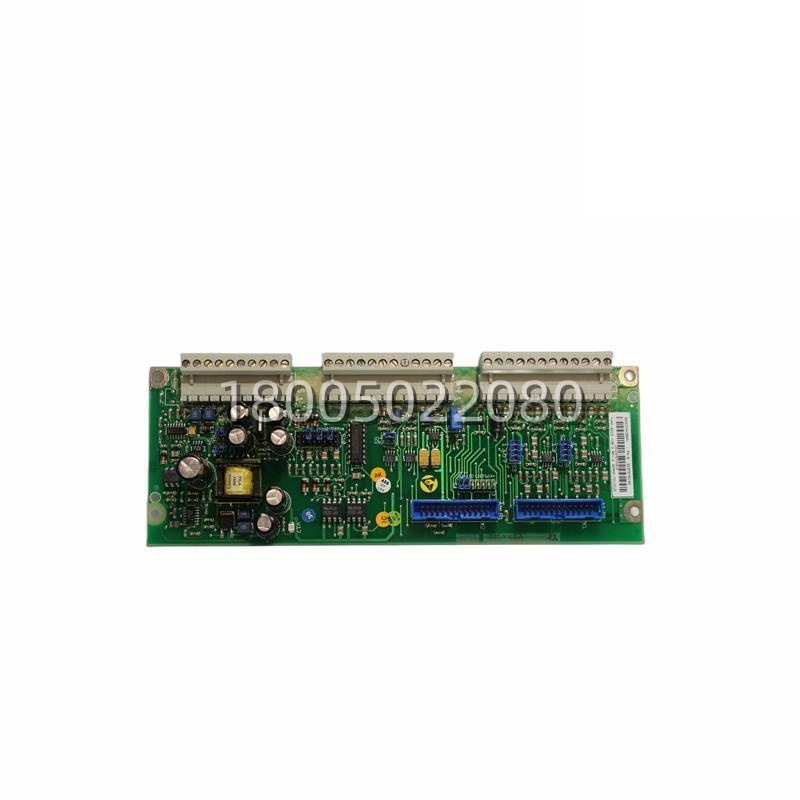

| Parameter | Specification |
|---|---|
| Product Model | SDCS-IOB-3 (Field Kit) |
| Order Code | 3BSE004086R1 / 3BSE004086R0001 |
| Manufacturer | ABB |
| Interface Type | Analog & Encoder I/O Board |
| Analog Inputs | 5 channels (voltage/current, jumper-selectable) |
| Analog Outputs | 3 channels (e.g., speed ref, actual current) |
| Encoder Interface | 1 channel (differential/single-ended, 5/12/24V) |
| Special Functions | PT100/PTC temperature sensor supply |
| Isolation | Galvanic isolation (field to logic) |
| Compatible Drives | DCS800 series, DCS600/DCS500 (interface dependent) |
| Connection | Ribbon cable to SDCS-CON-4, screw terminals for field wiring |
| Dimensions (PCB) | Approx. 240 × 100 × 50 mm (with holder) |
| Weight | ~0.5 kg |
Main Features and Advantages
Comprehensive Signal Conditioning: Unlike basic I/O boards, the SDCS-IOB-3 is specifically engineered for high-noise industrial environments. It features galvanically isolated analog inputs and outputs, which prevent ground loops and protect the main controller from voltage spikes. The board includes a dedicated current source for connecting PT100 or PTC motor temperature sensors, enabling direct thermal monitoring without external modules.High-Precision Feedback Integration: A key advantage is its integrated pulse encoder interface, which supports differential (5V) and single-ended (12/24V) encoders. This allows for precise speed and position feedback critical in rolling mill or crane applications. The analog inputs can be configured via jumpers for different ranges (e.g., ±10V, 0-20mA), providing flexibility to interface with various PLCs and potentiometers.Simplified Field Wiring and Diagnostics: As a “field kit,” this board acts as a centralized wiring hub. All external sensors and control signals terminate here, reducing cable clutter inside the drive cabinet. Status LEDs on the board (where applicable) aid in quick troubleshooting of signal presence, significantly reducing commissioning and maintenance time compared to wiring directly to the main control board.
Application Field
The SDCS-IOB-3 is indispensable in heavy industries requiring precise DC motor control and robust interfacing. In steel and metal rolling mills, it handles speed references from master controllers and encoder feedback for stand synchronization. In mining and material handling (hoists, shovels), its isolated inputs ensure reliable operation despite long cable runs and heavy electromagnetic interference. It is also widely used in cement plants and paper machines for sectional drive control and retrofitting older DCS500/600 systems to modern standards.
