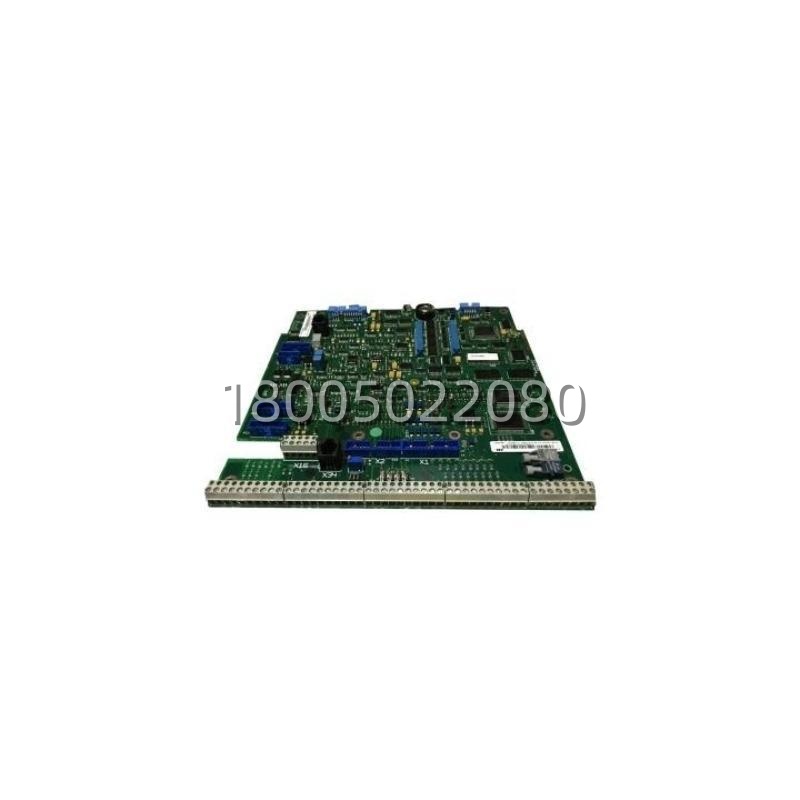

Application Scenarios:In a steel mill’s rolling line, the DC drive control cabinets were plagued by intermittent signal faults due to conductive dust and high humidity, leading to unplanned production stops. The legacy I/O modules lacked sufficient environmental sealing. By upgrading to the ABB SDCS-IOB-23 COAT 3ADT220090R0023, the mill engineers installed a board specifically engineered for such harsh conditions. The conformal coating on the SDCS-IOB-23 COAT prevented contamination-induced short circuits, while its 230V AC rating directly interfaced with the existing contactor coils and limit switches without requiring additional signal converters. This upgrade resolved the chronic reliability issue, demonstrating the board’s value in eliminating noise-related faults and ensuring continuous operation in critical process
industries.Parameter:
| Main Parameters | Value/Description |
|---|---|
| Product Model | ABB SDCS-IOB-23 COAT 3ADT220090R0023 |
| Manufacturer | ABB |
| Product Category | External Isolated Digital I/O Board |
| Compatible System | ABB DCS800 DC Drive System |
| Input Voltage Rating | 230V AC |
| I/O Configuration | 8 Digital I/O Points (Configurable) |
| Isolation | Galvanic Isolation (Optocoupler) |
| Protection Feature | Conformal Coating (COAT) for environmental resistance |
| Communication Interface | RS-485, CANopen (via DCS800 controller) |
| Mounting | External to DCS800 module (DIN rail or screw) |
| Operating Temperature | 0°C to +40°C (standard industrial) |
| Dimensions (approx.) | 200 x 100 x 40 mm |
| Weight | 0.365 kg |
Technical Principles and Innovative Values:
- Innovation Point 1: Conformal Coating for Harsh Environment Survival. Unlike standard PCBs, the ABB SDCS-IOB-23 COAT 3ADT220090R0023 features a specialized protective coating that encapsulates its circuitry. This innovation provides a critical defense layer against humidity, chemical vapors, and conductive dust, which are common causes of failure in pulp & paper, mining, and metal processing plants. This coating significantly extends the module’s Mean Time Between Failures (MTBF) in corrosive conditions.
- Innovation Point 2: High-Voltage AC Direct Interface. The module is specifically engineered to handle 230V AC signals natively. This design eliminates the need for external relays or signal conditioners when connecting to high-voltage contactors, motorized valves, or industrial limit switches, simplifying cabinet design, reducing component count, and improving overall system reliability.
- Innovation Point 3: Flexible Group Isolation. The board utilizes optocoupler-based galvanic isolation, and its inputs can be configured into two separate galvanically isolated groups. This allows engineers to separate “dirty” field signals (e.g., from motor brakes) from “clean” control signals (e.g., from a PLC), preventing ground loops and electrical noise propagation within the control system.Application Scenarios:In a steel mill’s rolling line, the DC drive control cabinets were plagued by intermittent signal faults due to conductive dust and high humidity, leading to unplanned production stops. The legacy I/O modules lacked sufficient environmental sealing. By upgrading to the ABB SDCS-IOB-23 COAT 3ADT220090R0023, the mill engineers installed a board specifically engineered for such harsh conditions. The conformal coating on the SDCS-IOB-23 COAT prevented contamination-induced short circuits, while its 230V AC rating directly interfaced with the existing contactor coils and limit switches without requiring additional signal converters. This upgrade resolved the chronic reliability issue, demonstrating the board’s value in eliminating noise-related faults and ensuring continuous operation in critical process industries.Parameter:
