Description
Application Scenarios:In a steel mill’s rolling line, the main DCS800 DC drive controller requires real-time monitoring of multiple auxiliary contacts (e.g., blower fan status, oil level switches) and control of external contactors for dynamic braking. The onboard I/O points are often insufficient for these extended functions. By integrating the ABB SDCS-IOB-23 board, engineers gain an immediate expansion of isolated digital channels. This setup allows the drive system to directly interface with these field devices without requiring an additional remote PLC rack. The board’s high noise immunity ensures that signals from high-power motor environments remain intact, preventing false trips and maintaining the precise speed control required for the rolling process.Parameter:
| Main Parameters | Value/Description |
|---|---|

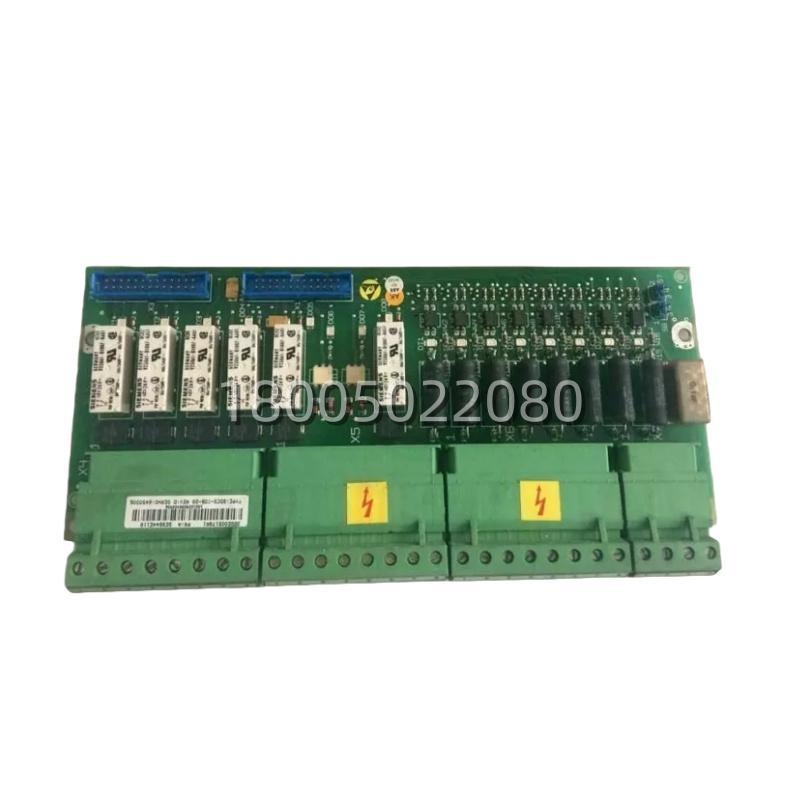

| Product Model | SDCS-IOB-23 |
| Manufacturer | ABB |
| Product Category | Digital Connection Board / I/O Module |
| Part Number | 3BSE005178R1 |
| I/O Configuration | Digital Inputs & Outputs (Typically 8 DI/8 DO or 16 DI) |
| Input Voltage | 24 VDC (Field side) |
| Output Switching | 2 A @ 24 VDC (Typ. per channel) |
| Isolation Voltage | 2500 Vrms (Channel-to-channel/field-to-logic) |
| Communication Interface | PROFIBUS-DP, DeviceNet, or Modbus RTU (Varies by variant) |
| Mounting Method | DIN Rail (TS35) |
| Operating Temperature | -20°C to +60°C / +70°C |
| Protection Rating | IP20 |
| Dimensions (Approx.) | 120 mm x 90 mm x 25 mm |
Technical Principles and Innovative Values:The ABB SDCS-IOB-23 is engineered to bridge the gap between high-power drive logic and low-voltage control signals with maximum integrity.
- Innovation Point 1: Advanced Galvanic Isolation: The board incorporates optocoupler-based isolation on all digital input and output channels. This creates a robust barrier between the drive’s power electronics and the sensitive control circuitry, effectively blocking ground loops and suppressing electromagnetic interference (EMI) from the harsh drive environment, which is a common cause of signal corruption.
- Innovation Point 2: Flexible Protocol Integration: Unlike fixed-function cards, the SDCS-IOB-23 is designed to support multiple industrial network protocols (such as PROFIBUS-DP and DeviceNet) through configurable firmware or hardware variants. This allows it to act as a cost-effective gateway, integrating the DC drive directly into a plant-wide DCS or PLC network without complex intermediary hardware.
- Innovation Point 3: Compact & Ruggedized Design: The module utilizes a high-density, convection-cooled design that minimizes panel space. Its components are selected and tested for high-temperature operation and resistance to vibration, making it suitable for installation directly within the drive cabinet without derating, even adjacent to large power transformers.
Application Cases and Industry Value:A cement plant in Europe was experiencing frequent, unexplained shutdowns on its raw material conveyor drives. The issue was traced to electrical noise corrupting the status signals from belt slip switches and pull-cord safety devices, which were wired over long distances to a central PLC. The solution involved retrofitting ABB SDCS-IOB-23 boards to each DCS800 drive. The digital inputs of the SDCS-IOB-23 were used to locally acquire these critical safety and monitoring signals. Thanks to the board’s superior signal conditioning and isolation, noise immunity was drastically improved. The drives could now make reliable, millisecond-level decisions based on local I/O, reducing the conveyor system’s fault response time by 70% and eliminating the spurious shutdowns that had cost the plant an estimated 30 hours of production monthly.
