Description
Application Scenarios:In a steel mill’s rolling mill drive system, the DCS800 DC drive cabinet required an upgrade to handle additional safety interlocks and motor feedback signals. The existing I/O was saturated, causing engineers to face costly cabinet expansions. By integrating the ABB SDCS-IOB-22 as a distributed I/O node, the mill added 16 digital points directly at the drive location. This eliminated over 100 meters of expensive multi-core cable runs back to the main PLC. The SDCS-IOB-22‘s robust design withstood the high electromagnetic interference of the mill environment, providing reliable status monitoring for the run, stop, and fault signals of auxiliary motors, and enabling faster troubleshooting without false trips.Parameter:
| Main Parameter | Value / Description |
|---|---|

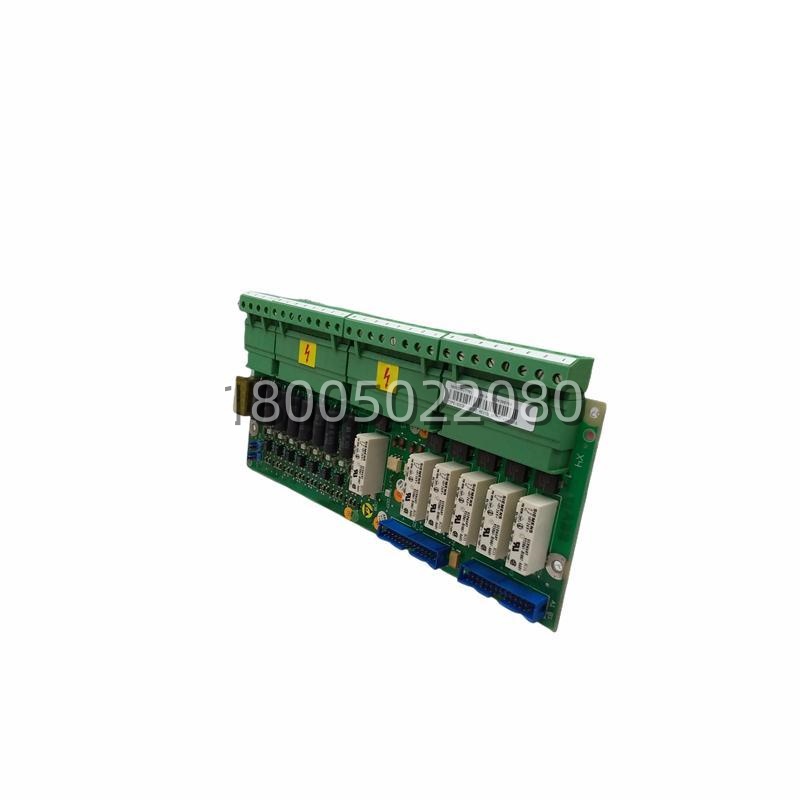

| Product Model | ABB SDCS-IOB-22 (3BSE005177R1) |
| Manufacturer | ABB (Asea Brown Boveri) |
| Product Category | Digital I/O Interface Board |
| I/O Configuration | Typically 8 Digital Inputs / 8 Digital Outputs (or 16 I/O points total) |
| Input Voltage Rating | 115V AC (specific to the -22 variant; other variants exist for 24V/230V) |
| Isolation | Galvanic isolation (Optocoupler) for noise immunity and safety |
| Communication Interface | RS-485 / Modbus RTU (commonly used for connection to drives/controllers) |
| Operating Voltage | 24V DC (for board logic) |
| Operating Temperature | -20°C to +60°C (industrial grade) |
| Mounting | DIN Rail or Panel Mount (via adapter) |
| Compatibility | ABB DCS800 series drives, System 800xA, Advant OCS |
| Protection Rating | IP20 (for installation inside enclosures) |
| Certifications | CE, RoHS, Industrial Automation Standards |
Technical Principles and Innovative Values:
- Innovation Point 1: High-Noise Immunity Design for Drive Environments. Unlike standard PLC I/O cards, the SDCS-IOB-22 is specifically hardened for installation inside or adjacent to high-power drive cabinets (like DCS800). Its robust galvanic isolation and filtered input circuits prevent electromagnetic interference (EMI) from motor inverters and contactors from causing false signal readings or processor faults, ensuring data integrity in the noisiest electrical environments.
- Innovation Point 2: Flexible I/O Grouping and Configuration. The board’s I/O channels are designed to be grouped into electrically isolated sections. This allows engineers to wire signals from different voltage domains or safety circuits (e.g., 24V DC control and 115V AC power circuits) on the same board without creating ground loops or cross-talk, reducing the need for external signal converters and simplifying cabinet layout.
- Innovation Point 3: Seamless Drive System Integration. The ABB SDCS-IOB-22 uses a standardized interface (often via SDCS-CON connectors) that plugs directly into the ABB drive control ecosystem. This provides a pre-engineered solution for adding discrete logic (e.g., start/stop, jog, fault reset) to drive systems without requiring a separate remote I/O rack, lowering the total cost of ownership for drive modernization projects.
Application Cases and Industry Value:Case 1: Cement Plant Kiln Drive Upgrade. A cement plant was retrofitting its legacy kiln main drive system with an ABB DCS800 drive. The project required adding local I/O for temperature switches, pressure alarms, and lubrication pump controls. The ABB SDCS-IOB-22 was chosen due to its direct compatibility with the drive’s control architecture. It provided the necessary 115V AC digital inputs for the existing limit switches and relay outputs for pump control. The installation reduced integration time by 40% compared to a third-party I/O solution and improved diagnostic visibility by allowing all drive and I/O status to be viewed from the same operator station.Case 2: Water Treatment Plant Pump Control. A municipal water facility needed to decentralize control logic for its high-lift pump stations to improve reliability. Each pump skid was equipped with an SDCS-IOB-22 board to handle local valve position feedback and pump run-status. The boards communicated via Modbus RTU to a central SCADA system. The high isolation rating of the SDCS-IOB-22 proved critical in preventing ground potential rise issues in the wet, corrosive environment, eliminating communication dropouts that had plagued the previous non-isolated I/O system.
