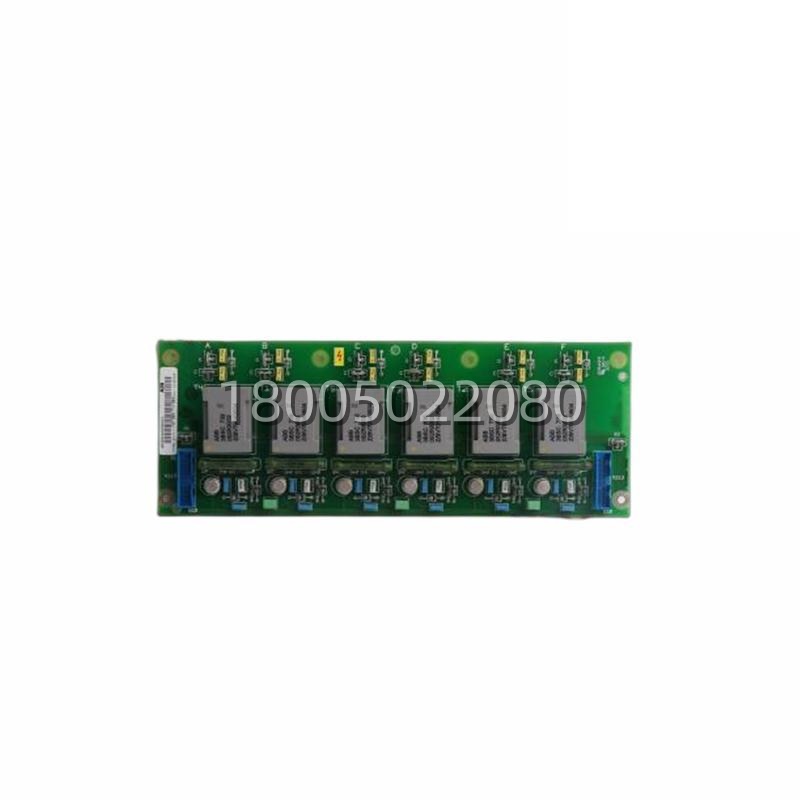

ABB SDCS-FEX-425-INT (3ADT209022R0001) Precision Field Control Module

Product Overview

The ABB SDCS-FEX-425-INT (also known as FEX-425-INT) is an internal three-phase field exciter module designed for integration into ABB DCS800 DC drive cabinets (typically size D5). It functions as the dedicated power supply for the DC motor’s field winding, controlled directly by the drive’s main governor (SDCS-CON-4) via the high-speed DCSLink (CAN-based) serial communication. Unlike external field cabinets, this module is mounted inside the armature converter, saving space and simplifying wiring. It is engineered for demanding industrial applications requiring precise control of motor flux, such as metals processing, mining hoists, and large paper machines, where reliable excitation is critical for speed regulation and torque control.

Category: FUJI

Contact Us WhatsApp / Wechat：+8618150087953
Phone：+86 18150087953
Email：sales@cxplcmro.com

Description

Technical Specifications

Parameter Name	Parameter Value
Product Model	SDCS-FEX-425-INT (often labeled as FEX-425-INT)
Manufacturer	ABB
Product Type	Internal 3-Phase Field Exciter / Field Supply Unit
Compatible Series	DCS800 DC Drives (D5 frame size with plus code +S164)
AC Supply Voltage	3-phase, 400 V AC (max 500 V AC), 50/60 Hz
DC Output Current	Approx. 0.3 – 25 A (dependent on external line reactor)
Control & Aux Power	24 V DC (supplied via SDCS-DSL-4 board, <200 mA)
Communication	DCSLink (CAN-based, via SDCS-DSL-4), RS-232 (for firmware)
Mounting	Internal to DCS800 D5 converter module
Key Ordering Code	3ADT209022R0001 (common reference)
External Component	Requires external line reactor (not included)

Main Features and Advantages

Integrated Cabinet Design: The SDCS-FEX-425-INT is designed to be mounted directly inside the DCS800 drive, eliminating the need for a separate external field cubicle. This “all-in-one” approach reduces footprint, minimizes interconnecting cables, and simplifies the overall drive system architecture, which is particularly beneficial in space-constrained industrial plants.High-Performance DCSLink Control: The module is fully controlled by the armature converter’s governor via the DCSLink bus. This digital link ensures fast and precise regulation of field current for optimal motor performance, supporting features like field weakening for extended speed range and fast de-excitation during shutdowns. The node address is easily set via onboard rotary switches (S800/S801).Robust Three-Phase Power: Utilizing a three-phase input (400V typical), the SDCS-FEX-425-INT provides a smoother DC field output with less ripple compared to single-phase exciters. This results in reduced motor heating and more stable magnetic field generation, which is essential for maintaining precise speed control in heavy-duty applications like rolling mills.
