ABB SDCS-FEX-2A Field Exciter Module for DCS500 and DCS800 DC Drives

Product Overview

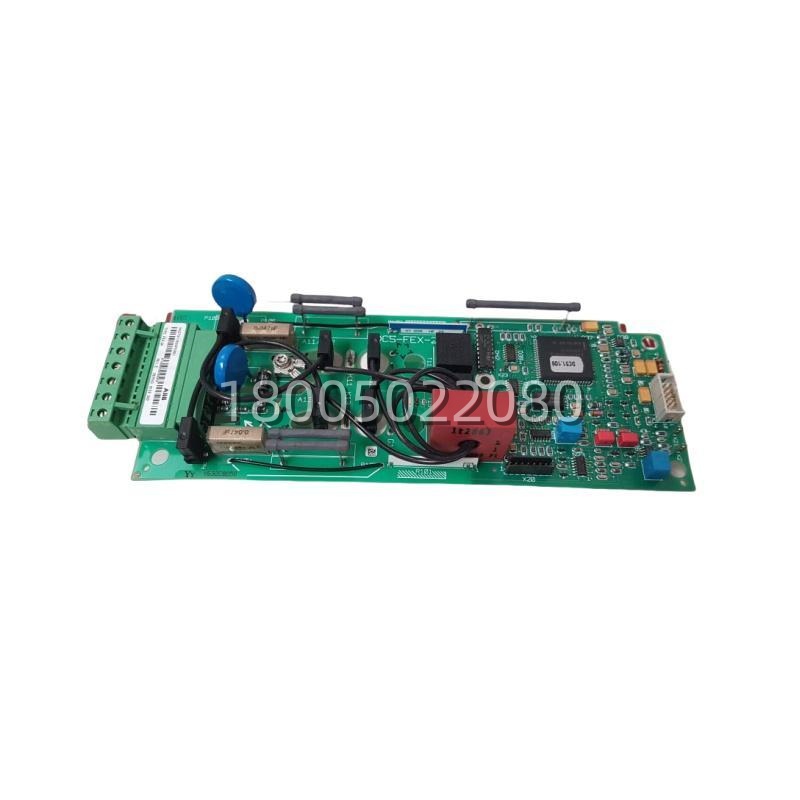

The ABB SDCS-FEX-2A (Part Number 3ADT311500R0001) is a specialized field exciter module engineered specifically for ABB’s SDCS (Static DC Drive System) platform, including the DCS500 and DCS800 series DC drives. Unlike general-purpose I/O boards, the ABB SDCS-FEX-2A is dedicated exclusively to controlling the excitation current supplied to the field winding of a DC motor. It acts as a precision power interface that converts control signals from the main processor board (such as the SDCS-CON-2 or CON-2A) into a regulated DC current, effectively establishing and modulating the magnetic field required for motor operation. This module is crucial for applications requiring precise speed regulation, constant torque output, and field weakening capabilities for extended speed ranges.Functionally, the ABB SDCS-FEX-2A operates as a single-quadrant, half-controlled bridge rectifier. It accepts a three-phase AC input voltage ranging from 110V to 500V and delivers a controllable DC output current up to 16 Amperes. The module integrates a microcontroller (commonly the 80C198) that executes digital current control loops, utilizing PI (Proportional-Integral) algorithms to ensure high accuracy and stability. Communication between the ABB SDCS-FEX-2A and the drive’s main control board is typically handled via an internal RS-485 serial link or a flat cable connection, allowing for real-time setpoint adjustments and status reporting. This design ensures that the excitation current closely follows the reference value provided by the speed controller, compensating for supply voltage fluctuations and changes in field winding resistance due to temperature variations.In the hierarchy of a DC drive cabinet, the ABB SDCS-FEX-2A is usually mounted inside the armature converter module or on a dedicated DIN rail near the power section. It works in tandem with the power interface board and the control processor to form a complete drive regulation system. Its robust design, featuring diode-thyristor power modules and integrated snubber circuits, allows it to withstand the electrical noise and transient voltages typical in heavy industrial environments. For maintenance engineers and system integrators, the ABB SDCS-FEX-2A represents a critical spare part that ensures the continued reliability of DC motor-driven processes, from heavy rolling mills to large conveyor systems.

Category: FUJI

Contact Us WhatsApp / Wechat：+8618150087953
Phone：+86 18150087953
Email：sales@cxplcmro.com

Description

Technical Specifications

Product Model	SDCS-FEX-2A
Manufacturer	ABB
Part Number	3ADT311500R0001
Product Type	Field Exciter Module
Compatible Drives	ABB DCS500, DCS800 Series DC Drives
Input Voltage	3-phase AC, 110 V to 500 V
Output Current	16 A DC (Continuous)
Control Type	Single Quadrant (Half-Controlled Bridge)
Control Accuracy	0.1% (Field Current Control)
Communication Interface	Internal RS-485 / Flat Cable (to SDCS-CON-x)
Microcontroller	80C198 or equivalent
Operating Temperature	0 °C to +55 °C
Protection Class	IP20 (when installed in cabinet)

Main Features and Advantages

The ABB SDCS-FEX-2A offers a highly specialized set of features tailored for demanding DC drive applications. Its primary advantage is the fully digital control of the field current. By utilizing a microcontroller-based PI control structure, the ABB SDCS-FEX-2A achieves a control accuracy of approximately 0.1%, ensuring that the DC motor’s magnetic field remains stable even under fluctuating load conditions or input power variations. This precision is vital for processes where torque consistency is critical, such as in paper machine sections or wire drawing lines.Integration and compatibility are key strengths of the ABB SDCS-FEX-2A. It is designed to slot seamlessly into the ABB DCS500 and DCS800 architectures. The module automatically adapts to the nominal field current setting of the motor; for instance, if the motor requires less than 3A, the ABB SDCS-FEX-2A switches to a lower measurement range to maintain high resolution in current feedback. This auto-scaling feature simplifies commissioning and ensures optimal performance across a wide range of motor sizes without requiring hardware changes.The power stage of the ABB SDCS-FEX-2A is built using robust diode-thyristor modules configured as a half-controlled single-phase rectifier (though fed by 3-phase input via selection). This configuration provides reliable power conversion with inherent protection features. The board includes a Metal Oxide Varistor (MOV) on the AC input to suppress voltage spikes and another on the DC output to protect against surges generated by the inductive field winding of the motor. Furthermore, the ABB SDCS-FEX-2A incorporates a dedicated current transformer for actual value measurement (Iact), which is then rectified and converted to a voltage signal for the microcontroller, ensuring fast and accurate feedback for the control loop.Diagnostic capabilities are embedded within the ABB SDCS-FEX-2A to facilitate maintenance. The communication link allows the main drive controller to monitor the status of the exciter, including fault conditions such as field loss, overcurrent, or thermal overload (if a sensor is connected). Test terminals are also provided on the board to measure the burden voltage corresponding to the actual field current, allowing technicians to verify output levels with a standard multimeter. This combination of precise control, adaptive scaling, robust protection, and easy diagnosability makes the ABB SDCS-FEX-2A an indispensable component for maintaining the performance and reliability of ABB DC drive systems.
