ABB SDCS-FEX-2A 3ADT311500R1 DC Drive Field Exciter Board

Product Overview

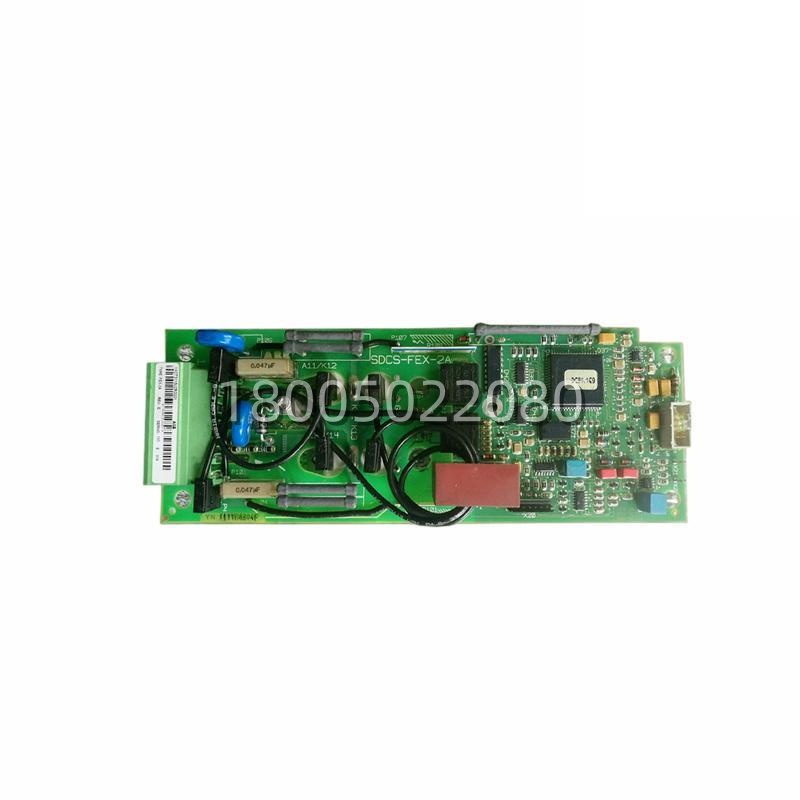

The ABB SDCS-FEX-2A 3ADT311500R1 is a specialized field exciter board engineered as a critical component within ABB’s DCS500 and DCS600 series of DC drive systems. Acting as the dedicated power and control interface for the motor field winding, this module regulates the DC field current with high precision to ensure optimal torque and speed characteristics of the connected DC motor. Unlike standard power supplies, the ABB SDCS-FEX-2A 3ADT311500R1 utilizes a digitally controlled, half-bridge thyristor configuration to convert incoming AC voltage into a variable DC output, tightly managed by the drive’s main control board via an internal communication link.This module combines a robust power section with an intelligent control circuit on a single printed circuit board, designed for installation inside the armature converter module, typically positioned adjacent to the power supply board (SDCS-POW-1). The ABB SDCS-FEX-2A 3ADT311500R1 receives control signals and voltage levels from the main processor (such as the SDCS-CON-2) through a flat cable interface, processes the information via its integrated microcontroller, and generates the precise firing pulses required for the power semiconductors. This architecture ensures that the field current closely follows the reference commands, allowing for advanced control strategies such as flux optimization and field weakening, which are essential for achieving high rotational speeds beyond the motor’s base rating.In an industrial automation context, the ABB SDCS-FEX-2A 3ADT311500R1 serves as the linchpin for applications demanding high dynamic response and reliable operation under heavy loads. Its design accommodates a wide range of field currents, automatically selecting the optimal measurement range (from 3A up to 16A) to maintain high resolution and accuracy regardless of the motor size. By managing the excitation separately from the armature power, it provides the granularity needed for complex drive tasks in rolling mills, paper machines, and mine hoists, ultimately enhancing the overall efficiency and stability of the production line.

Category: FUJI

Contact Us WhatsApp / Wechat：+8618150087953
Phone：+86 18150087953
Email：sales@cxplcmro.com

Description

Technical Specifications

Main Features and Advantages

The ABB SDCS-FEX-2A 3ADT311500R1 offers a suite of features that ensure superior performance in demanding DC drive applications. At its core is the fully digital control system managed by an integrated microcontroller. This allows the board to execute complex current control algorithms with PI (Proportional-Integral) structure, ensuring that the actual field current matches the setpoint with minimal deviation. This digital architecture provides consistent performance that is not subject to the drift often associated with older analog exciter designs, making the ABB SDCS-FEX-2A 3ADT311500R1 a reliable choice for precision motion control.A standout feature is the automatic current range selection. The board is capable of handling field currents up to 16 Amperes, but for smaller motors requiring lower field currents (e.g., 3A to 9A), the ABB SDCS-FEX-2A 3ADT311500R1 automatically switches to a lower measurement range. This adaptability optimizes the resolution of the current transformer and burden resistors, meaning that whether you are driving a small auxiliary motor or a massive main drive motor, the excitation control remains equally precise. This eliminates the need for different hardware variants for different motor sizes within the supported range.The power section of the ABB SDCS-FEX-2A 3ADT311500R1 is configured as a half-controlled single-phase bridge using diode-thyristor modules. This design is both efficient and cost-effective, providing the necessary controllability for the field winding while incorporating robust protection mechanisms. The board includes Metal Oxide Varistors (MOVs) on both the AC input and DC output sides to suppress voltage transients and surges, protecting the module and the motor field winding from electrical stress. Furthermore, the actual current measurement via an AC transformer allows for true RMS current sensing, which is then converted and scaled (IACT signal) for monitoring and control verification.Integration and diagnostics are also key advantages. The ABB SDCS-FEX-2A 3ADT311500R1 communicates seamlessly with the main converter controller, receiving parameters and sending status updates or fault codes. This integration means that excitation faults, such as field loss or overcurrent, are immediately recognized by the drive system, triggering appropriate protective shutdowns or alarms. The fixed node addressing and standardized link simplify installation and ensure that the module slots directly into the existing drive architecture without complex configuration, reducing commissioning time and the potential for wiring errors.
