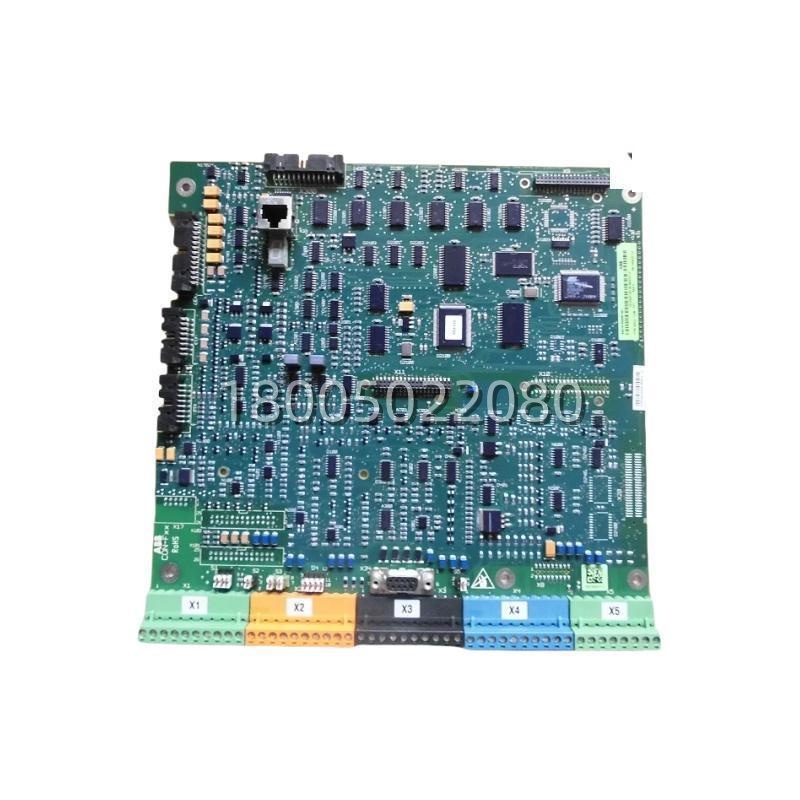

ABB SDCS-CON-F01 Governor Control Board for DCS550/600 DC Drive Systems

Product Overview

The ABB SDCS-CON-F01 is a high-performance governor control board that serves as the central processing unit (CPU) for ABB’s DCS550 and DCS600 series DC drive systems. Acting as the intelligent core of the drive, this module executes complex control algorithms to regulate motor speed, torque, and current with exceptional precision. Designed for industrial durability, the ABB SDCS-CON-F01 features built-in flash memory for firmware and parameter storage, ensuring that critical operational settings are retained even during power loss. It interfaces seamlessly with power interface boards and external control panels via flat cable connections, providing a unified control platform for demanding automation tasks.As a critical component in ABB’s drive control system (DCS) family, the ABB SDCS-CON-F01 enhances system reliability with an improved internal watchdog function that monitors board health and initiates safe shutdown procedures in case of detected malfunctions. This makes it an essential spare part for maintaining and upgrading existing DC drive installations in metals, mining, and material handling industries.

Category: FUJI

Contact Us WhatsApp / Wechat：+8618150087953
Phone：+86 18150087953
Email：sales@cxplcmro.com

Description

Technical Specifications

Parameter Name	Parameter Value
Product Model	SDCS-CON-F01
Manufacturer	ABB
Product Type	Governor Control Board / Main Control Unit
Compatible Drive Series	DCS550, DCS600
Input Voltage	24 V DC (via drive backplane)
Logic Voltage Levels	3.3 V / 5 V DC
Power Consumption	10 – 25 W (typical)
Operating Temperature	0 °C to +60 °C (industrial standard)
Storage Temperature	-40 °C to +85 °C
Communication Interfaces	RS-485, Fiber Optic (system internal)
Memory Type	Flash PROM (non-volatile)
Mounting Method	Internal module (on electronic tray)
Dimensions (approx.)	24.6 x 24.2 x 2 cm
Weight	0.35 – 0.4 kg
Protection Rating	IP20 (for enclosure installation)

Main Features and Advantages

Advanced Control and Processing: The ABB SDCS-CON-F01 is engineered to handle real-time control tasks for DC motor drives. It processes feedback from tachometers or encoders, executes PID control loops, and manages thyristor firing sequences to maintain precise speed regulation even under varying load conditions. Its upgraded firmware and processing capabilities compared to earlier versions (like SDCS-CON-F) provide faster response times and improved stability.Robust Diagnostics and Safety: A key advantage of the ABB SDCS-CON-F01 is its comprehensive diagnostic and protection system. The onboard watchdog continuously monitors the microprocessor and firmware status. If a fault is detected, it automatically resets thyristor firing and forces digital outputs to a safe state, preventing uncontrolled motor operation and protecting both the drive and connected machinery.Seamless System Integration: This control board is designed for easy integration into the DCS drive architecture. It connects directly to the SDCS-PIN-F power interface board and supports configuration via ABB’s DriveWindow software or a local control panel. The use of flash memory allows for easy firmware updates and secure parameter storage, simplifying commissioning and long-term maintenance.
