ABB SDCS-CON-4 3ADT313900R1501 Main Control Board

Product Overview

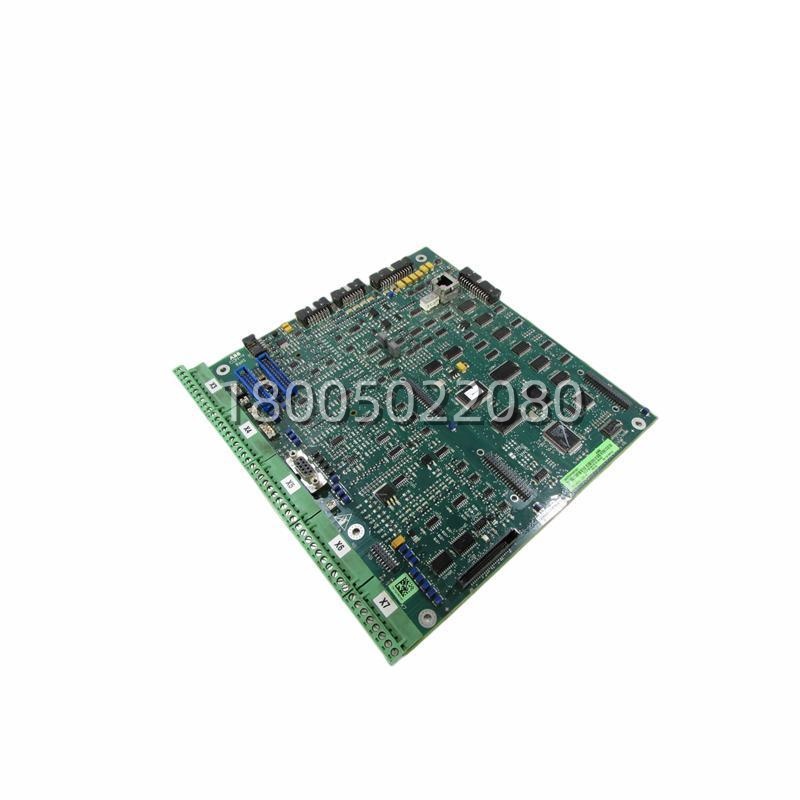

The ABB SDCS-CON-4 (Order Code: 3ADT313900R1501) is the central processing and logic control board for ABB’s DCS500 and DCS600 series of industrial DC drive systems. Functioning as the intelligent brain of the drive cabinet, this module is responsible for executing critical real-time control algorithms, including precise speed and torque regulation, thyristor bridge firing angle calculation, and comprehensive system diagnostics. The ABB SDCS-CON-4 integrates a high-performance microprocessor that processes feedback signals from encoders and tachogenerators to maintain stable motor operation under varying load conditions. It features a modular architecture with dedicated slots for plug-in expansion modules, such as communication cards (SDCS-COM-8, SDCS-AMC) and I/O boards, allowing for flexible customization to meet specific application requirements. Designed for harsh industrial environments, the ABB SDCS-CON-4 ensures reliable performance in demanding sectors like metals processing, mining, and heavy machinery, where uptime and control accuracy are paramount.

Category: FUJI

Contact Us WhatsApp / Wechat：+8618150087953
Phone：+86 18150087953
Email：sales@cxplcmro.com

Description

Technical Specifications

Parameter Name	Parameter Value
Product Model	SDCS-CON-4
Manufacturer Order Code	3ADT313900R1501
Manufacturer	ABB
Product Type	Main Control Board / Drive Logic Board
Compatible Drive Series	DCS500, DCS600
Microprocessor	16-bit / 32-bit High-Speed Industrial Processor
Power Supply	24 VDC (typically via SDCS-POW-1 power board)
Digital I/O Capacity	Supports up to 16 Digital Inputs / 16 Digital Outputs (configurable)
Analog I/O Capacity	Supports up to 4 Analog Inputs / 4 Analog Outputs (±10V, 0/4-20mA)
Communication Expansion	Slot for SDCS-COM-8, SDCS-AMC, or other interface boards
Encoder Interface	HTL / TTL incremental encoder (A, B, Z channels)
Operating Temperature	-20°C to +55°C (industrial grade)
Protection Class	IP20 (board-level, requires enclosure)

Main Features and Advantages

Centralized Drive Intelligence: The ABB SDCS-CON-4 consolidates all core control functions into a single, robust module. It manages the six-pulse or twelve-pulse thyristor firing sequence with high resolution, ensuring smooth motor torque and minimal ripple. The onboard processor executes closed-loop PID control for speed and current, providing dynamic response to load changes. This centralized architecture simplifies the drive’s internal wiring and enhances system reliability by reducing interconnection points.Modular Expandability: A key advantage of the ABB SDCS-CON-4 is its flexible expansion capability. The board includes dedicated connectors for adding specialized daughter cards. This allows engineers to tailor the drive’s functionality by adding fieldbus communication protocols (e.g., Profibus, DeviceNet) or additional analog/digital I/O without replacing the entire control unit. This modularity future-proofs the drive system and reduces spare parts inventory.Robust Diagnostics and Protection: The ABB SDCS-CON-4 is equipped with advanced self-diagnostic routines that continuously monitor the drive’s health. It can detect faults such as overcurrent, overtemperature, feedback signal loss, and internal processor errors. Status LEDs and accessible fault codes facilitate rapid troubleshooting, minimizing downtime during critical production operations.
